CYLINDER

GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

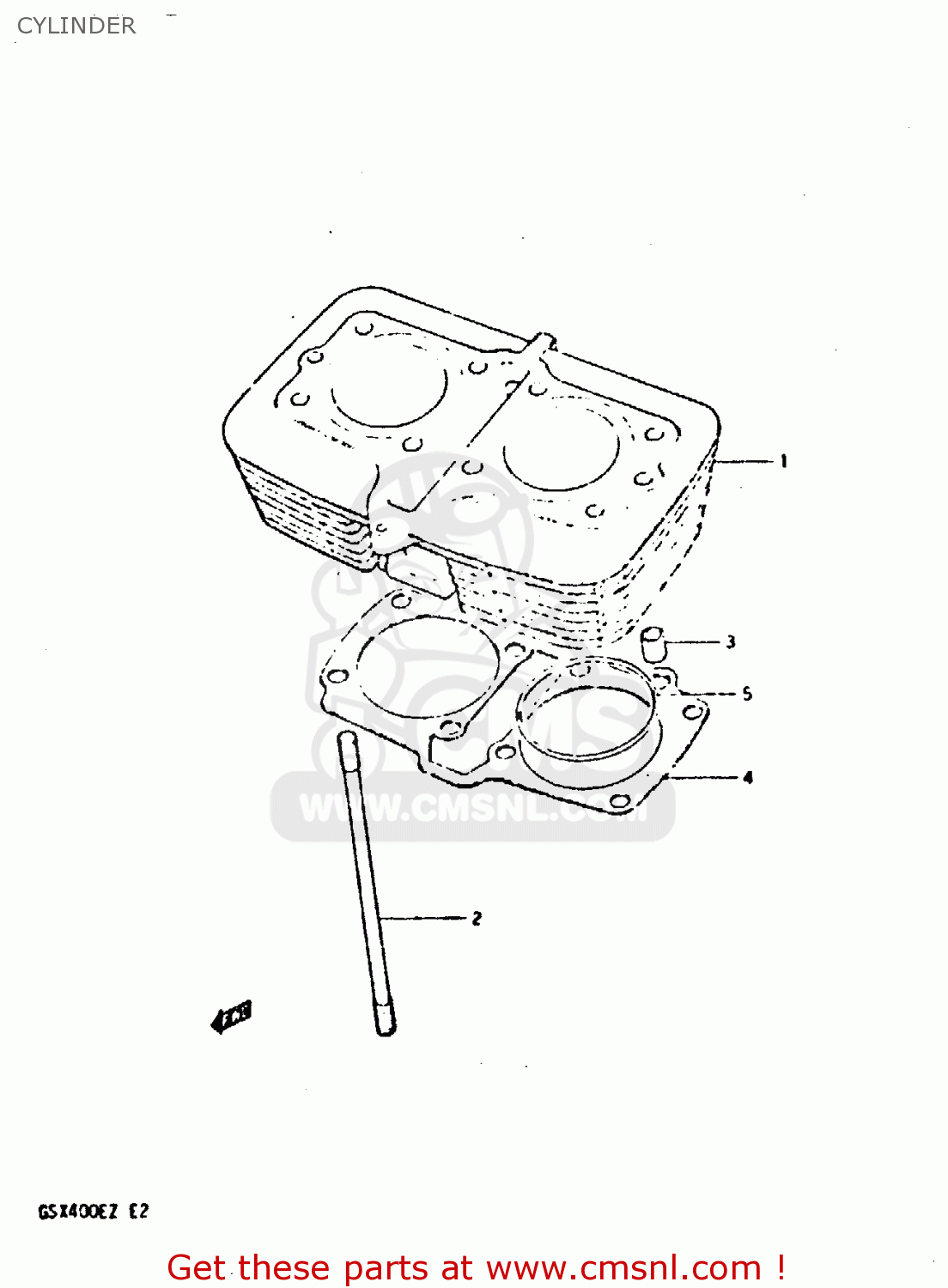

Cylinder diagram GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

CYLINDER GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

CYLINDER GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

prices are in EUR

ref

part #

description

quantity

1

1121044200
ref: 1

CYLINDER

€ 515.50

2

0910810028
ref: 2

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4-1

1124144100
ref: 4-1

GASKET,CYLINDER (MCA)

€ 12.50

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50
