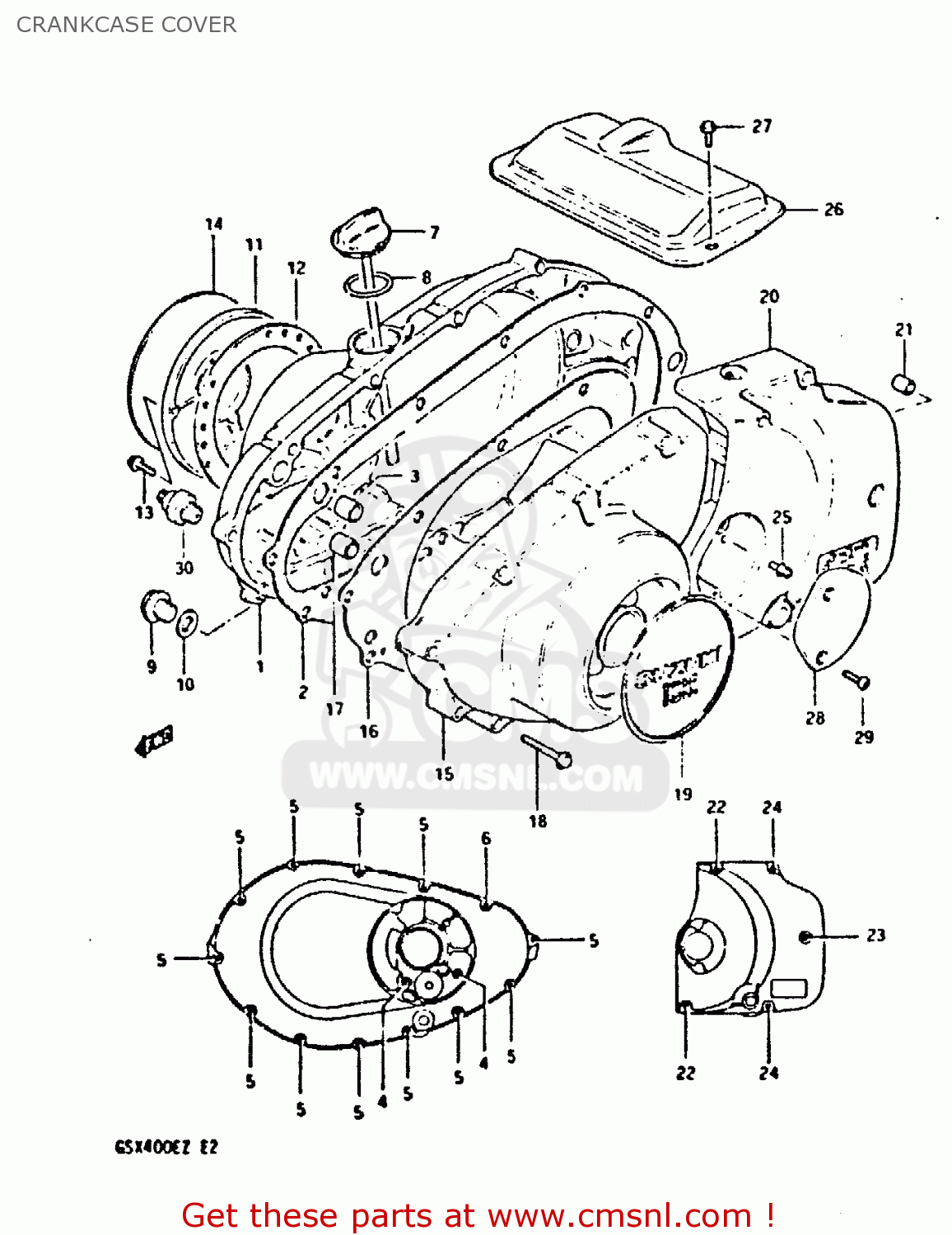

CRANKCASE COVER

ref

part #

description

quantity

1

1134144101
ref: 1

COVER,CLUTCH

€ 119.50

2

1148244100
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 17.50

3

0920613001
ref: 3

PIN

€ 2.50

4

0154706558
ref: 4

BOLT (6X55)

€ 2.50

5

0154706358
ref: 5

BOLT (6X35)

€ 2.50

6

0154706258
ref: 6

BOLT

€ 2.50

7

1197044100
ref: 7

GAUGE,OIL LEVEL

€ 17.50

8

0928027002
ref: 8

O-RING

€ 3.00

9

0924714012
ref: 9

PLUG (14X12)

€ 3.50

10

0916814004
ref: 10

GASKET(14X19.2X2) (NAS)

€ 2.50

11

1138144101
ref: 11

COVER,CONTACT BREAKER

€ 42.00

12

1149144100
ref: 12

GASKET,CONTACT BREAKER COVER (NAS)

€ 4.50

13

0154405168
ref: 13

BOLT 5X16

€ 2.00

14

6823549500
ref: 14

EMBLEM

€ 21.50

15

1135144102
ref: 15

COVER,MAGNETO

€ 45.00

16

1148344100
ref: 16

GASKET,MAGNETO COVER (MCA)

€ 12.50

17

0920613001
ref: 17

PIN

€ 2.50

18

0154706358
ref: 18

BOLT (6X35)

€ 2.50

19

6823549500
ref: 19

EMBLEM

€ 21.50

20

1136144101
ref: 20

COVER,ENGINE SPROCKET

€ 86.00

21

0421109129
ref: 21

PIN

€ 2.00

22

0154706658
ref: 22

BOLT (6X65)

€ 2.00

23

0154706508
ref: 23

BOLT (6X50)

€ 2.50

24

0154706408
ref: 24

BOLT (6X40)

€ 2.50

25

0835111009
ref: 25

NIPPLE

€ 32.00

26

1138244100
ref: 26

COVER,STARTER MOTOR

€ 20.50

27

0154405088
ref: 27

BOLT (5*8)

€ 2.00

28

1138744100
ref: 28

CAP,CLUTCH RELEASE ADJUST

€ 10.00

29

0213205127
ref: 29

SCREW 5X12

€ 2.50

30

3782033200
ref: 30

SWITCH ASSEMBLY

€ 29.00
