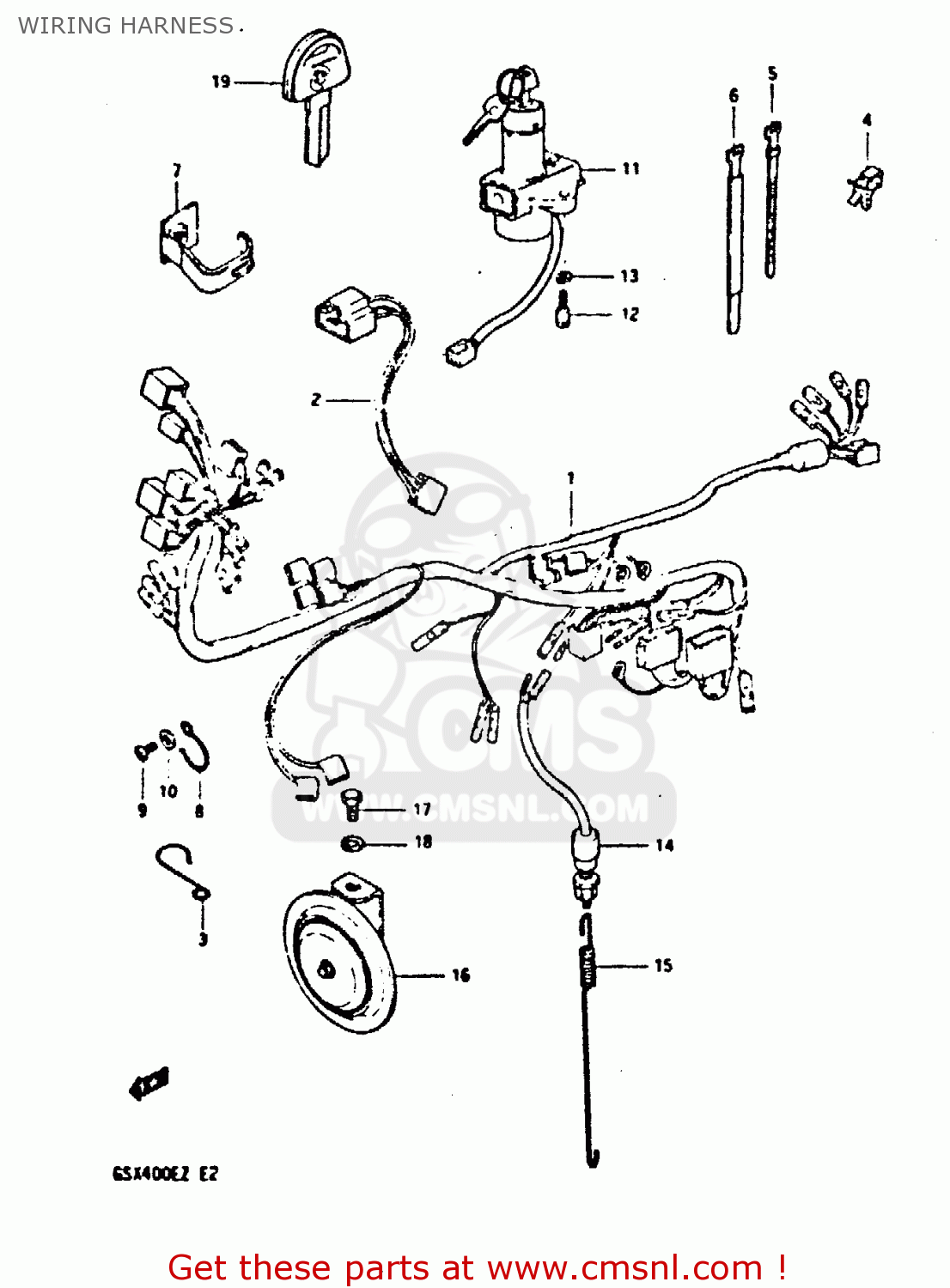

WIRING HARNESS

ref

part #

description

quantity

1

3661011500
ref: 1

WIRING HARNESS

€ 150.50

2

3685234000
ref: 2

LEAD WIRE,HEADLAMP

€ 13.00

3

3661944400
ref: 3

CLIP,WIRING HARNESS

€ 0.00

4

0940305305
ref: 4

CLIP

€ 3.00

5

0940712402
ref: 5

CLAMP(L:120)

€ 3.00

6

0940718301
ref: 6

CLAMP

€ 6.00

7

3665033201
ref: 7

CLAMP,WIRING HARNESS

€ 0.00

8

3661944000
ref: 8

GUIDE,WIRING HARNESS

€ 2.50

9

0211206128
ref: 9

SCREW 6X12

€ 2.00

10

0832211068
ref: 10

WASHER 6MM

€ 2.00

11-1

3710049201
ref: 11-1

SWITCH ASSY,IGNITION

€ 141.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

3715247010
ref: 12

BOLT

€ 3.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

3774004571
ref: 14

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

15

0944306035
ref: 15

SPRING

€ 4.50

16-1

3850044410
ref: 16-1

HORN ASSEMBLY

€ 45.00

16-2

NOTUSED
ref: 16-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0110708128
ref: 17

BOLT 8X12

€ 2.50

18

0832211088
ref: 18

WASHER

€ 2.00

19

3714647010
ref: 19

KEY,BLANK

€ 15.00
