CARBURETOR
GSX450L 1983 (D) GENERAL EXPORT (E01)

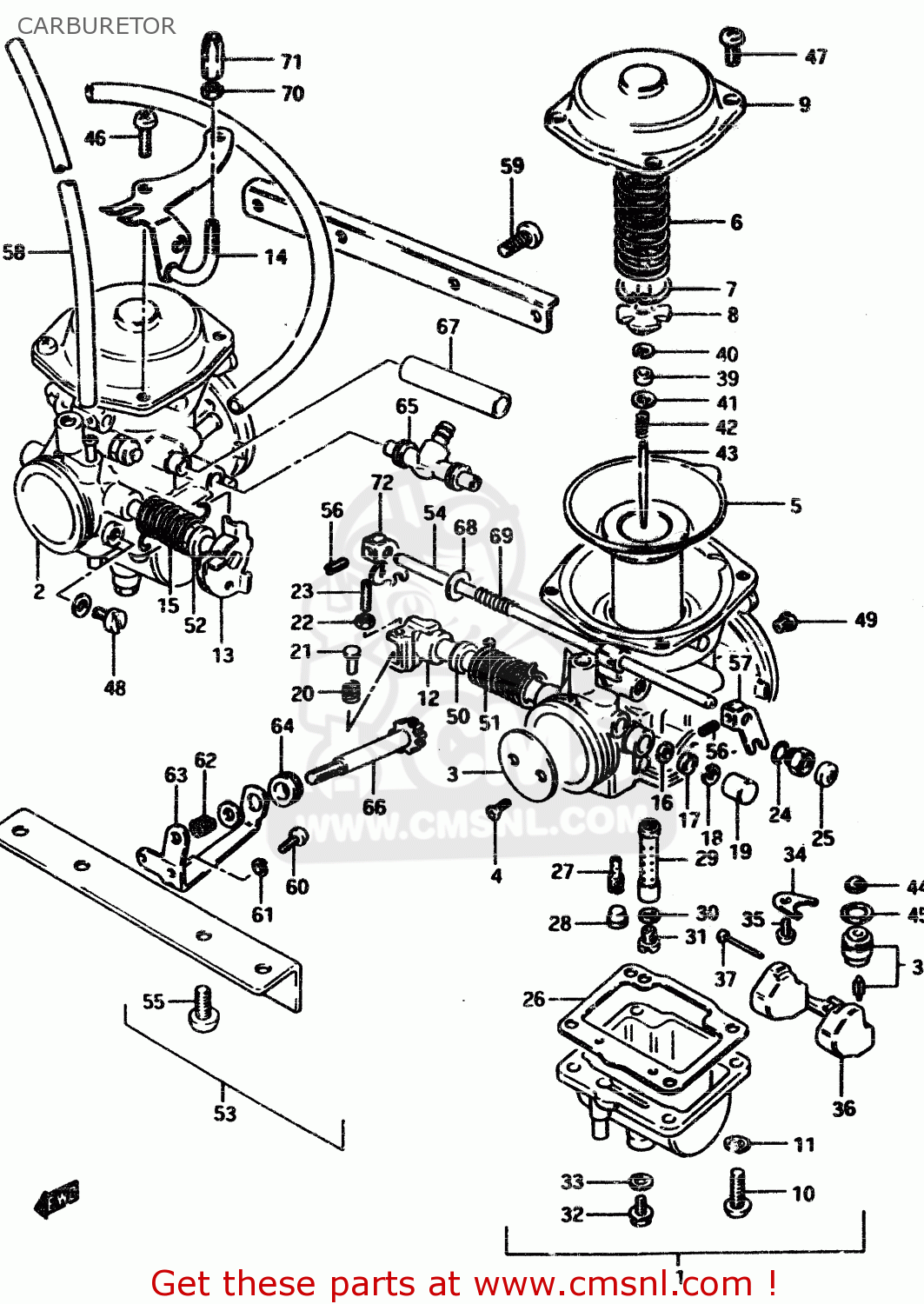

Carburetor diagram GSX450L 1983 (D) GENERAL EXPORT (E01)
CARBURETOR GSX450L 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1320144430
ref: 1
CARBURETOR ASSY, LH
€ 0.00
2
1320244430
ref: 2
CARBURETOR ASSY, RH
€ 0.00
3
1355144410
ref: 3
VALVE, THROTTLE
€ 0.00
4
1360444080
ref: 4
SCREW
€ 3.50
5
1350038310
ref: 5
DIAPHRAGM ASSY
€ 168.00
6
1350344400
ref: 6
SPRING
€ 7.50
7
1358144030
ref: 7
E RING
€ 6.50
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350238300
ref: 9
COVER
€ 22.00
10
0211205168
ref: 10
SCREW
€ 2.50
11
0832121058
ref: 11
LOCK WASHER
€ 2.00
12
1355044210
ref: 12
LH
SHAFT ASSEMBLY
€ 0.00
13
1355044220
ref: 13
RH
SHAFT,THROTTLE
€ 0.00
14
1362744460
ref: 14
RH
BRACKET,THROTTLE CABLE
€ 11.50
15
1357344210
ref: 15
RH
SPRING
€ 0.00
16
1365151010
ref: 16
SEAL
€ 4.00
17
1355747070
ref: 17
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
18
1361744080
ref: 18
E RING
€ 3.50
19
1357847070
ref: 19
CAP
€ 5.50
20
1326844110
ref: 20
LH
SPRING,THROTTLE SCREW
€ 0.00
21
1356344110
ref: 21
LH
PIN,THROTTLE LEVER
€ 0.00
22
1360747070
ref: 22
LH
NUT
€ 4.00
23
1360547080
ref: 23
LH
SCREW
€ 7.00
24
1327847090
ref: 24
O RING
€ 2.00
25
1368231210
ref: 25
CAP,STARTER VALVE
€ 5.00
26
1325144080
ref: 26
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
27
0949245016
ref: 27
JET,PILOT(45)
€ 12.00
28
1335744080
ref: 28
PLUG,NEEDLE JET
€ 4.50
29
0949400394
ref: 29
JET, NEEDLE (0-9)
€ 15.50
30
1333244080
ref: 30
WASHER,NEEDLE NOZZLE
€ 2.50
31
0949123011
ref: 31
JET,MAIN(115)
€ 10.50
32
1324744080
ref: 32
PLUG,DRAIN
€ 9.50
33
1324644080
ref: 33
GASKET (NAS)
€ 3.50
34
1337311400
ref: 34
PLATE,NEEDLE VALVE FITING
€ 7.00
35
0211204068
ref: 35
SCREW 4X6
€ 2.00
36
1325044080
ref: 36
FLOAT
€ 31.00
37
1325492311
ref: 37
PIN,FLOAT
€ 2.00
38
1337011400
ref: 38
VALVE ASSEMBLY,NEEDLE
€ 40.50
39
1338744460
ref: 39
RING
€ 7.50
40
1339410010
ref: 40
CLIP
€ 4.50
41
1338247010
ref: 41
WASHER,JET NEEDLE
€ 3.00
42
1338847010
ref: 42
SPRING
€ 7.00
43
1338344450
ref: 43
NEEDLE, JET (5CDT61-3)
€ 12.50
44
1337665010
ref: 44
FILTER
€ 6.50
45
1337444080
ref: 45
O-RING,NEEDLE VALVE
€ 6.00
46
0211205108
ref: 46
RH
SCREW
€ 2.00
47
0211205088
ref: 47
LH:4,RH:2
SCREW
€ 2.00
48
1360545410
ref: 48
RH
SCREW
€ 8.00
49
0949328005
ref: 49
JET,AIR(140)
€ 10.00
50
1338744200
ref: 50
LH
SPACER,THROTTLE SHAFT
€ 0.00
51
1357344200
ref: 51
LH
SPRING
€ 0.00
52
1338744210
ref: 52
LH
SPACER,THROTTLE SHAFT
€ 0.00
53
1321044460
ref: 53
FLANGE ASSEMBLY,CARBURETOR
€ 185.00
54
1341044460
ref: 54
SHAFT,STARTER
€ 19.00
55
0211206128
ref: 55
SCREW 6X12
€ 2.00
56
1360547070
ref: 56
SCREW
€ 5.50
57
1342244080
ref: 57
LEVER
€ 10.00
58
1368718656
ref: 58
HOSE
€ 14.00
59
0211205128
ref: 59
SCREW
€ 2.50
60
0211205088
ref: 60
SCREW
€ 2.00
61
0832121058
ref: 61
LOCK WASHER
€ 2.00
62
1327144220
ref: 62
SPRING,THROTTLE ADJUST
€ 3.50
63
1362144218
ref: 63
BRACKET
€ 0.00
64
1368116600
ref: 64
CAP,RUBBER
€ 7.00
65
1368511400
ref: 65
NIPPLE,CARBURETOR
€ 19.50
66
1326747070
ref: 66
SCREW
€ 21.00
67
1368311400
ref: 67
HOSE
€ 13.00
68
1342744460
ref: 68
WASHER,STARTER PLUNGER
€ 0.00
69
1343744500
ref: 69
SPRING,STARTER
€ 0.00
70
1366103010
ref: 70
NUT
€ 3.50
71
1357798010
ref: 71
ADJUSTER
€ 0.00
72
1342244500
ref: 72
LEVER,STARTER
€ 16.00
