MUFFLER
GSX450L 1983 (D) GENERAL EXPORT (E01)

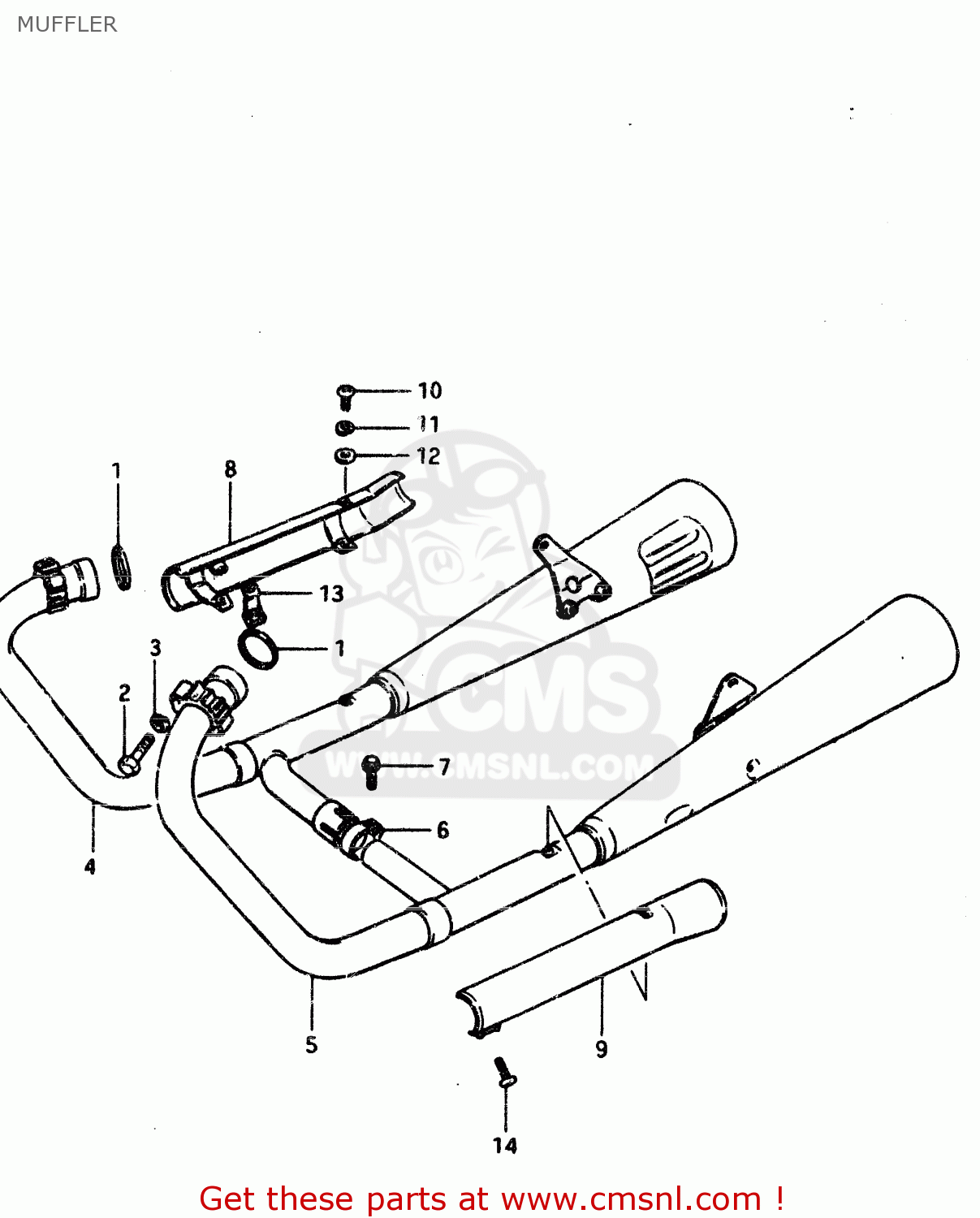

Muffler diagram GSX450L 1983 (D) GENERAL EXPORT (E01)
MUFFLER GSX450L 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1418111020
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0110708408
ref: 2
BOLT 8X40
€ 3.00
3
0832121088
ref: 3
LOCK WASHER
€ 2.00
4
1430144900
ref: 4
MUFFLER ASSEMBLY
€ 341.00
5
1430244900
ref: 5
MUFFLER ASSEMBLY
€ 341.00
6
0940235601
ref: 6
CLAMP
€ 5.00
7
0151706258
ref: 7
BOLT
€ 2.50
8
1478044900
ref: 8
COVER,MUFFLER,RIGHT
€ 25.00
9
1479044900
ref: 9
COVER,MUFFLER LH
€ 33.50
10
0211206088
ref: 10
SCREW
€ 2.00
11
0832121068
ref: 11
LOCK WASHER
€ 2.50
12
0832221068
ref: 12
WASHER
€ 2.00
13
1478544100
ref: 13
CLAMP,MUFFLER COVER
€ 8.50
14
0211205168
ref: 14
SCREW
€ 2.50
