MASTER CYLINDER

GSX450L 1983 (D) GENERAL EXPORT (E01)

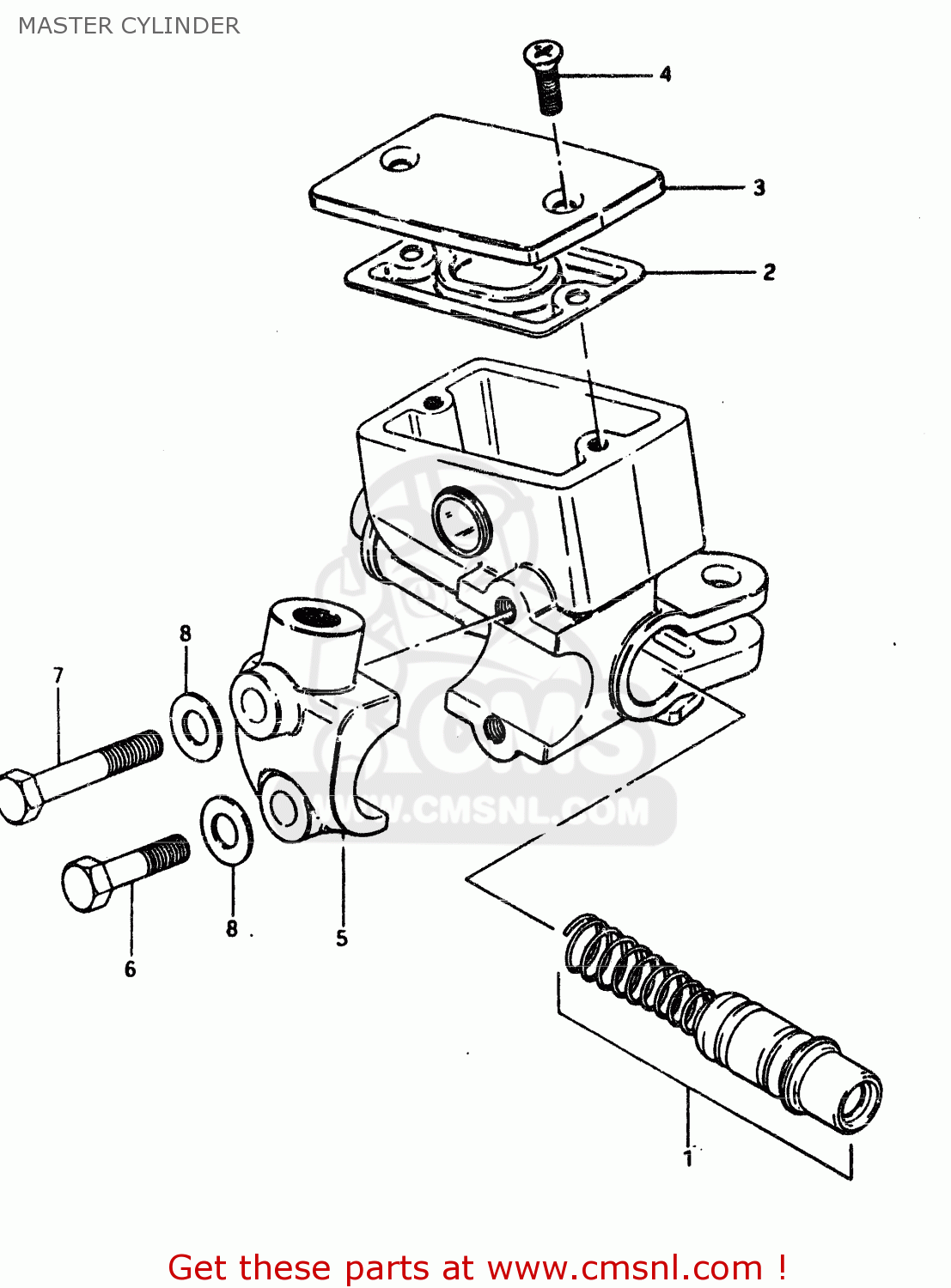

Master cylinder diagram GSX450L 1983 (D) GENERAL EXPORT (E01)

MASTER CYLINDER GSX450L 1983 (D) GENERAL EXPORT (E01)

MASTER CYLINDER GSX450L 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960044200
ref: 0

CYLINDER ASSEMBLY,MASTER

€ 206.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

6966749300
ref: 2

6966749300

3

6966949300
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706258
ref: 6

BOLT

€ 2.00

7

0110706408
ref: 7

BOLT 6X40

€ 2.00

8

0832121068
ref: 8

LOCK WASHER

€ 2.50
