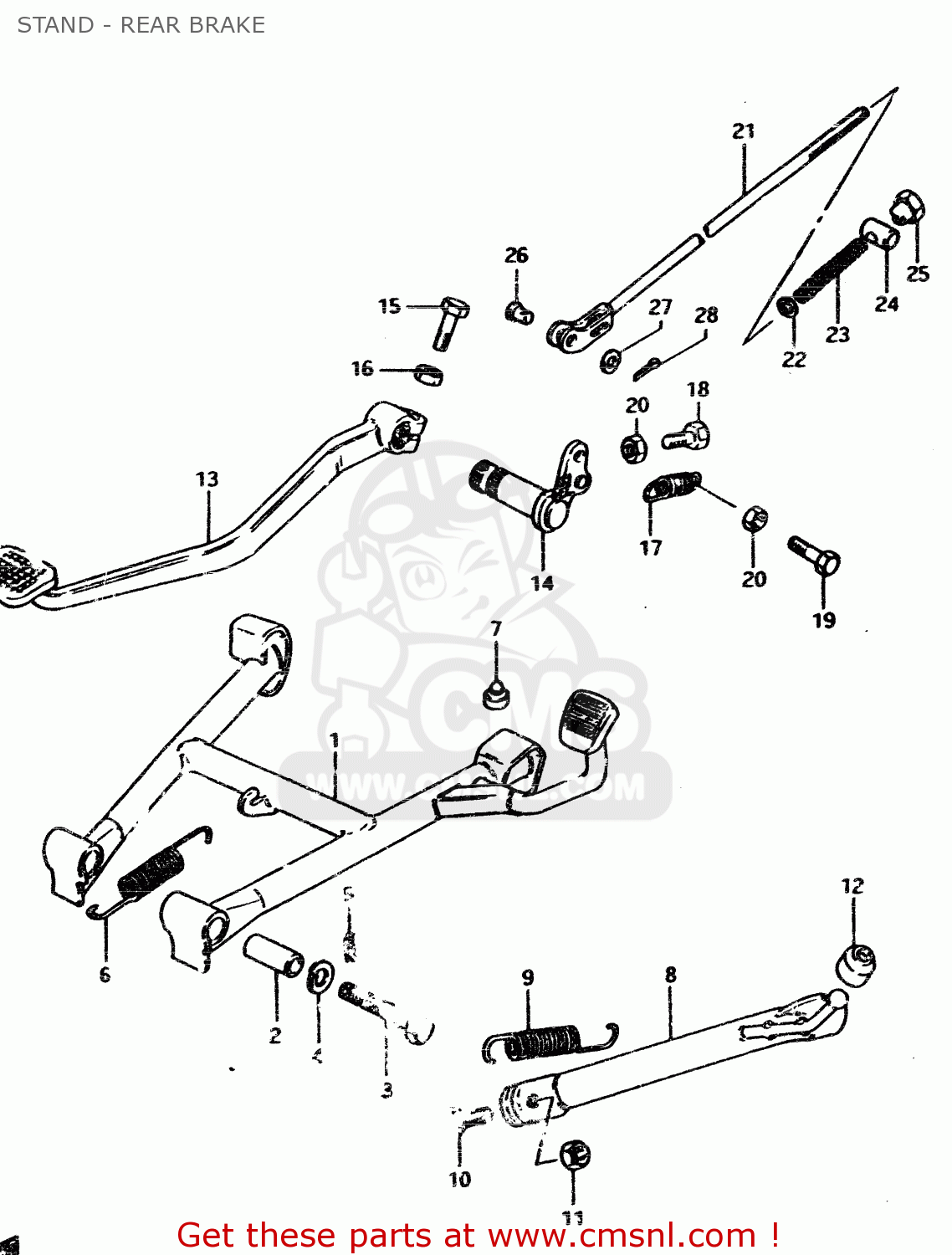

STAND - REAR BRAKE - GSX450L 1983 (D) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

4210044700
ref: 1

STAND,CENTER

€ 85.00

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110018
ref: 3

BOLT

€ 5.50

4

0832121108
ref: 4

LOCK WASHER

€ 2.00

5

0938510001
ref: 5

CLIP

€ 1.50

6

0944318006
ref: 6

SPRING

€ 5.50

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4231044900
ref: 8

STAND,SIDE

€ 31.00

9

0944314027
ref: 9

SPRING

€ 5.00

10

0910010067
ref: 10

BOLT(10X30)

€ 3.50

11

0831022108
ref: 11

NUT

€ 2.50

12

0932007001
ref: 12

CUSHION

€ 4.00

13

4311044900
ref: 13

PEDAL,BRAKE

€ 58.00

14

4312011501
ref: 14

ARM,BRAKE PEDAL

€ 21.00

15

0110708258
ref: 15

BOLT

€ 2.50

16

0832121088
ref: 16

LOCK WASHER

€ 2.00

17

0944314020
ref: 17

SPRING

€ 3.00

18

0110706208
ref: 18

BOLT

€ 2.00

19

0110706258
ref: 19

BOLT

€ 2.00

20

0831011068
ref: 20

NUT

€ 2.50

21

4330044401
ref: 21

ROD ASSY,RR BRAKE

€ 16.00

22

0832221068
ref: 22

WASHER

€ 2.00

23

0944009004
ref: 23

SPRING

€ 2.00

24

0920913005
ref: 24

PIN

€ 3.50

25

0915006009
ref: 25

NUT (6MM)

€ 3.50

26

0920006013
ref: 26

PIN(L:13.5)

€ 2.00

27

0832221068
ref: 27

WASHER

€ 2.00

28

0411120208
ref: 28

PIN 20X20

€ 1.50

STAND - REAR BRAKE

all assemblies
