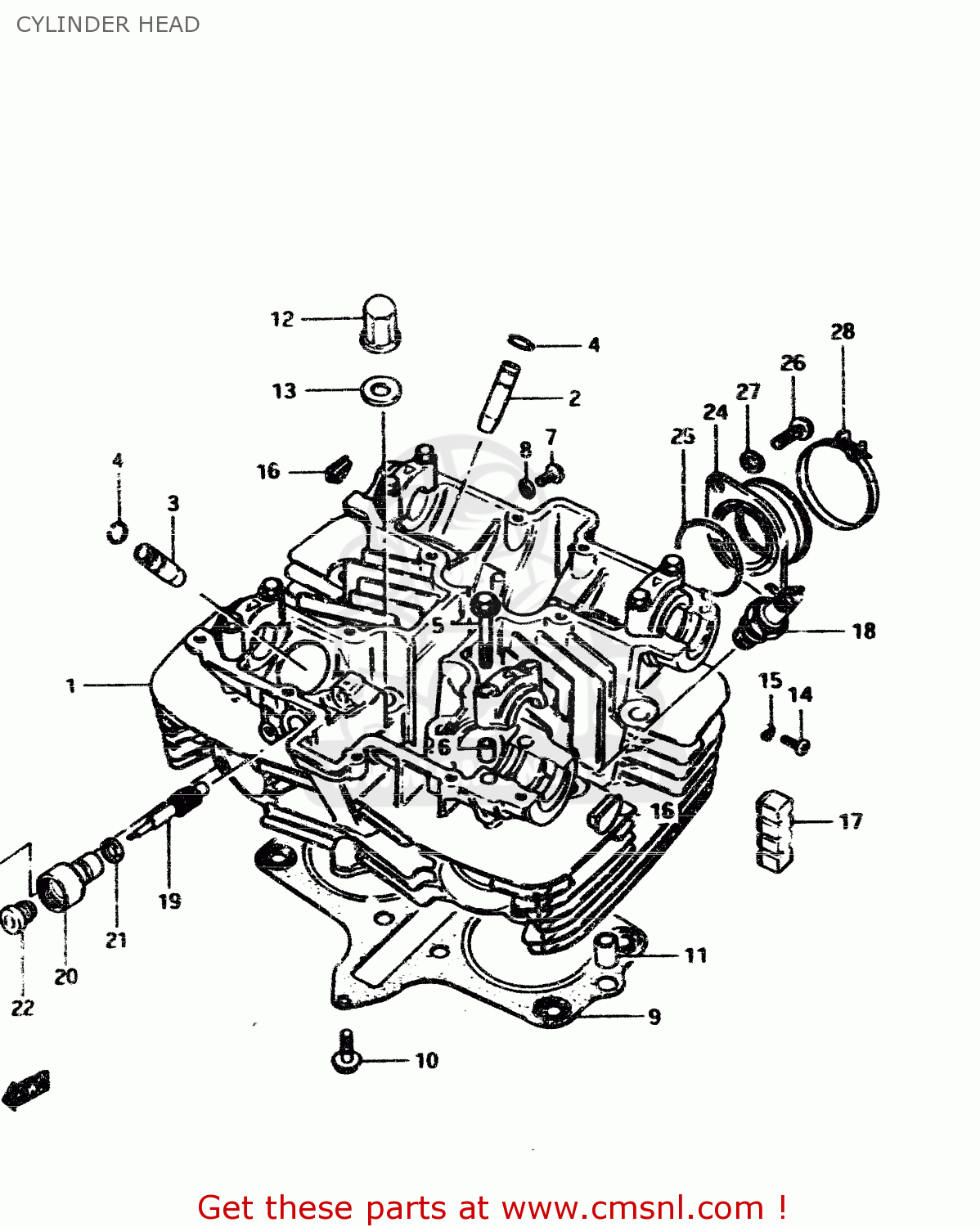

CYLINDER HEAD

ref

part #

description

quantity

1

1110044120
ref: 1

HEAD SET,CYLINDER

€ 0.00

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

0151706128
ref: 7

BOLT

€ 2.50

8

0916806009
ref: 8

GASKET (NAS)

€ 2.00

9

1114144110
ref: 9

GASKET,CYLINDER HEAD (MCA)

€ 117.00

10

0151706305
ref: 10

BOLT 6X30

€ 2.50

11

0421111189
ref: 11

PIN

€ 2.00

12

0915910026
ref: 12

NUT

€ 6.00

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

0211205088
ref: 14

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

0924123002
ref: 16

PLUG

€ 8.50

17

1125146150
ref: 17

PAD,CYLINDER

€ 7.00

18-1

0945200091
ref: 18-1

SPARK PLUG (NGK, BBES)

€ 0.00

18-2

0948200196
ref: 18-2

SPARK PLUG W24ES-U

€ 3.50

19

2643145001
ref: 19

GEAR,TACHOMETER DRIVEN

€ 43.00

20

2644149000
ref: 20

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

21

2645145000A
ref: 21

SEAL,TACHOMETER DRIVEN

€ 4.50

22

0928905002
ref: 22

SEAL,OIL(5X12X8)

€ 11.00

23

0912805101
ref: 23

SCREW(5X12)

€ 1.50

24

1311044100
ref: 24

PIPE,INTAKE

€ 30.00

25

0928040003
ref: 25

O-RING (D:2.4 ID:39.7)

€ 3.50

26

0211206208
ref: 26

SCREW

€ 2.00

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

0940254303
ref: 28

CLAMP

€ 4.00
