FRONT BRAKE HOSE (MODEL F)

GSX500E 1985 (F) GENERAL EXPORT (E01)

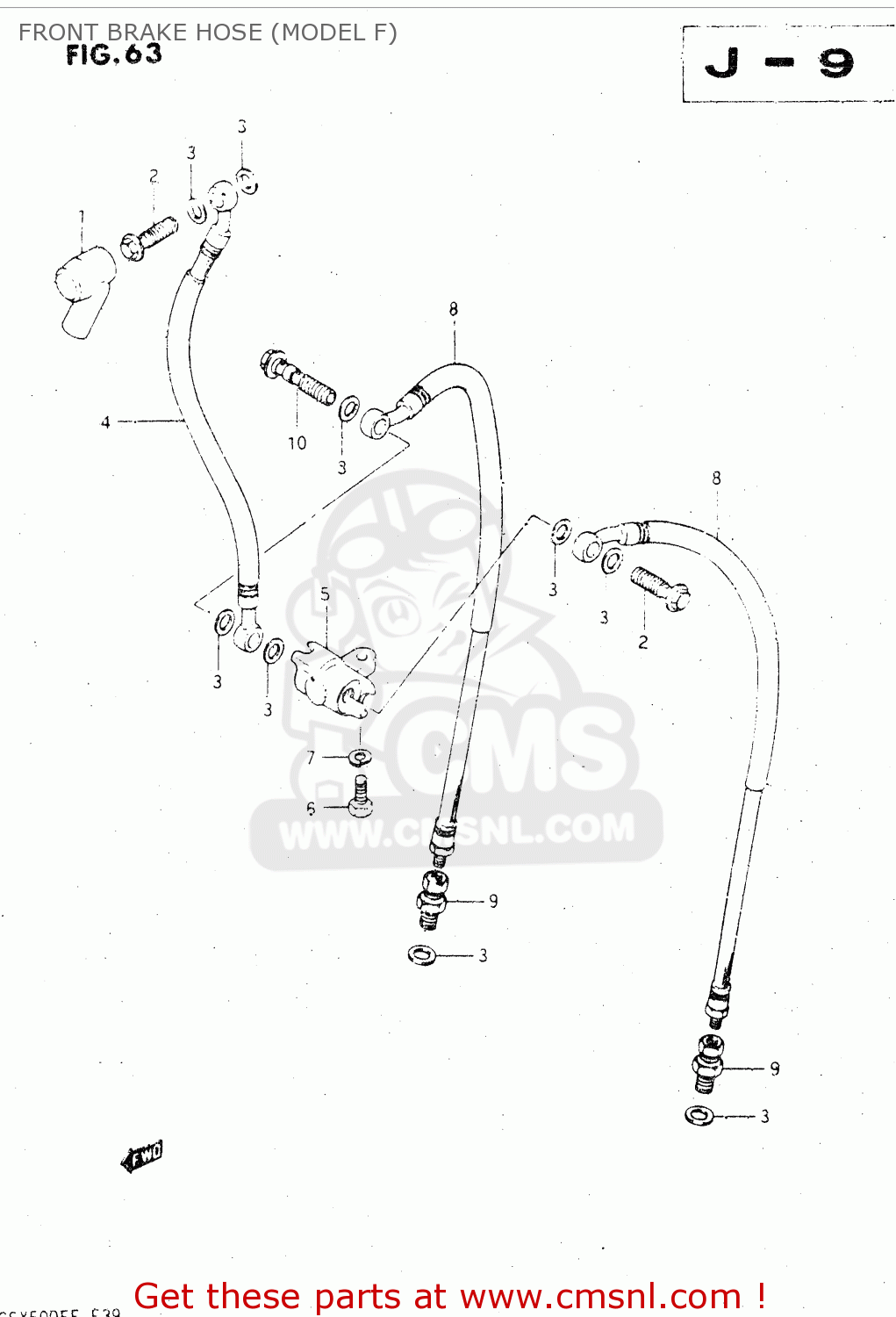

Front brake hose (model f) diagram GSX500E 1985 (F) GENERAL EXPORT (E01)

FRONT BRAKE HOSE (MODEL F) GSX500E 1985 (F) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (MODEL F) GSX500E 1985 (F) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (MODEL F) GSX500E 1985 (F) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
5971149001
€ 8.50
2
0936010017
ref: 2
BOLT UNION
0936010017
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
0916110009
€ 2.00
4
5948043400
ref: 4
HOSE,FRONT BRAKE
€ 58.50
5
5949145000
ref: 5
JOINT,BRAKE HOSE
5949145000
€ 29.00
6
0110706208
ref: 6
BOLT
0110706208
€ 2.00
7
0832121067
ref: 7
WASHER,LOCK
0832121067
€ 2.50
8
5924043410
ref: 8
HOSE,BRAKE NO.2
€ 42.00
9
5929043500
ref: 9
ADAPTER,BRAKE HOSE
5929043500
€ 34.50
10
0936010018
ref: 10
BOLT UNION
0936010018
€ 7.00
