GENERATOR

GSX500E 1985 (F) GENERAL EXPORT (E01)

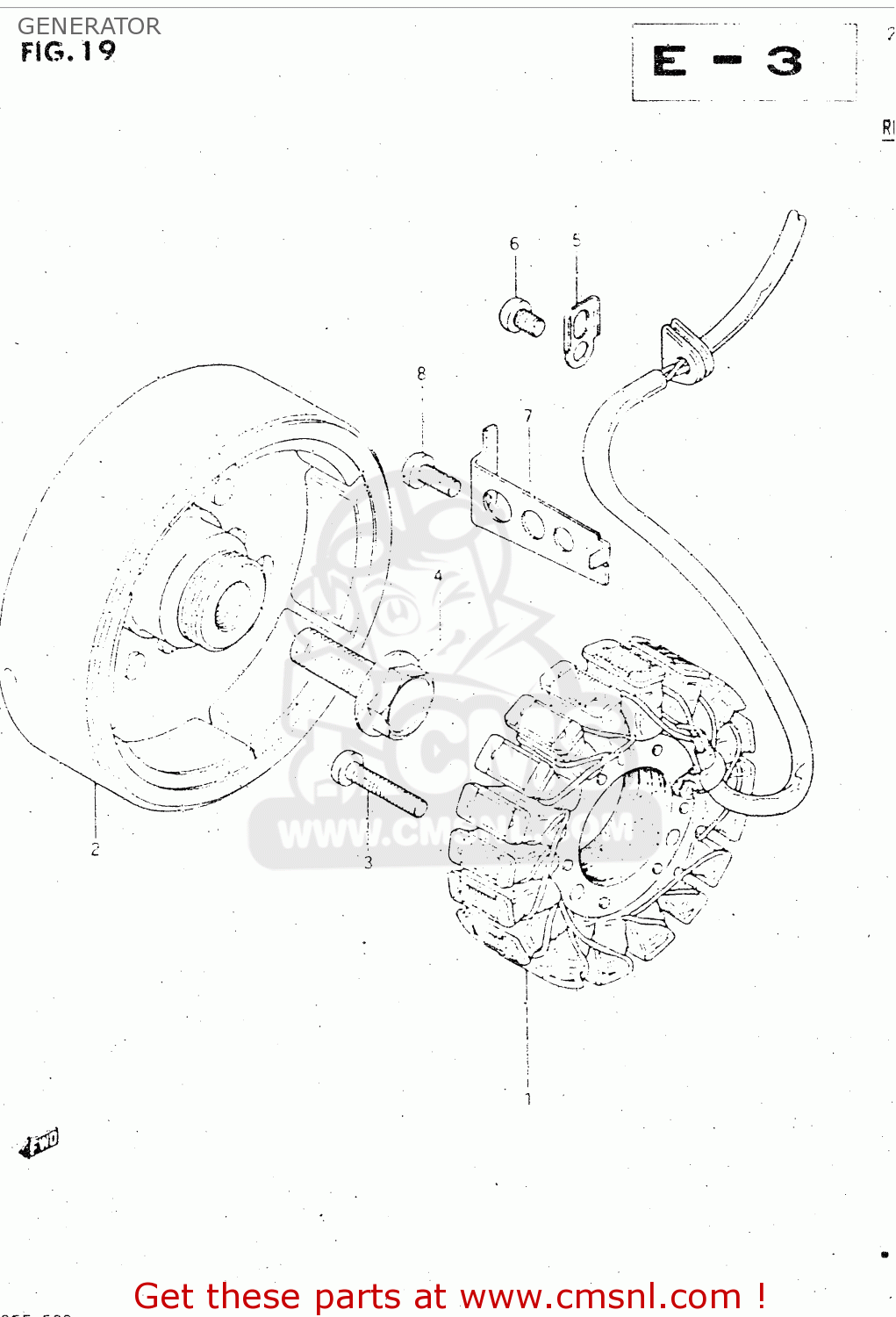

Generator diagram GSX500E 1985 (F) GENERAL EXPORT (E01)

GENERATOR GSX500E 1985 (F) GENERAL EXPORT (E01)

GENERATOR GSX500E 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3140143400
ref: 1

STARTER ASSY

€ 323.00

2

3140243400
ref: 2

ROTOR ASSEMBLY

€ 368.50

3

0211206308
ref: 3

SCREW 6X30

€ 2.50

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

0211205088
ref: 6

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

0211206108
ref: 8

SCREW

€ 1.50
