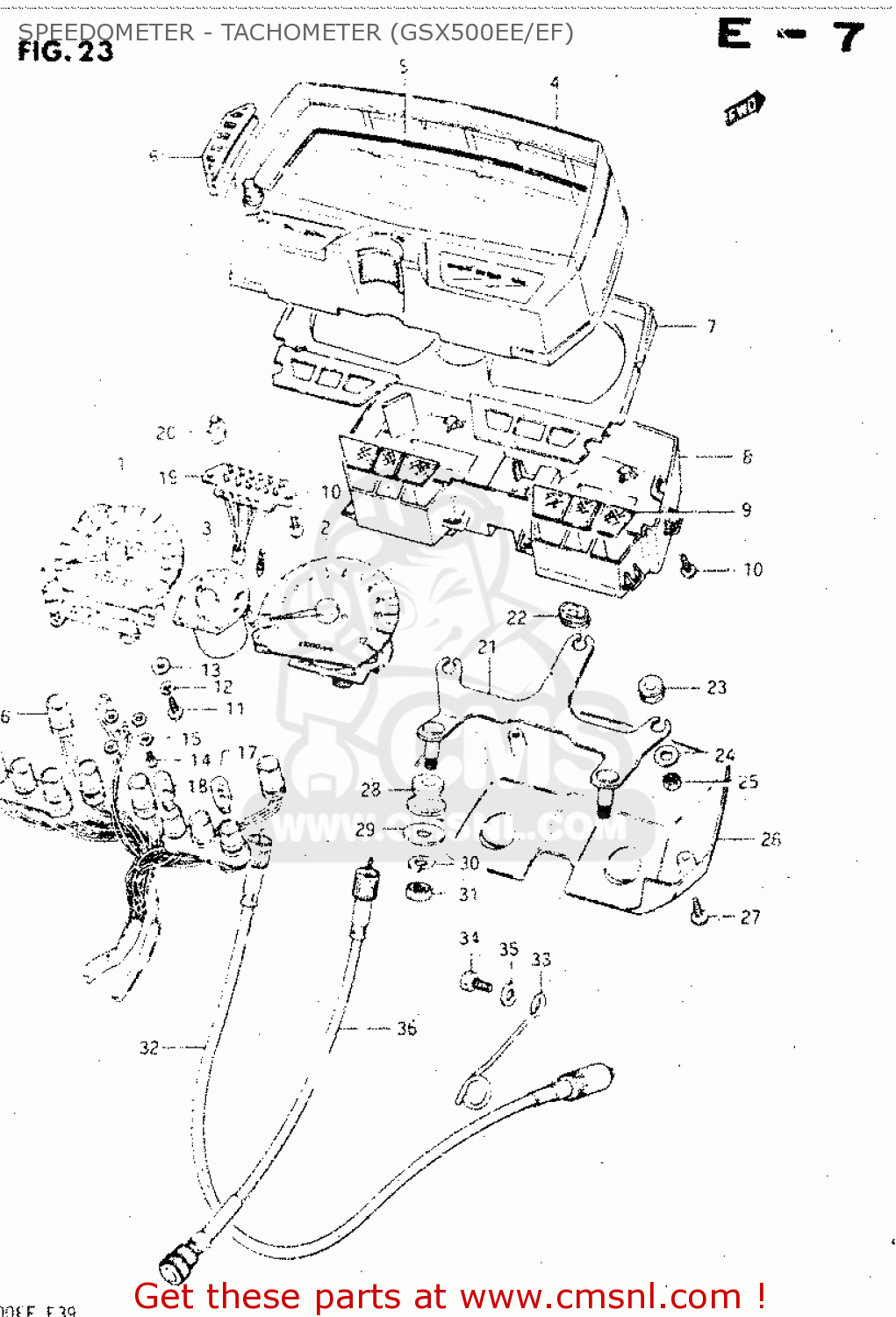

SPEEDOMETER - TACHOMETER (GSX500EE/EF) - GSX500E 1985 (F) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

3412043410
ref: 1

SPEEDOMETER (KILO)

€ 330.50

2

3422043411
ref: 2

METER,TACHOMETER

€ 186.50

3

3432043410
ref: 3

METER,FUEL

€ 78.50

4

3415043410
ref: 4

HOOD,METER

€ 72.50

5

3411243410
ref: 5

GLASS,SPEEDOMETER

€ 36.50

6

3418943410
ref: 6

CUSHION,METER CASE

€ 12.50

7

3415343410
ref: 7

PLATE,METER WINDOW

€ 17.50

8

3411143410
ref: 8

CASE,METER,INNER

€ 64.00

9

3630043810
ref: 9

LENS SET,PILOT

€ 24.00

10

3645634510
ref: 10

SCREW,GEAR INDICATOR

€ 2.00

11

0211203108
ref: 11

SCREW

€ 1.50

12

0832121038
ref: 12

LOCK WASHER

€ 1.50

13

0832221038
ref: 13

WASHER

€ 2.00

14

0211203068
ref: 14

SCREW

€ 2.00

15

0832221038
ref: 15

WASHER

€ 2.00

16

3417043410
ref: 16

SOCKET

€ 95.50

17

0947112082
ref: 17

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

18

0947112077
ref: 18

BULB(12V1.7W,T10,WB121)

€ 1.00

19

3645343410
ref: 19

SOCKET,GEAR INDICATOR

€ 30.00

20

0947112071
ref: 20

BULB(14V1.12W)

€ 5.00

21

3495043410
ref: 21

BRACKET,METER

€ 17.00

22

3499545720
ref: 22

CUSHION,METER

€ 3.00

23

3499643410
ref: 23

CUSHION,METER

€ 3.00

24

3418130520
ref: 24

WASHER,METER

€ 1.50

25

0831002058
ref: 25

NUT

€ 0.00

26

3419343410
ref: 26

COVER,METER,UNDER

€ 59.00

27

0311204125
ref: 27

SCREW

€ 1.50

28

3495631001
ref: 28

CUSHION,METER BRACKET

€ 4.50

29

0916008057
ref: 29

WASHER (8.5X20X1.6)

€ 2.00

30

0832121084
ref: 30

WASHER,LOCK,8.

€ 2.50

31

0831011085
ref: 31

NUT

€ 1.50

32

3491043410
ref: 32

CABLE ASSEMBLY,SPEEDOMETER

€ 65.00

33

3493845100
ref: 33

CLAMP,SPEEDOMETER CABLE

€ 14.50

34

0110706168
ref: 34

BOLT, UPPER

€ 3.00

35

0832221068
ref: 35

WASHER

€ 2.00

36

3494044311
ref: 36

CABLE ASSY,TACHOMETER

€ 13.50

SPEEDOMETER - TACHOMETER (GSX500EE/EF)

all assemblies
