STAND
GSX500E 1985 (F) GENERAL EXPORT (E01)

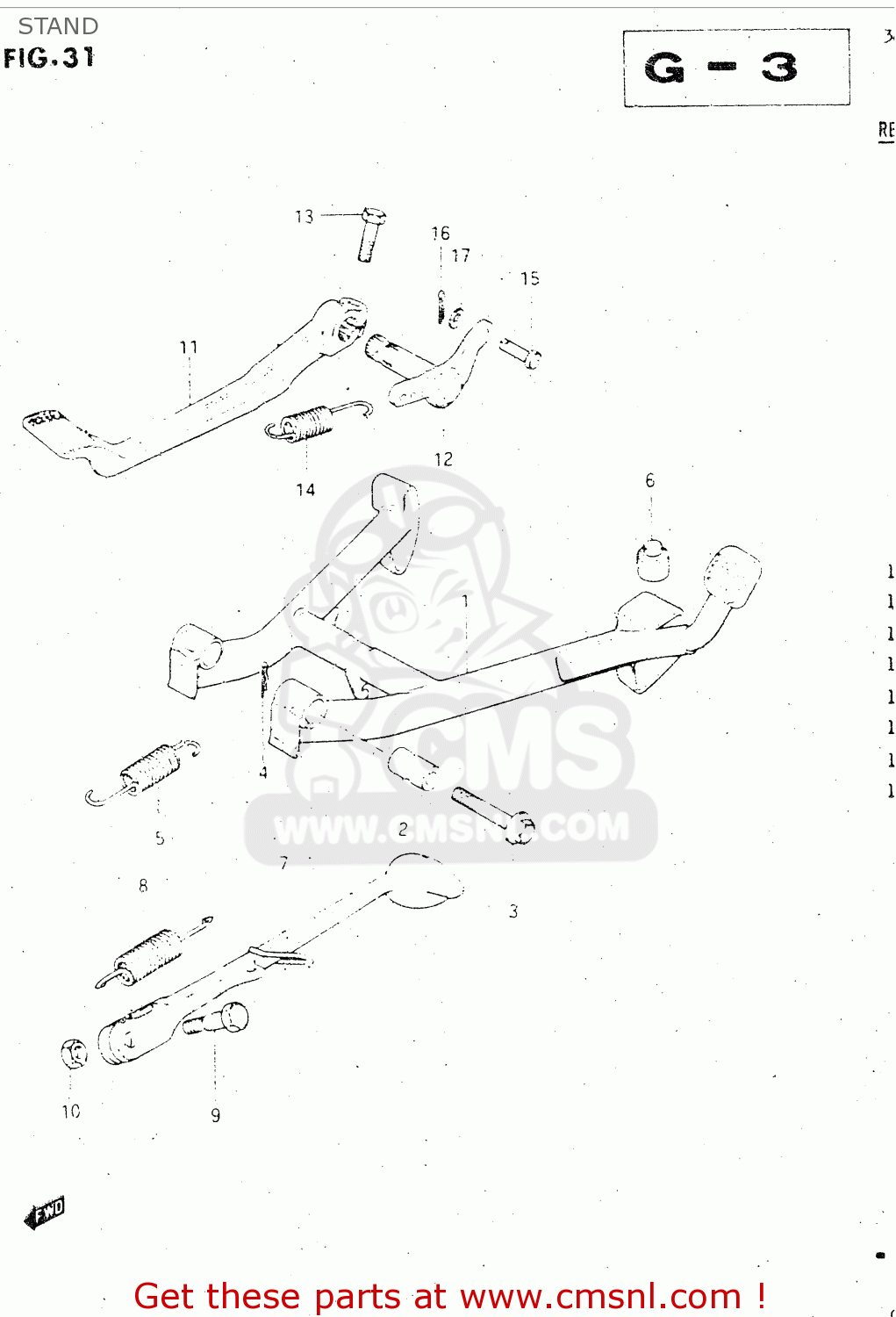

Stand diagram GSX500E 1985 (F) GENERAL EXPORT (E01)
STAND GSX500E 1985 (F) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210043400
ref: 1-1
STAND,CENTER
€ 100.50
1-2
4210043410
ref: 1-2
E15
STAND, CENTER
€ 0.00
2
0918010084
ref: 2
SPACER (10.5X16X31.8)
€ 3.00
3
0910110028
ref: 3
BOLT 10X50
€ 4.50
4
0938510001
ref: 4
CLIP
€ 1.50
5-1
0944318012
ref: 5-1
SPRING
€ 9.00
5-2
0944318013
ref: 5-2
E15
SPRING
€ 3.00
6
0932110001
ref: 6
CUSHION
€ 2.50
7-1
423104340113L
ref: 7-1
STAND,SIDE
€ 56.00
7-2
423104341313L
ref: 7-2
E15
STAND, PROP (SILVER)
€ 0.00
8-1
0944315017
ref: 8-1
SPRING
€ 4.00
8-2
0944317015
ref: 8-2
E15
SPRING
€ 7.00
9
0911110019
ref: 9
BOLT L:30
€ 4.50
10
0831022106
ref: 10
NUTM10X1.25X8
€ 2.00
11
4311143401
ref: 11
PEDAL,BRAKE
€ 75.00
12
4312043400
ref: 12
ARM,BRAKE PEDAL ROD
€ 42.00
13
0151708258
ref: 13
BOLT
€ 2.50
14
0944314002
ref: 14
SPRING
€ 2.50
15
0920006029
ref: 15
PIN
€ 1.50
16
0411120158
ref: 16
PIN
€ 1.50
17
0832221068
ref: 17
WASHER
€ 2.00
