HEADLAMP (GSX500EE/EF)

GSX500ES 1985 (F) GENERAL EXPORT (E01)

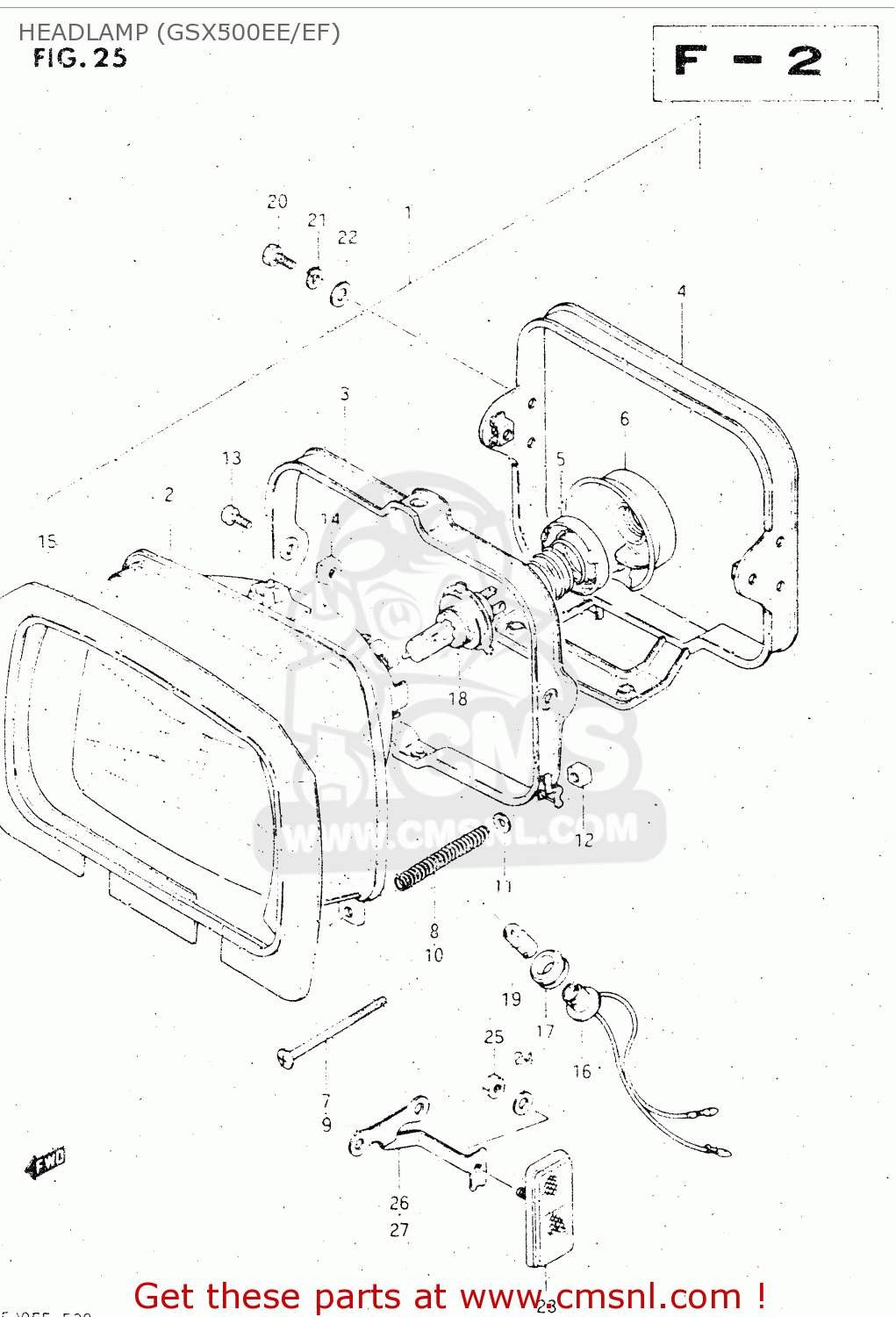

Headlamp (gsx500ee/ef) diagram GSX500ES 1985 (F) GENERAL EXPORT (E01)

HEADLAMP (GSX500EE/EF) GSX500ES 1985 (F) GENERAL EXPORT (E01)

HEADLAMP (GSX500EE/EF) GSX500ES 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3510043451999
ref: 1

HEADLAMP ASSY

€ 259.00

2

3512143450
ref: 2

UNIT

€ 143.00

3

3513043400
ref: 3

RING,MOUNTING

€ 30.50

4

3514143401
ref: 4

HOUSING

€ 33.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

3515131300
ref: 7

SCREW,HEADLAMP ADJUST

€ 3.00

8

3515431300
ref: 8

SPRING

€ 2.00

9

3515149200
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

10

3515443400
ref: 10

SPRING,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3513545600
ref: 12

NUT

€ 3.00

13

0211205128
ref: 13

SCREW

€ 2.50

14

3513545900
ref: 14

NUT

€ 2.50

15

3512943400
ref: 15

SHADE

€ 23.00

16

3611849320
ref: 16

SOCKET

€ 12.00

17

3611622630
ref: 17

JOINT,RUBBER

€ 5.00

18

0947112060
ref: 18

BULB(12V60/55W,H4)

€ 8.00

19

0947112063
ref: 19

BULB(12V4W)

€ 6.00

20

0110706126
ref: 20

BOLT

€ 2.00

21

0832121066
ref: 21

WASHER,LOCK

€ 2.00

22

0832221066
ref: 22

WASHER, LOWER

€ 2.00

23

3595031310
ref: 23

REFLEX REFLECTOR, FRONT SIDE

€ 0.00

24

0832221055
ref: 24

WASHER,5MM

€ 2.50

25

0831012055
ref: 25

NUT ,5MM

€ 2.50

26

3599043400
ref: 26
MODEL F

BRACKET, RH

€ 0.00

27

3599043410
ref: 27
MODEL F

BRACKET, LH

€ 0.00
