STEERING STEM (GSX500EE/EF)

GSX500ES 1985 (F) GENERAL EXPORT (E01)

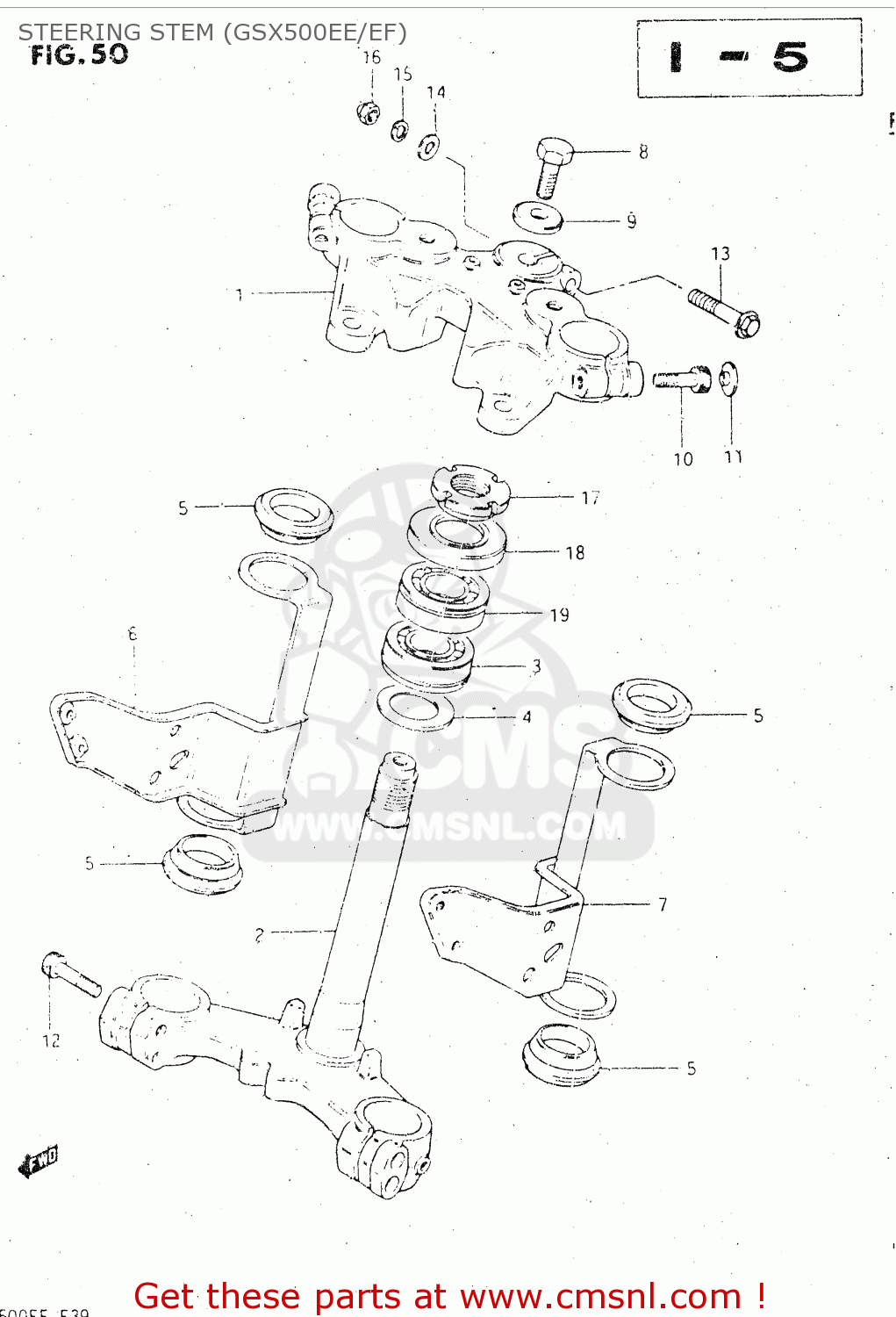

Steering stem (gsx500ee/ef) diagram GSX500ES 1985 (F) GENERAL EXPORT (E01)

STEERING STEM (GSX500EE/EF) GSX500ES 1985 (F) GENERAL EXPORT (E01)

STEERING STEM (GSX500EE/EF) GSX500ES 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

513114340015T
ref: 1

HEAD,STEERING STEM

€ 134.00

2

514104342015T
ref: 2

STEM,STEERING

€ 217.00

3

0926530005
ref: 3

BEARING

€ 49.50

4

0821130402
ref: 4
MODEL E

WASHER,THRUST

€ 4.00

5

5155349000
ref: 5

CUSHION,HEADLAMP BRACKET

€ 4.50

6

515304340115T
ref: 6

BRACKET,HEADLAMP,RIGHT

€ 37.00

7

515404340115T
ref: 7

BRACKET,HEADLAMP,LEFT

€ 39.00

8

5135345380
ref: 8

NUT,STEM HEAD

€ 8.50

9

5135649300A
ref: 9

WASHER,STEERING STEM B

€ 4.00

10

0711010355
ref: 10

BOLT 10X35

€ 3.50

11

0925008010
ref: 11

CAP(OD:20)

€ 2.50

12

0711008305
ref: 12

BOLT, REAR (8X30)

€ 3.00

13

0151708504
ref: 13

BOLT, UPPER

€ 2.50

14

0832211084
ref: 14

WASHER

€ 1.50

15

0832121084
ref: 15

WASHER,LOCK,8.

€ 2.50

16

0831311085
ref: 16

NUT,M8X1.25X12

€ 2.00

17

5163134200
ref: 17

NUT,STEERING STEM

€ 23.00

18

5164340502
ref: 18

DUST SEAL,STEERING UPR

€ 8.00

19

0926525008
ref: 19

TAPER,ROLLER BEARING

€ 48.50
