TURN SIGNAL LAMP

GSX500ES 1985 (F) GENERAL EXPORT (E01)

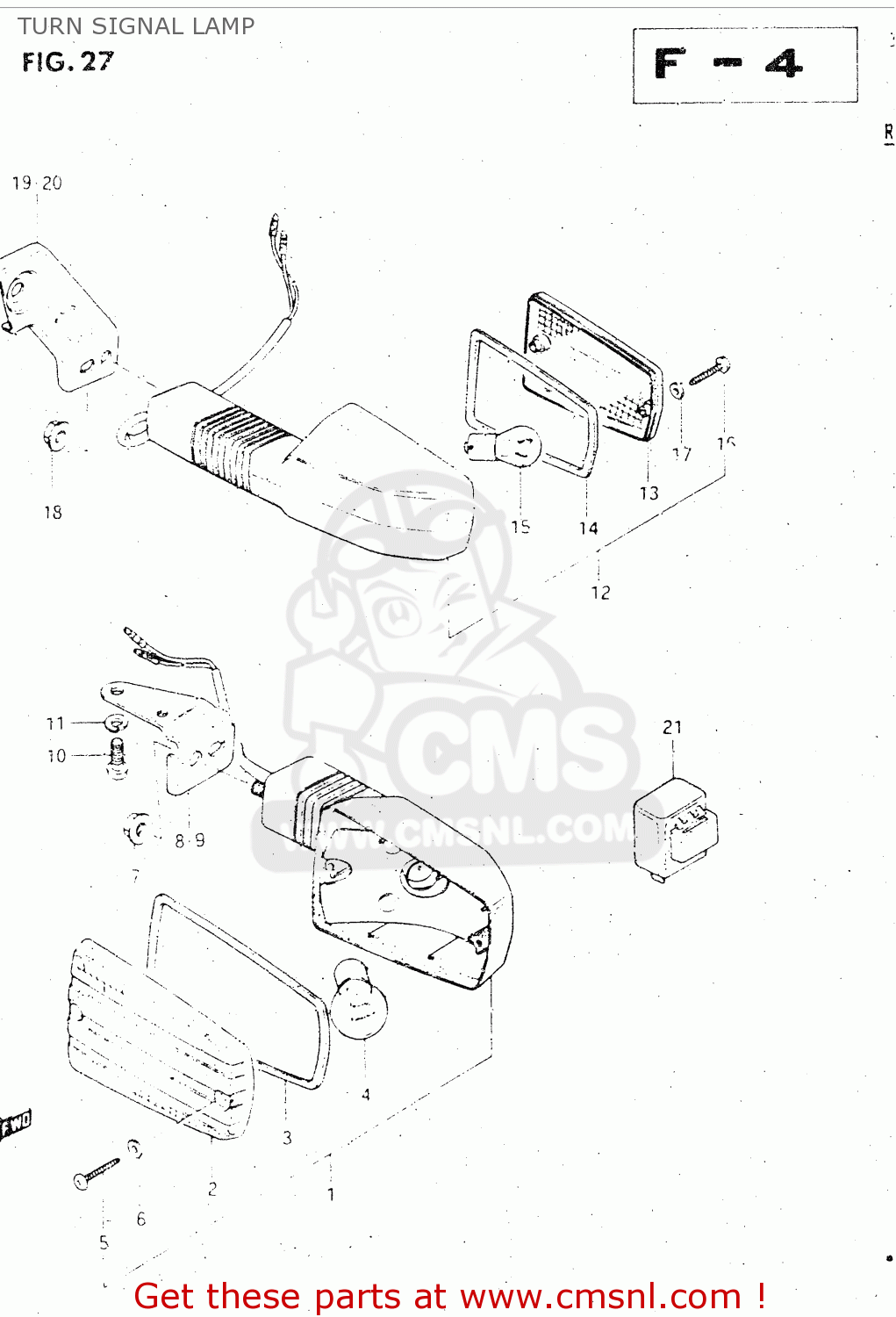

Turn signal lamp diagram GSX500ES 1985 (F) GENERAL EXPORT (E01)

TURN SIGNAL LAMP GSX500ES 1985 (F) GENERAL EXPORT (E01)

TURN SIGNAL LAMP GSX500ES 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

3560143481
ref: 1-1
GSX500EE/EF

LAMP ASSY, FRONT TURN SIGNAL

€ 54.00

1-2

3560143421
ref: 1-2
GSX500ESE/ESF

LAMP ASSY, FRONT TURN SIGNAL

€ 98.50

2

3561243410
ref: 2

LENS

€ 11.00

3

3561343410
ref: 3

GASKET (NAS)

€ 3.50

4

0947112045
ref: 4

BULB(12V21W)

€ 5.00

5

0321104208
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0831626085
ref: 7

NUT M8

€ 1.50

8

3567143400
ref: 8
GSX500ESE/ESF

BRACKET,FRONT TURN SIGNAL

€ 5.00

9

3568143400
ref: 9
GSX500ESE/ESF

BRACKET,FRONT TURN SIGNAL

€ 5.50

10

0211206166
ref: 10

SCREW

€ 2.00

11

0832121066
ref: 11

WASHER,LOCK

€ 2.00

12-1

3560343421
ref: 12-1
E39

LAMP ASSY, REAR TURN SIGNAL

€ 75.00

12-2

3560343481
ref: 12-2
E15

LAMP ASSY, REAR TURN SIGNAL

€ 79.00

13

3565243420
ref: 13

LENS,TURN SIGN

€ 11.50

14

3561343410
ref: 14

GASKET (NAS)

€ 3.50

15

0947112045
ref: 15

BULB(12V21W)

€ 5.00

16

0321104208
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

0831626086
ref: 18

NUT

€ 1.50

19

3562143400
ref: 19

BRACKET,REAR TURN SIGNAL

€ 7.50

20

3564143400
ref: 20

BRACKET,REAR TURN SIGNAL

€ 7.50

21

3861031310
ref: 21

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50
