REAR FENDER
GSX500ES 1985 (F) GENERAL EXPORT (E01)

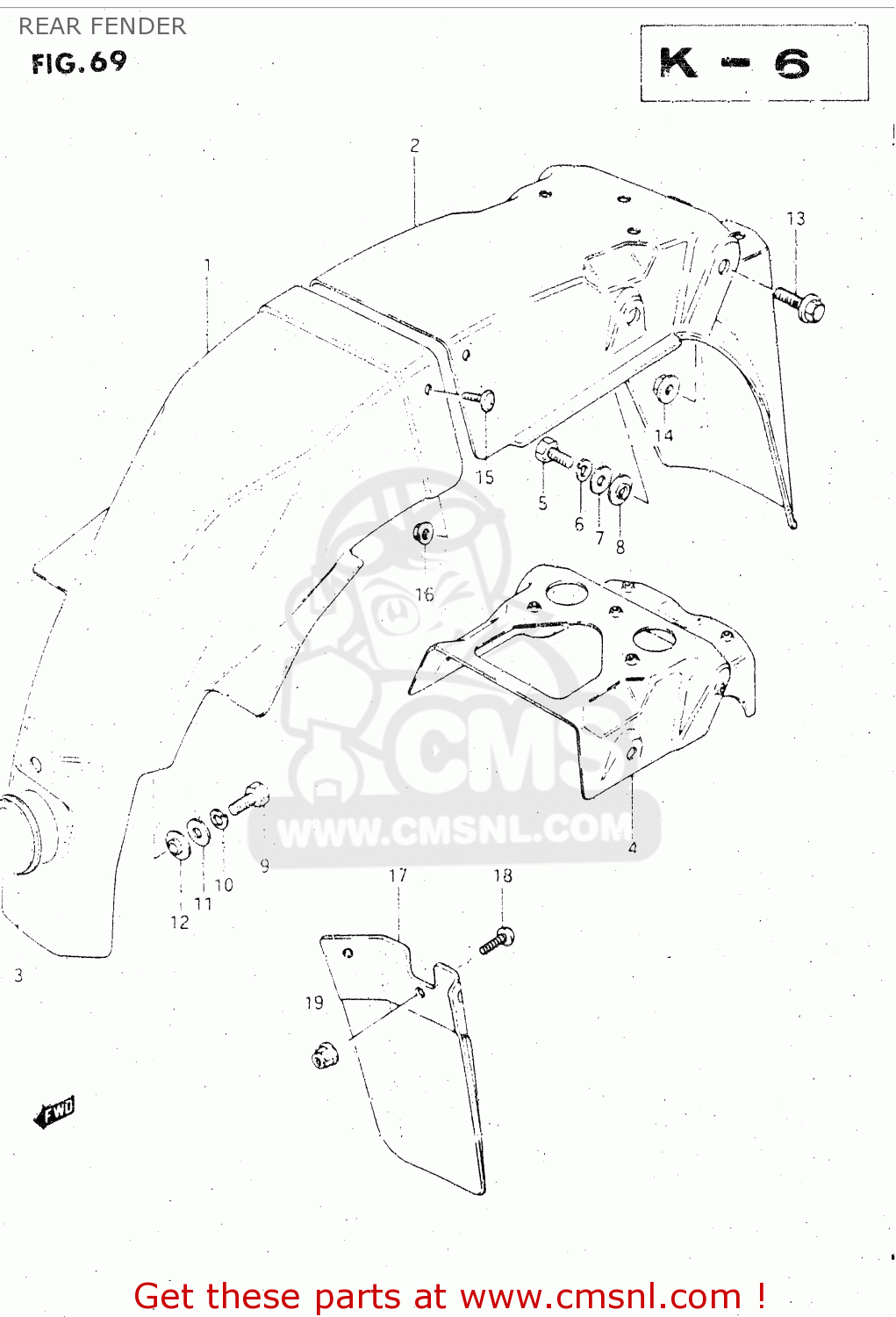

Rear fender diagram GSX500ES 1985 (F) GENERAL EXPORT (E01)
REAR FENDER GSX500ES 1985 (F) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6311243400
ref: 1
BODY,REAR FENDER,FRONT
€ 67.50
2-1
6311343400
ref: 2-1
BODY,RR FENDER RR
€ 58.50
2-2
6311343410
ref: 2-2
E15
FENDER, REAR
€ 58.50
3
6311843400
ref: 3
GROMMET,REAR FENDER,FRONT
€ 0.00
4
6312143400
ref: 4
REINFORCEMENT,REAR
€ 48.00
5
0110708168
ref: 5
BOLT
€ 2.00
6
0832121088
ref: 6
LOCK WASHER
€ 2.00
7
0832211088
ref: 7
WASHER
€ 2.00
8
0916006006
ref: 8
WASHER
€ 2.00
9
0110706168
ref: 9
BOLT, UPPER
€ 3.00
10
0832121067
ref: 10
WASHER,LOCK
€ 2.50
11
0832211068
ref: 11
WASHER 6MM
€ 2.00
12
0916906026
ref: 12
WASHER
€ 2.00
13
0151708258
ref: 13
BOLT
€ 2.50
14
0831931088
ref: 14
NUT
€ 2.50
15
0214206165
ref: 15
SCREW
€ 2.50
16
0831931068
ref: 16
NUT
€ 2.50
17
6333143400
ref: 17
E15
EXTENSION
€ 0.00
18
0214206165
ref: 18
E15
SCREW
€ 2.50
19
0831931068
ref: 19
E15
NUT
€ 2.50
