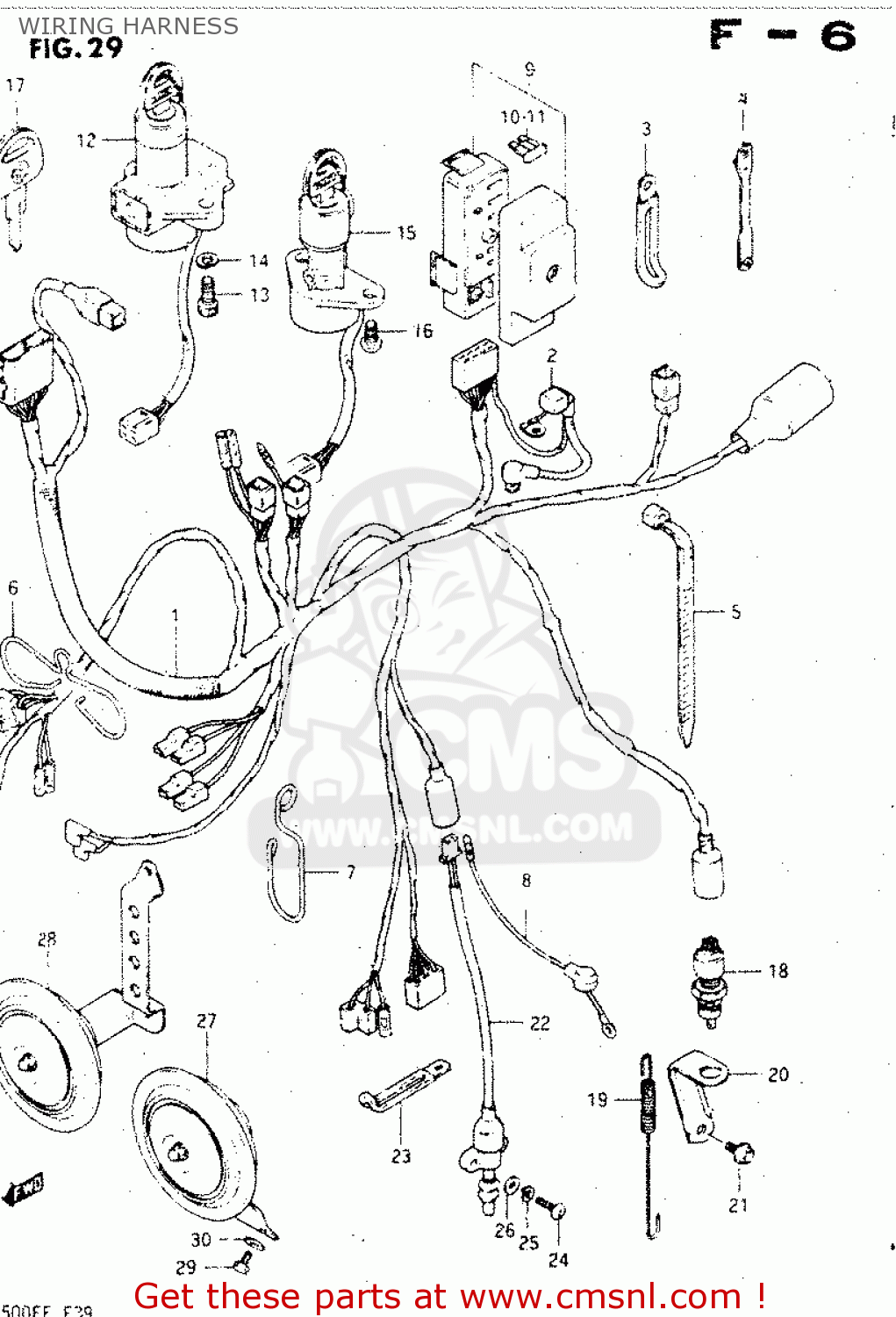

WIRING HARNESS

ref

part #

description

quantity

1-1

3661043410
ref: 1-1
GSX500EE/EF

HARNESS,WIRING

€ 0.00

1-2

3661043460
ref: 1-2
GSX500ESE/ESF

HARNESS,WIRING

€ 199.50

2

3362443500
ref: 2

CAP,BATTERY PLUS TERMINAL

€ 3.50

3-1

0940406402
ref: 3-1

CLAMP

€ 2.50

3-2

0940406415
ref: 3-2

CLAMP

€ 3.00

4

0940705403
ref: 4

CLAMP,L:88

€ 1.50

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6

3661843400
ref: 6
GSX500EE/EF

BOOT,WIRING HARNESS

€ 0.00

7

3661849302
ref: 7
GSX500ESE/ESF

GUIDE,WIRING HARNESS

€ 4.50

8

3685143410
ref: 8

WIRE

€ 3.00

9

3674043401
ref: 9

FUSE BOX ASSY

€ 61.00

10

0948110101
ref: 10

FUSE(10A)

€ 2.50

11

0948115101
ref: 11

FUSE(15A)

€ 1.50

12-1

3710000A01
ref: 12-1
GSX500EE/EF E39

IGNITION SWITCH/STEERING LOCK

€ 122.50

12-2

3710000A52
ref: 12-2
GSX500ESF E39

IGNITION SWITCH/STEERING LOCK

€ 93.50

13

3715247011
ref: 13

BOLT

€ 3.00

14

0832121068
ref: 14

LOCK WASHER

€ 2.50

15

3711043452
ref: 15
GSX500ESE/ESF E15

SWITCH ASSY, IGNITION

€ 83.00

16

0214206125
ref: 16

SCREW 6X12

€ 2.00

17

3714647010
ref: 17
OPT

KEY,BLANK

€ 15.00

18

3774007900
ref: 18

SWITCH ASSEMBLY,STOP LAMP

€ 20.50

19

0944306005
ref: 19

SPRING

€ 6.00

20

4325143400
ref: 20

BRACKET,BRAKE LAMP SWITCH

€ 0.00

21

0151706108
ref: 21

BOLT

€ 2.50

22

3784031302
ref: 22
E39

SWITCH ASSEMBLY,SIDE STAND

€ 58.50

23

0940406415
ref: 23

CLAMP

€ 3.00

24

0211205205
ref: 24

SCREW 5X20

€ 2.50

25

0832121055
ref: 25

WASHER,LOCK

€ 3.00

26

0832221055
ref: 26

WASHER,5MM

€ 2.50

27

3850043410
ref: 27
GSX500EE/EF E39

HORN ASSY

€ 47.00

28-1

3850043460
ref: 28-1
GSX500ESF E39

HORN ASSY

€ 60.00

28-2

3850043450
ref: 28-2
GSX500ESE/ESF E15

HORN ASSEMBLY

€ 60.00

29

0110706126
ref: 29

BOLT

€ 2.00

30

0832221066
ref: 30

WASHER, LOWER

€ 2.00
