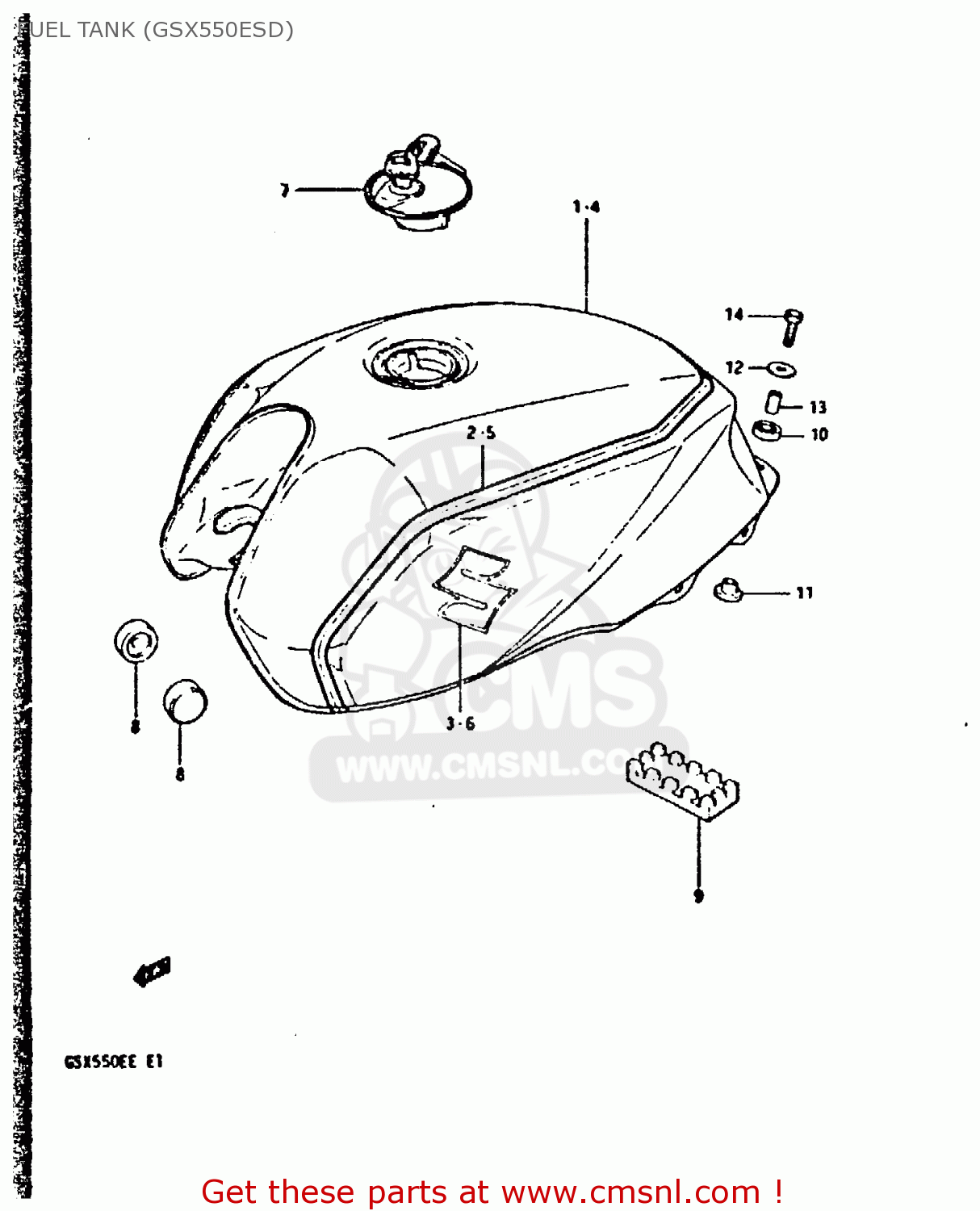

FUEL TANK (GSX550ESD)

GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

Fuel tank (gsx550esd) diagram GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

441004342088D
ref: 1
TO 44100-43830-88D

TANK, FUEL

€ 582.00

681104340093L
ref: 2

TAPE SET,FUEL TANK

€ 69.00

681114341069L
ref: 3

EMBLEM

€ 6.00

441004342088M
ref: 4
TO 44100-43830-88M

TANK ASSY, FUEL

€ 582.00

681104340093M
ref: 5

TAPE SET,FUEL TANK

€ 39.00

681114341069L
ref: 6

EMBLEM

€ 6.00

4420034303KEY
ref: 7
TO 44200-34304-KEY

CAP SET,FUEL TANK

€ 135.50

0932910007
ref: 8

CUSHION

€ 3.00

4454143400
ref: 9

CUSHION,FUEL TANK

€ 7.50

0932014013
ref: 10

CUSHION

€ 3.00

0932010020
ref: 11

CUSHION

€ 4.00

0916006004
ref: 12

WASHER (6.5X24X1.6)

€ 1.50

0918006107
ref: 13

SPACER (6.4X9X20)

€ 3.00

0110706308
ref: 14

BOLT

€ 2.50
