REAR BRAKE HOSE

GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

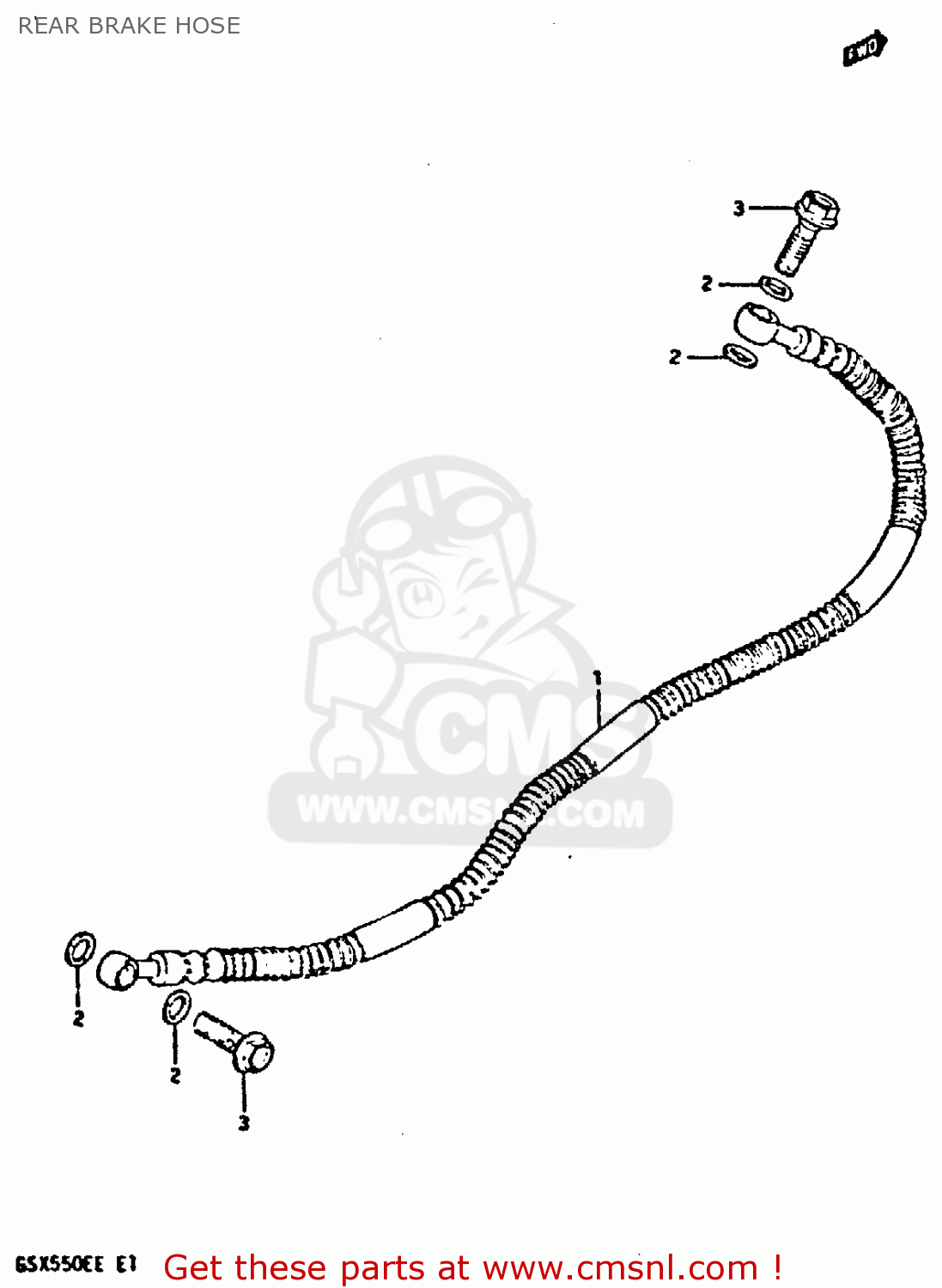

Rear brake hose diagram GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

REAR BRAKE HOSE GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

REAR BRAKE HOSE GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1

6948043403
ref: 1

HOSE,REAR BRAKE

€ 72.00

2

0916110005
ref: 2

WASHER

€ 2.00

3

0936010009
ref: 3

BOLT UNION

€ 6.50
