REAR CALIPERS

GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

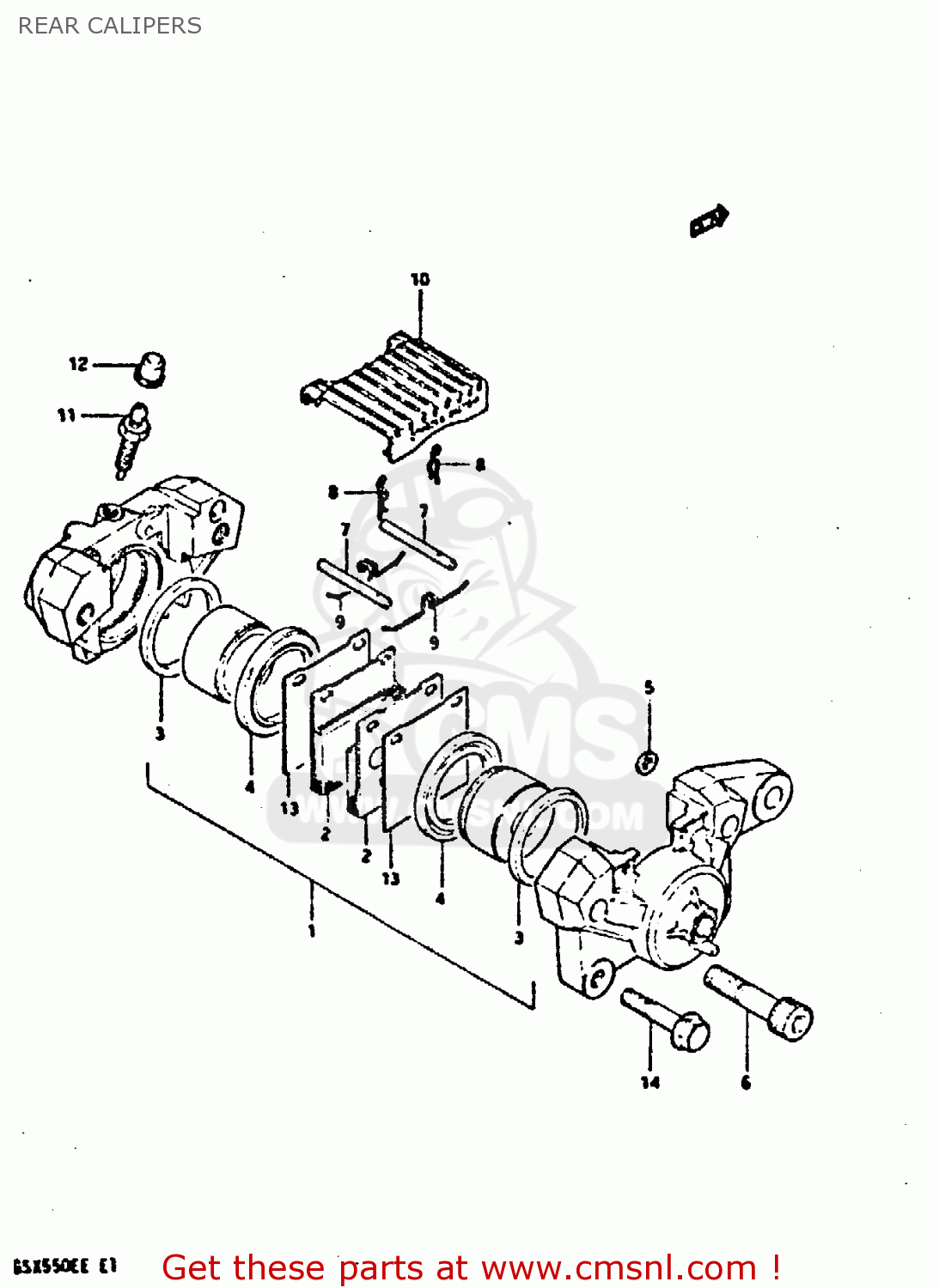

Rear calipers diagram GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

6910033400
ref: 0

CALIPER ASSEMBLY,REAR (ASB)

€ 362.00

6910016810
ref: 1

PISTON SET

€ 192.50

5913016700
ref: 2

PAD (MCA)

€ 43.00

5910718410
ref: 3

SEAL,PISTON

€ 17.00

5910816700
ref: 4

BOOT

€ 16.50

6910734200
ref: 5

SEAL,JOINT

€ 12.00

6914534200
ref: 6

BOLT,CALIPER HOUSING

€ 9.50

6914145000
ref: 7

PIN,PAD

€ 6.50

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

5914316700
ref: 9

SPRING

€ 7.50

5915116700
ref: 10

COVER,CALIPER

€ 13.50

5912118410
ref: 11

BLEEDER

€ 8.00

5912218410
ref: 12

CAP,BREATHER

€ 6.00

5937133410
ref: 13

SHIM,PAD

€ 15.00

0151708305
ref: 14

BOLT

€ 3.00
