FUEL TANK (GSX550ESE/EFE)

GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

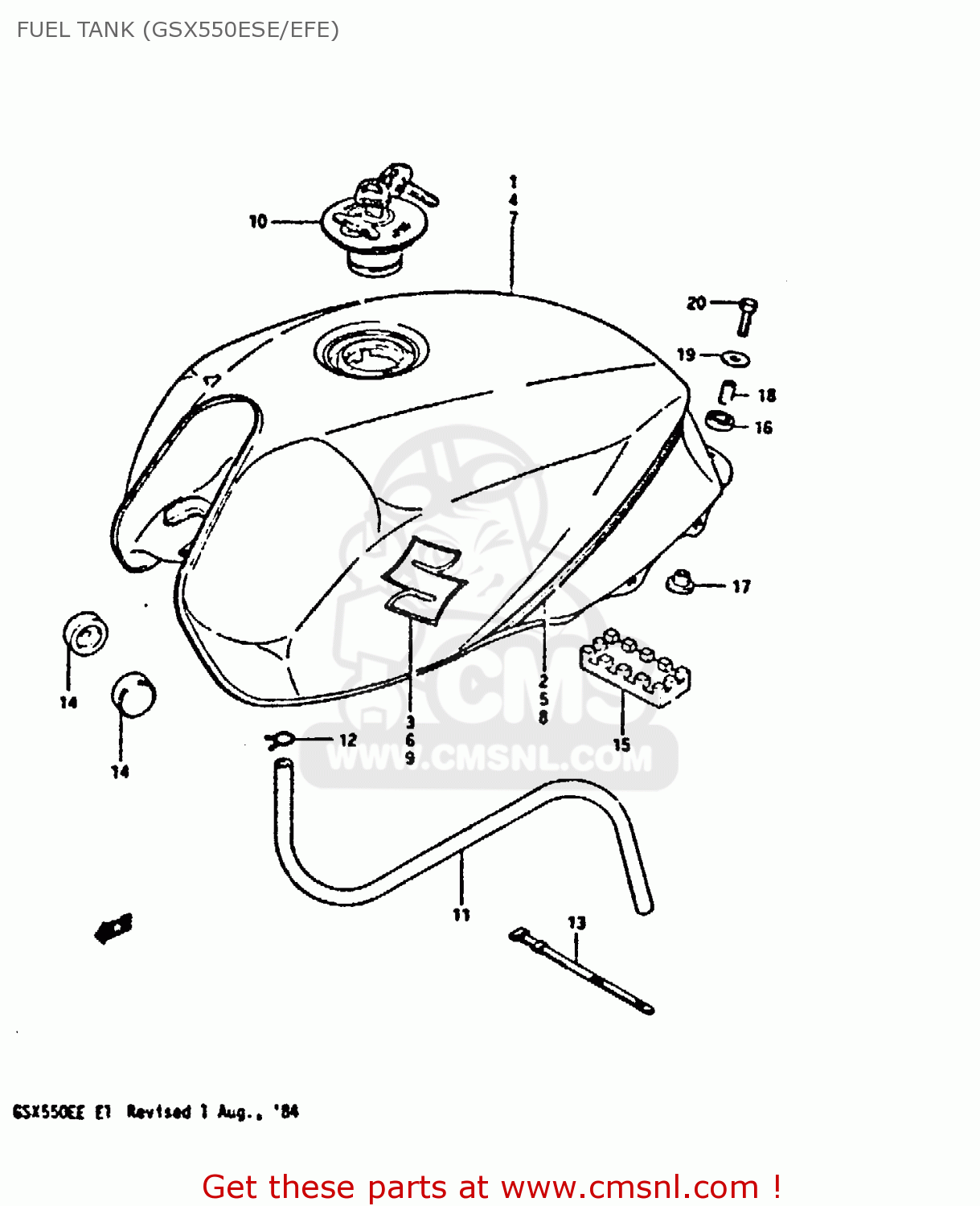

Fuel tank (gsx550ese/efe) diagram GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

FUEL TANK (GSX550ESE/EFE) GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
FUEL TANK (GSX550ESE/EFE) GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
FUEL TANK (GSX550ESE/EFE) GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
441004344091J
ref: 1-1
TANK ASSEMBLY,FUEL
€ 582.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
68110434107AL
ref: 2
TAPE SET,FUEL TANK
€ 18.50
3
681114341073H
ref: 3
EMBLEM
681114341073H
€ 7.50
4
441004344099K
ref: 4
GSX550ESE
TANK ASSY, FUEL
€ 582.00
5
68110434107AM
ref: 5
GSX550ESE
TAPE SET, FUEL TANK
€ 0.00
6
681114341060D
ref: 6
GSX550ESE
EMBLEM
€ 6.00
7-1
441004344086S
ref: 7-1
GSX550EFE
TANK ASSY, FUEL
€ 582.00
7-2
NOTUSED
ref: 7-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
68110434107AN
ref: 8
GSX550EFE
TAPE SET, FUEL TANK
€ 24.00
9
681114341071P
ref: 9
GSX550EFE
EMBLEM
681114341071P
€ 6.00
10
4420043410KEY
ref: 10
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
11
0934305165
ref: 11
HOSE,FUEL
0934305165
€ 13.00
12
0940108402
ref: 12
CLIP
0940108402
€ 1.50
13
0940718401
ref: 13
CLAMP(L:187)
0940718401
€ 2.00
14
0932910007
ref: 14
CUSHION
0932910007
€ 3.00
15
4454143400
ref: 15
CUSHION,FUEL TANK
4454143400
€ 7.50
16
0932014013
ref: 16
CUSHION
0932014013
€ 3.00
17
0932010020
ref: 17
CUSHION
0932010020
€ 4.00
18
0918006107
ref: 18
SPACER (6.4X9X20)
0918006107
€ 3.00
19
0916006004
ref: 19
WASHER (6.5X24X1.6)
0916006004
€ 1.50
20
0110706308
ref: 20
BOLT
0110706308
€ 2.50
