SEAT TAIL COVER (GSX550EE)

GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

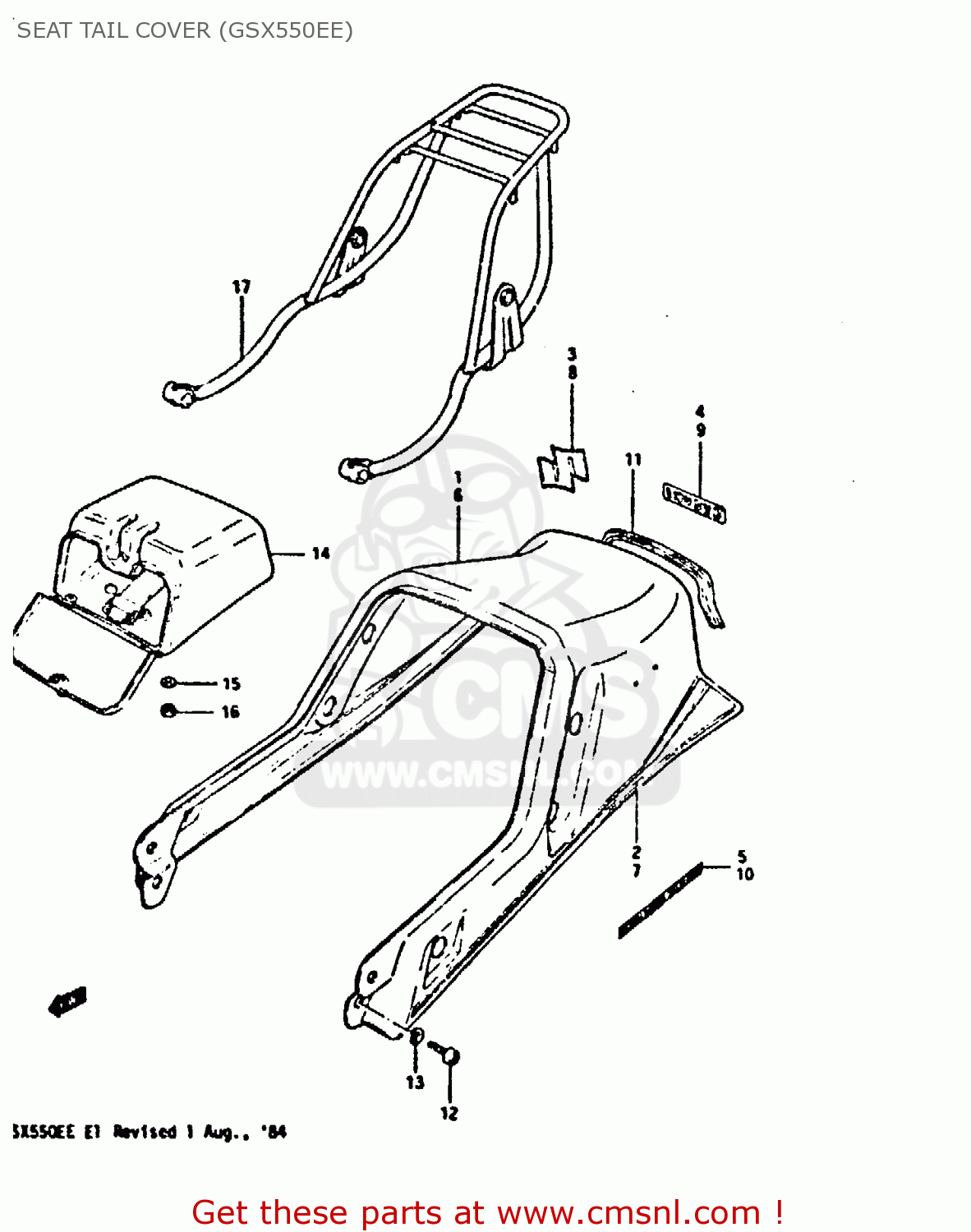

Seat tail cover (gsx550ee) diagram GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

SEAT TAIL COVER (GSX550EE) GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
SEAT TAIL COVER (GSX550EE) GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
SEAT TAIL COVER (GSX550EE) GSX550ES 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39
prices are in EUR
ref
part #
description
quantity
1-1
455104344013Z
ref: 1-1
TAIL COVER, SEAT (BLACK)
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
681604342071P
ref: 2
TAPE SET, SEAT TAIL COVER
€ 0.00
3
681664341071P
ref: 3
EMBLEM, "S" MARK
€ 4.00
4
681663130076A
ref: 4
EMBLEM (GOLD)
€ 0.00
5
682353130091R
ref: 5
EMBLEM
€ 12.00
6-1
455104344007P
ref: 6-1
TAIL COVER, SEAT (RED)
€ 186.50
6-2
NOTUSED
ref: 6-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
681604342060D
ref: 7
TAPE SET, SEAT TAIL COVER
€ 0.00
8
681664341060D
ref: 8
EMBLEM,SEAT TAIL (S)
681664341060D
€ 4.50
9
6816631300064
ref: 9
EMBLEM(WHITE)
6816631300064
€ 3.50
10
682353130091R
ref: 10
EMBLEM
€ 12.00
11
4556243401
ref: 11
BLIND,SEAT TAIL COVER
€ 5.50
12
0211206168
ref: 12
SCREW
0211206168
€ 2.50
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
9499043400
ref: 14
BOX,SEAT TAIL
€ 30.50
15
0916906010
ref: 15
WASHER
0916906010
€ 3.00
16
0831931068
ref: 16
NUT
0831931068
€ 2.50
17
4631043400
ref: 17
OPT
CARRIER, SPORTS
€ 75.50
