HEADLAMP (MODEL K3)
GSX600F KATANA 2003 (K3) USA (E03)

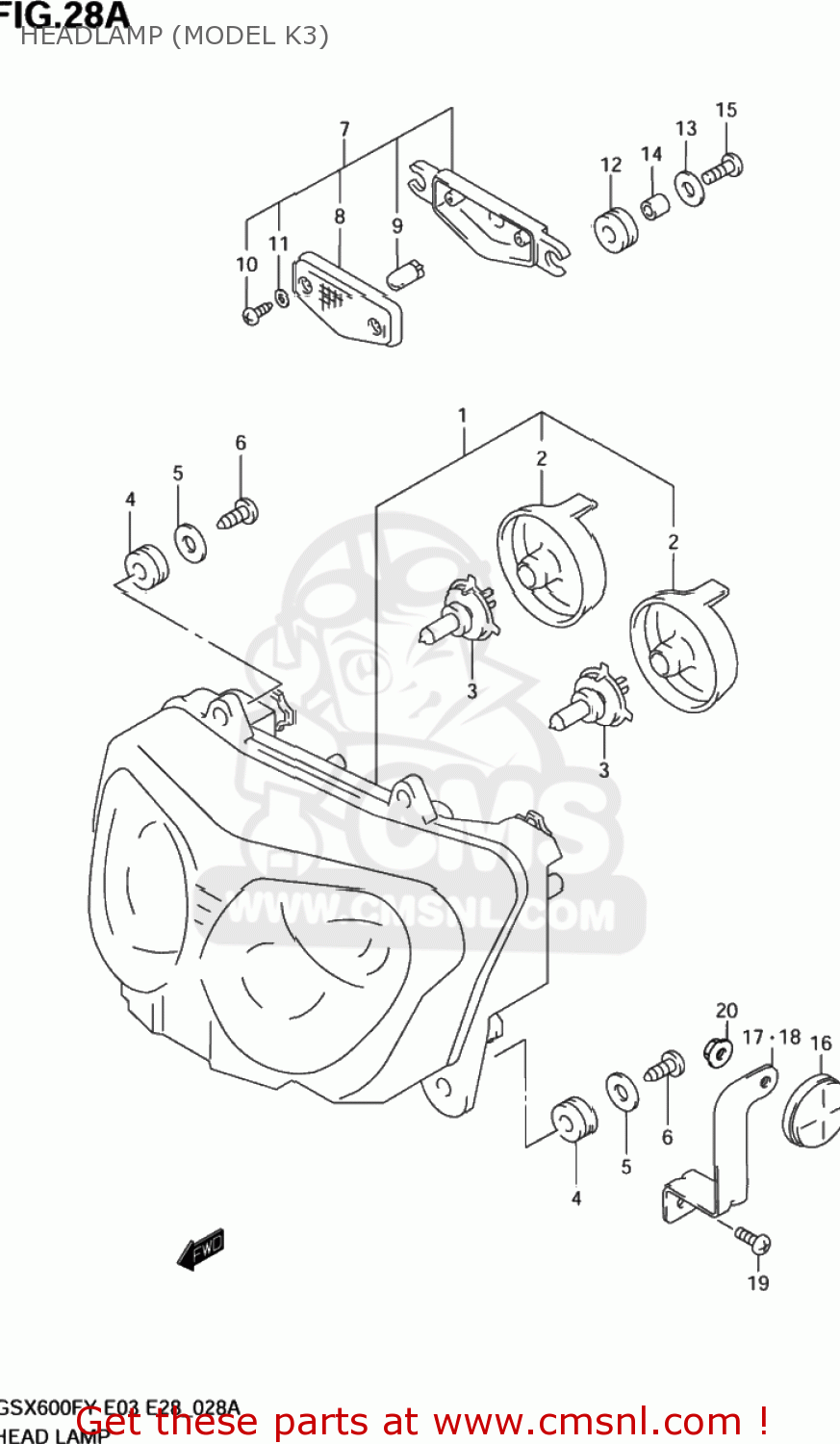

Headlamp (model k3) diagram GSX600F KATANA 2003 (K3) USA (E03)
HEADLAMP (MODEL K3) GSX600F KATANA 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510008F30999
ref: 1
HEADLAMP ASSY
€ 0.00
2
3512574F00
ref: 2
COVER,SOCKET
€ 11.50
3
0947112185
ref: 3
09471-12060
BULB(12V60/55W,H4)
€ 8.00
4
3513733E00
ref: 4
CUSHION,HEADLAMP
€ 3.00
5
0916005045
ref: 5
WASHER(5.5X18X1)
€ 2.00
6
0351205163
ref: 6
03511-0516A
SCREW
€ 2.50
7
3611008F00
ref: 7
LAMP ASSY,FR POSITION
€ 59.50
8
3611208F00
ref: 8
LENS
€ 9.50
9
0947112081
ref: 9
BULB(12V5W)
€ 1.50
10
0321104123
ref: 10
03211-0412A
SCREW
€ 1.50
11
3512837B00
ref: 11
WASHER
€ 3.50
12
0932008001
ref: 12
CUSHION
€ 3.50
13
0916005045
ref: 13
WASHER(5.5X18X1)
€ 2.00
14
0918005048
ref: 14
SPACER(5.5X8X10.5)
€ 2.00
15
0214205203
ref: 15
02142-0520B
SCREW 5X20
€ 2.00
16
3595014A00
ref: 16
REFLECTOR,REFLEX FR
€ 15.00
17
3595608F01
ref: 17
BRACKET,FR SIDE
€ 4.50
18
3595708F01
ref: 18
BRACKET,FR SIDE RR,L
€ 6.50
19
0214205103
ref: 19
02142-0510B
SCREW
€ 2.50
20
0831610053
ref: 20
08316-1005A
NUT
€ 2.50
