UNDER COWLING

GSX600F KATANA 2003 (K3) USA (E03)

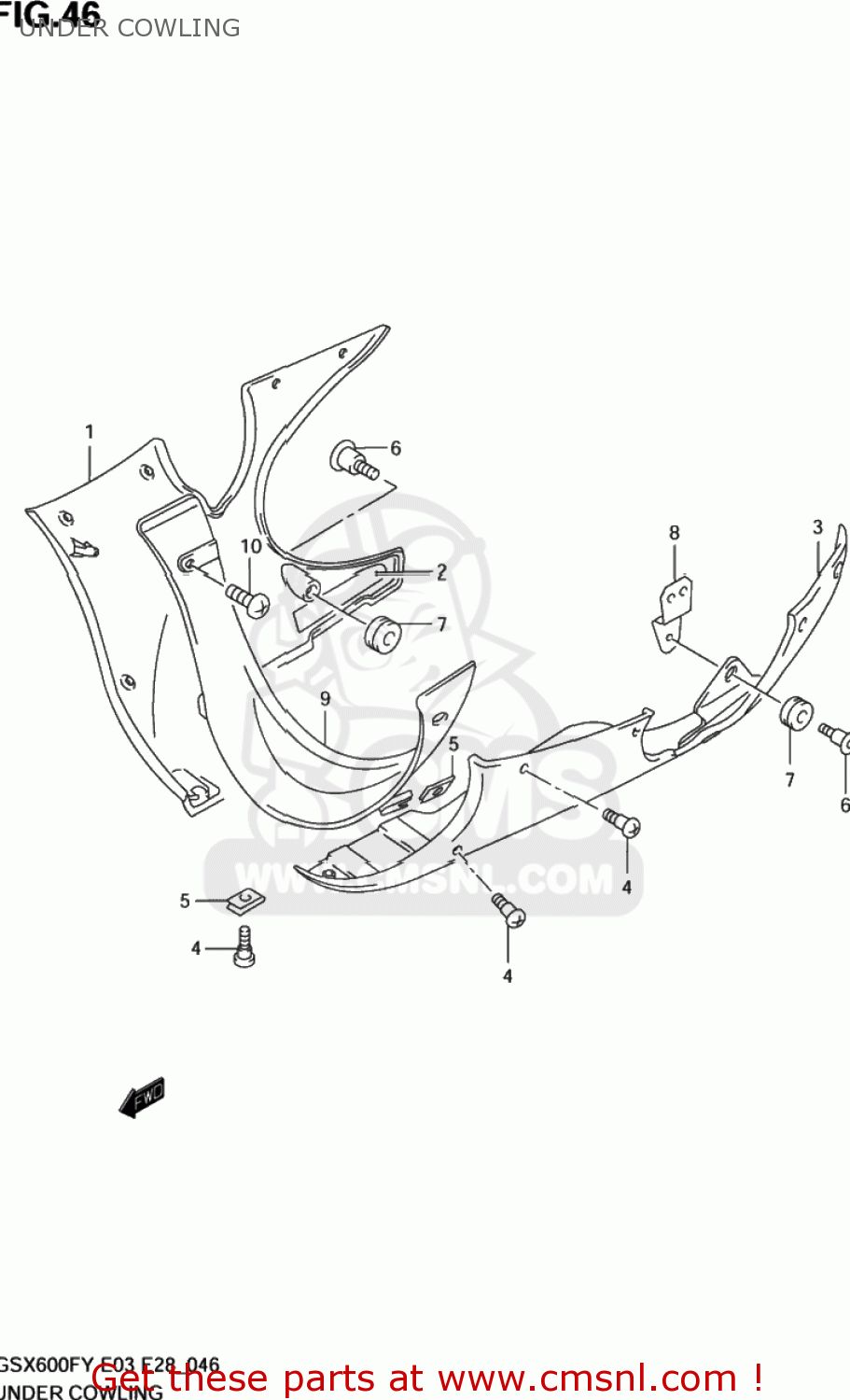

Under cowling diagram GSX600F KATANA 2003 (K3) USA (E03)

UNDER COWLING GSX600F KATANA 2003 (K3) USA (E03)

UNDER COWLING GSX600F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9447008F00Y4P
ref: 1-1

COWLING,UNDER,R(GRAY)

€ 737.50

1-2

9447008F00Y7L
ref: 1-2

COWLING,UNDER,R(BLACK)

€ 148.50

1-3

9447008F00YD8
ref: 1-3

COWLING,UNDER,R(SILVER)

€ 239.00

1-4

9447008F00YC2
ref: 1-4

COWLING,UNDER,R(BLUE)

€ 148.50

1-5

9447008F00YU9
ref: 1-5

COWLING,UNDER,R(YELLOW)

€ 148.50

2

9447208F00
ref: 2

SHIELD,COWLING UNDER,R NO.1

€ 9.00

3-1

9448108F00Y4P
ref: 3-1

COWLING,UNDER,L

€ 168.50

3-2

9448108F00Y7L
ref: 3-2

COWLING,UNDER,L

€ 168.50

3-3

9448108F00YD8
ref: 3-3

COWLING,UNDER,L(SILVER)

€ 175.00

3-4

9448108F00YC2
ref: 3-4

COWLING,UNDER,L(BLUE)

€ 168.50

3-5

9448108F00YU9
ref: 3-5

COWLING,UNDER,L

€ 135.00

4

0913905054
ref: 4

SCREW(5X16)

€ 6.00

5-1

9448432B00
ref: 5-1
94484-24F00

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

5-2

9448424F00
ref: 5-2

NUT,COWL

€ 4.00

6-1

0913906087
ref: 6-1
09139-06126

SCREW(6X20)

€ 4.00

6-2

0913906126
ref: 6-2

SCREW(6X20)

€ 4.00

7

0932009016
ref: 7

CUSHION

€ 2.50

8

9457008F00
ref: 8

BRACKET,UNDER COWL,L & FRAME

€ 7.00

9

9447508F00
ref: 9

COWLING,UNDER CTR

€ 54.00

10

0354105123
ref: 10
03541-0512A

SCREW

€ 2.00
