REAR FENDER (MODEL W/X/Y/K1/K2)

GSX600F KATANA 2003 (K3) USA (E03)

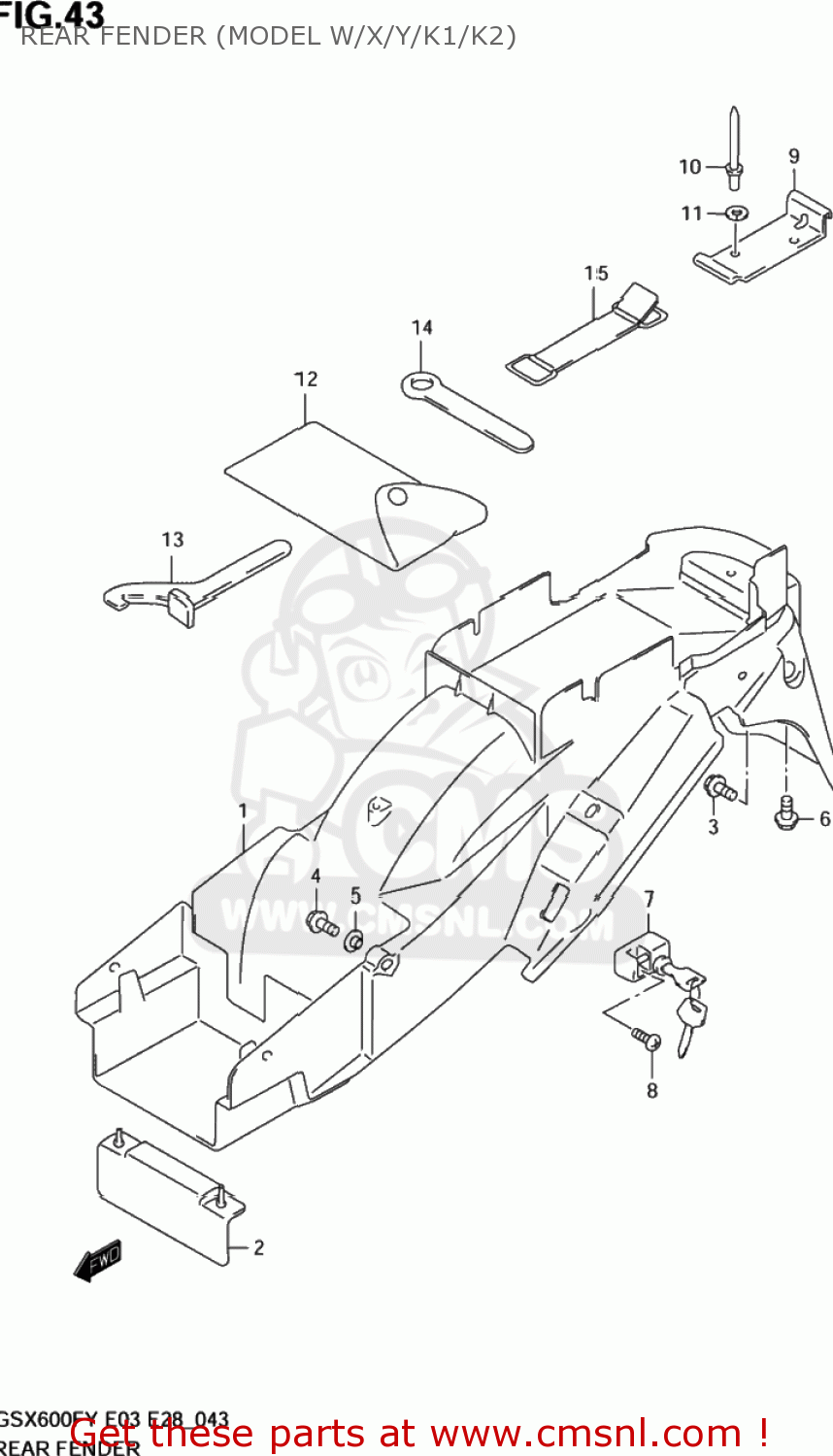

Rear fender (model w/x/y/k1/k2) diagram GSX600F KATANA 2003 (K3) USA (E03)

REAR FENDER (MODEL W/X/Y/K1/K2) GSX600F KATANA 2003 (K3) USA (E03)

REAR FENDER (MODEL W/X/Y/K1/K2) GSX600F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311108F30
ref: 1

FENDER,RR

€ 0.00

2

6341108F00
ref: 2

MUDGUARD,RR FENDER FR

€ 9.00

3-1

0911106066
ref: 3-1

BOLT(6X16)

€ 2.50

3-2

0911306001
ref: 3-2

BOLT(6X16)

€ 3.00

4

0155006163
ref: 4
01550-0616A

BOLT

€ 2.50

5

0916906071
ref: 5

WASHER

€ 2.50

6-1

0911606144
ref: 6-1
09116-06165

BOLT 6X16

€ 2.50

6-2

0911606165
ref: 6-2

BOLT(6X16)

€ 2.50

7

9570044820
ref: 7
95700-41821

LOCK SET,HELMET

€ 88.00

8

0913906089
ref: 8

SCREW(6X14)

€ 2.50

9

6346602F00
ref: 9

HOLDER,TOOL

€ 7.50

10

0922904020
ref: 10

RIVET

€ 2.50

11

0832201043
ref: 11
08322-0104A

WASHER

€ 5.00

12

0980021036
ref: 12

TOOL ASSY

€ 28.50

13

0982200005
ref: 13

CLAMP

€ 22.00

14

0981600102
ref: 14

SPANNER,HEXAGON

€ 2.50

15-1

4743502F00
ref: 15-1
47435-02F01

BAND,TOOL

€ 7.00

15-2

4743502F01
ref: 15-2

BAND,TOOL

€ 7.00
