STARTING MOTOR (MODEL W/X/Y)

GSX600F KATANA 2003 (K3) USA (E03)

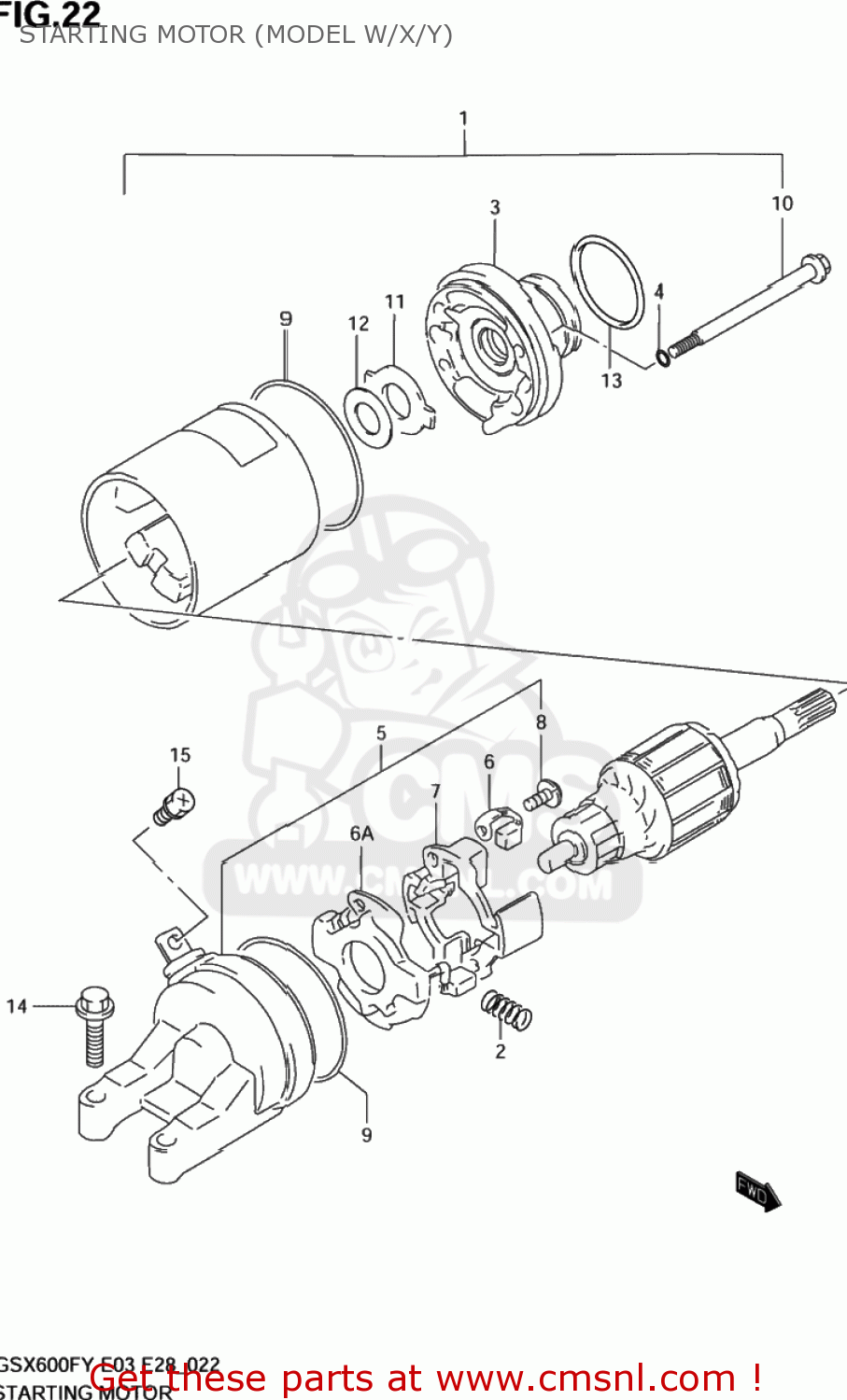

Starting motor (model w/x/y) diagram GSX600F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110032C11
ref: 1
31100-08F00

MOTOR ASSEMBLY,STARTING

€ 999.00

3113532C10
ref: 2

SPRING

€ 3.50

3115006C00
ref: 3

BRACKET

€ 112.00

3115638300
ref: 4

O RING

€ 3.00

3117532C11
ref: 5

FRAME ASSY,COMMUTATOR END

€ 87.50

3113232C10
ref: 6

BRUSH

€ 14.50

3113032C20
ref: 6A

BRUSH SUB ASSY,STARTER

€ 28.00

3113332C10
ref: 7

HOLDER,BRUSH

€ 9.00

0211234123
ref: 8
02112-3412B

SCREW

€ 2.00

3126432C10
ref: 9

O RING

€ 9.00

3128132C10
ref: 10

BOLT

€ 8.50

3136132C10
ref: 11

PLATE,LOCK

€ 2.50

3136138300
ref: 12

SHIM

€ 1.50

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

0912806024
ref: 14
09103-06212

SCREW (6X25)

€ 2.50

0913705004
ref: 15

SCREW(5X8)

€ 2.00
