SPEEDOMETER (MODEL Y)
GSX600F KATANA 2003 (K3) USA (E03)

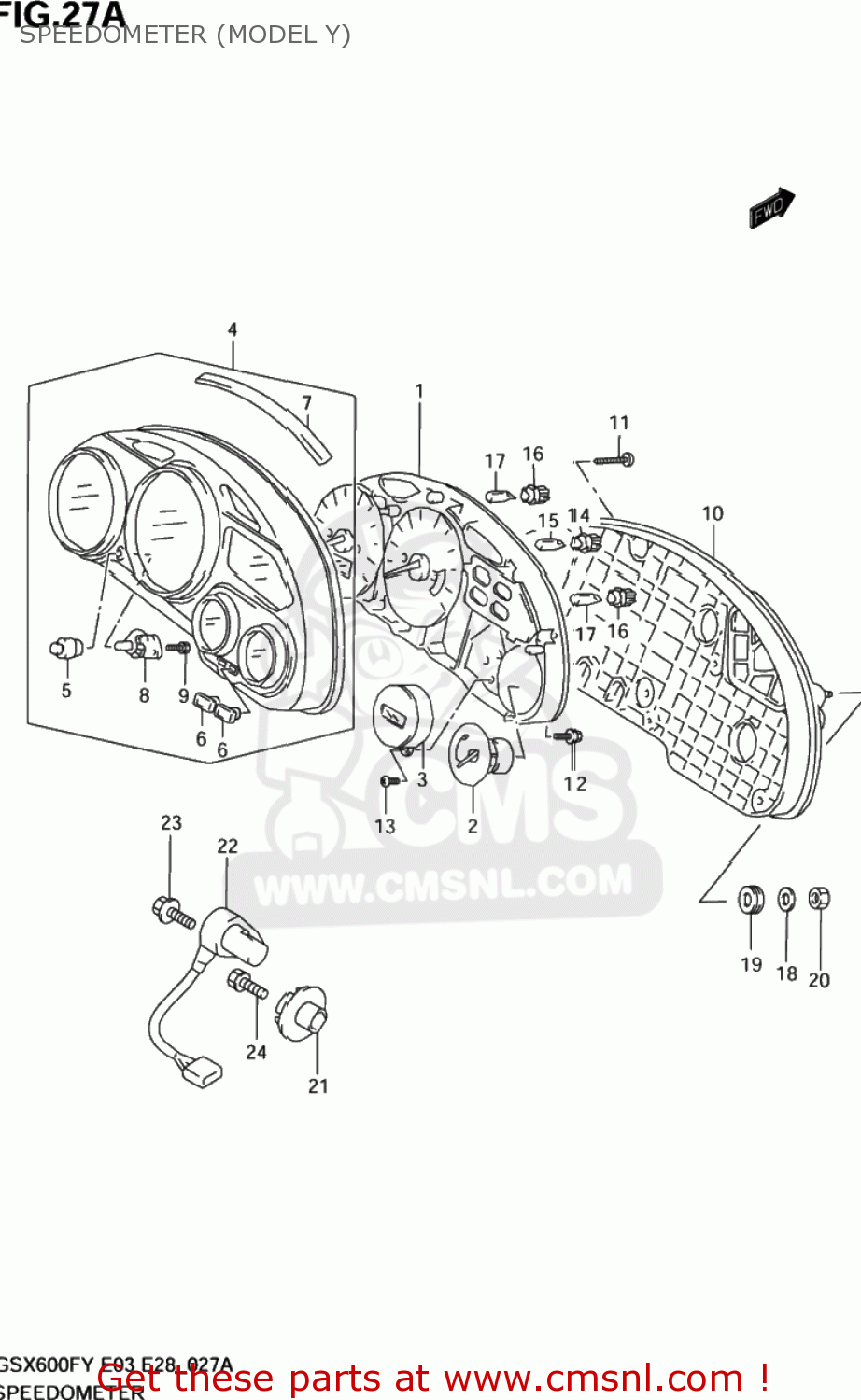

Speedometer (model y) diagram GSX600F KATANA 2003 (K3) USA (E03)
SPEEDOMETER (MODEL Y) GSX600F KATANA 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412008F60
ref: 1-1
SPEEDOMETER
€ 678.00
1-2
3412008F50
ref: 1-2
SPEEDOMETER
€ 742.00
2
3432008F50
ref: 2
FUEL,METER
€ 91.00
3
3472008F50
ref: 3
CLOCK ASSY
€ 89.50
4
3415008F50
ref: 4
VISOR ASSY
€ 80.50
5
3412433E00
ref: 5
SWITCH,GUM
€ 5.50
6
3466121EA0
ref: 6
SWITCH,GUM
€ 3.50
7
3415321EA0
ref: 7
PACKING (NAS)
€ 10.00
8
3412333E00
ref: 8
ATTACHMENT,SWITCH
€ 6.50
9
0913203005
ref: 9
SCREW(3X10)
€ 1.50
10
3413021EA1
ref: 10
CASE ASSY
€ 87.00
11
0354104203
ref: 11
03541-0420A
SCREW
€ 2.50
12
0211273207
ref: 12
SCREW
€ 2.00
13
0351104163
ref: 13
03511-0416A
SCREW
€ 1.50
14
3417233E00
ref: 14
SOCKET(T:6.5)
€ 5.00
15
0947112108
ref: 15
BULB(12V1.7W,T6.5)
€ 2.00
16
3417578900
ref: 16
SOCKET
€ 3.50
17
0947112055
ref: 17
BULB(14V1.4W,T5)
€ 4.50
18
0916006054
ref: 18
WASHER(6.5X22X1.6)
€ 2.00
19
0932008053
ref: 19
CUSHION
€ 5.00
20
0831000063
ref: 20
08310-0006A
NUT 6MM
€ 2.00
21-1
3498142E00
ref: 21-1
34981-42E01
ROTOR,SPEED
€ 16.00
21-2
3498135F00
ref: 21-2
34981-38G01
ROTOR,SPEED
€ 15.00
22
3499033E10
ref: 22
34990-35F00
SENSOR,SPEED
€ 112.50
23
0712005123
ref: 23
07120-0512B
BOLT
€ 2.00
24-1
0713008203
ref: 24-1
07130-0820B
BOLT
€ 3.00
24-2
0713008253
ref: 24-2
07130-0825B
BOLT
€ 3.50
