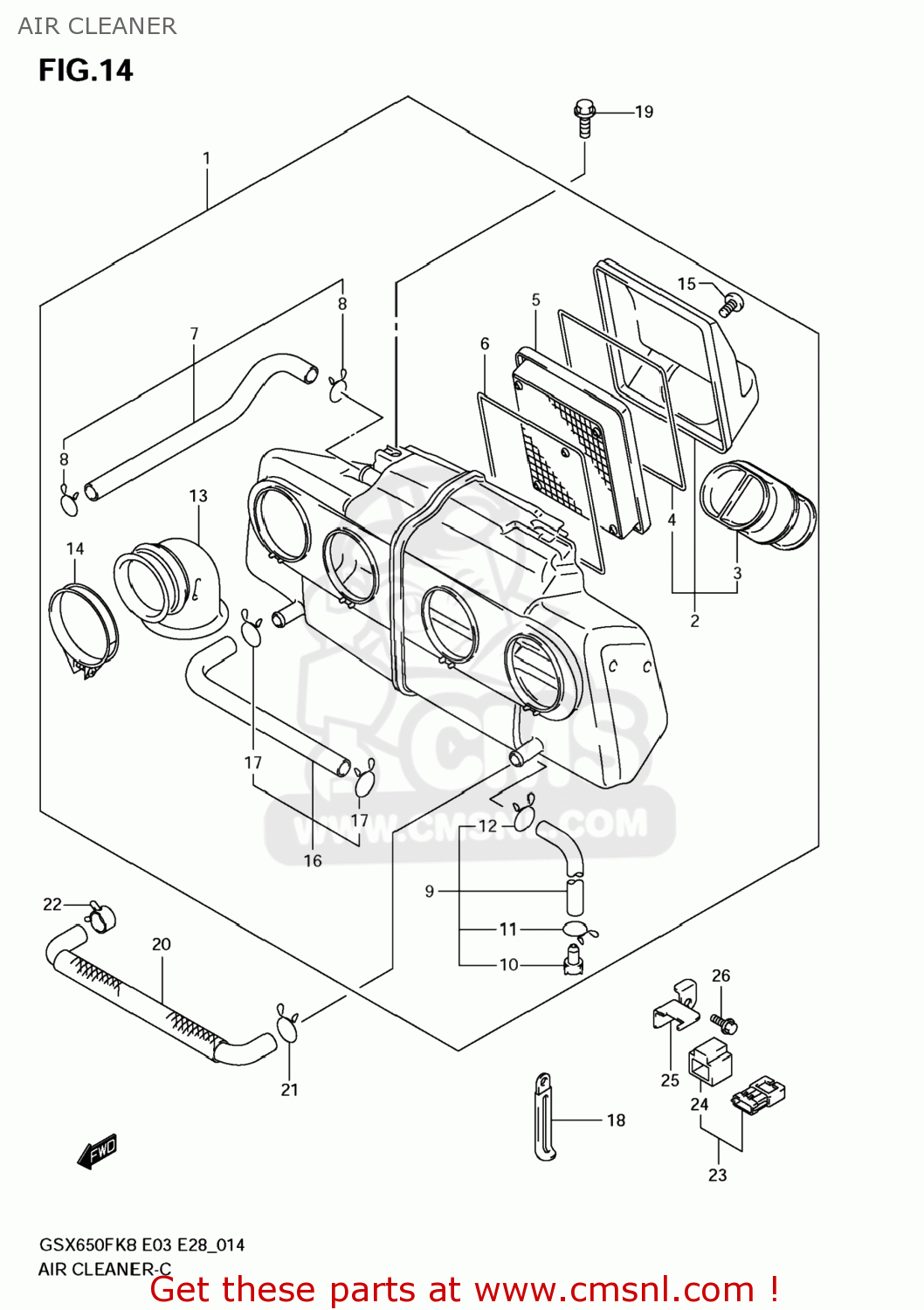

AIR CLEANER

ref

part #

description

quantity

1

1370017H00
ref: 1

CLEANER ASSY,A

€ 312.50

2

1374017H00
ref: 2

CAP,AIR CLEANER

€ 48.00

3

1389117H00
ref: 3

TUBE,INLET

€ 22.50

4

1374618H00
ref: 4

GASKET (NAS)

€ 11.00

5

1378018H00
ref: 5

FILTER ASSY

€ 24.50

6

1374618H00
ref: 6

GASKET (NAS)

€ 11.00

7

1385018H00
ref: 7

TUBE,BREATHER

€ 20.00

8

0940115101
ref: 8

CLIP

€ 2.00

9

1387018H00
ref: 9

TUBE,DRAIN

€ 21.00

10

1387700190
ref: 10

PLUG

€ 3.50

11

0940115101
ref: 11

CLIP

€ 2.00

12

0940113409
ref: 12

CLIP

€ 2.50

13

1388117H00
ref: 13

TUBE,OUTLET

€ 16.50

14

0940254208
ref: 14

CLAMP

€ 5.00

15

021420512A
ref: 15

SCREW

€ 1.50

16

1391018H00
ref: 16

TUBE

€ 21.00

17

0940115101
ref: 17

CLIP

€ 2.00

18

0940410417
ref: 18

CLAMP(L:97)

€ 2.50

19

015500612B
ref: 19

BOLT

€ 2.50

20

1369718H00
ref: 20

HOSE,ISC VALVE

€ 22.00

21

0940115101
ref: 21

CLIP

€ 2.00

22

0940117401
ref: 22

CLIP

€ 2.00

23

1563029G20
ref: 23

SENSOR,BOOST

€ 180.50

24

1562529G10
ref: 24

COVER

€ 7.00

25

1316618H00
ref: 25

BRACKET,BOOST SENSOR

€ 6.50

26

015500612A
ref: 26

BOLT

€ 2.50

all assemblies
