METER PANEL

GSX650F 2008 (K8) USA (E03)

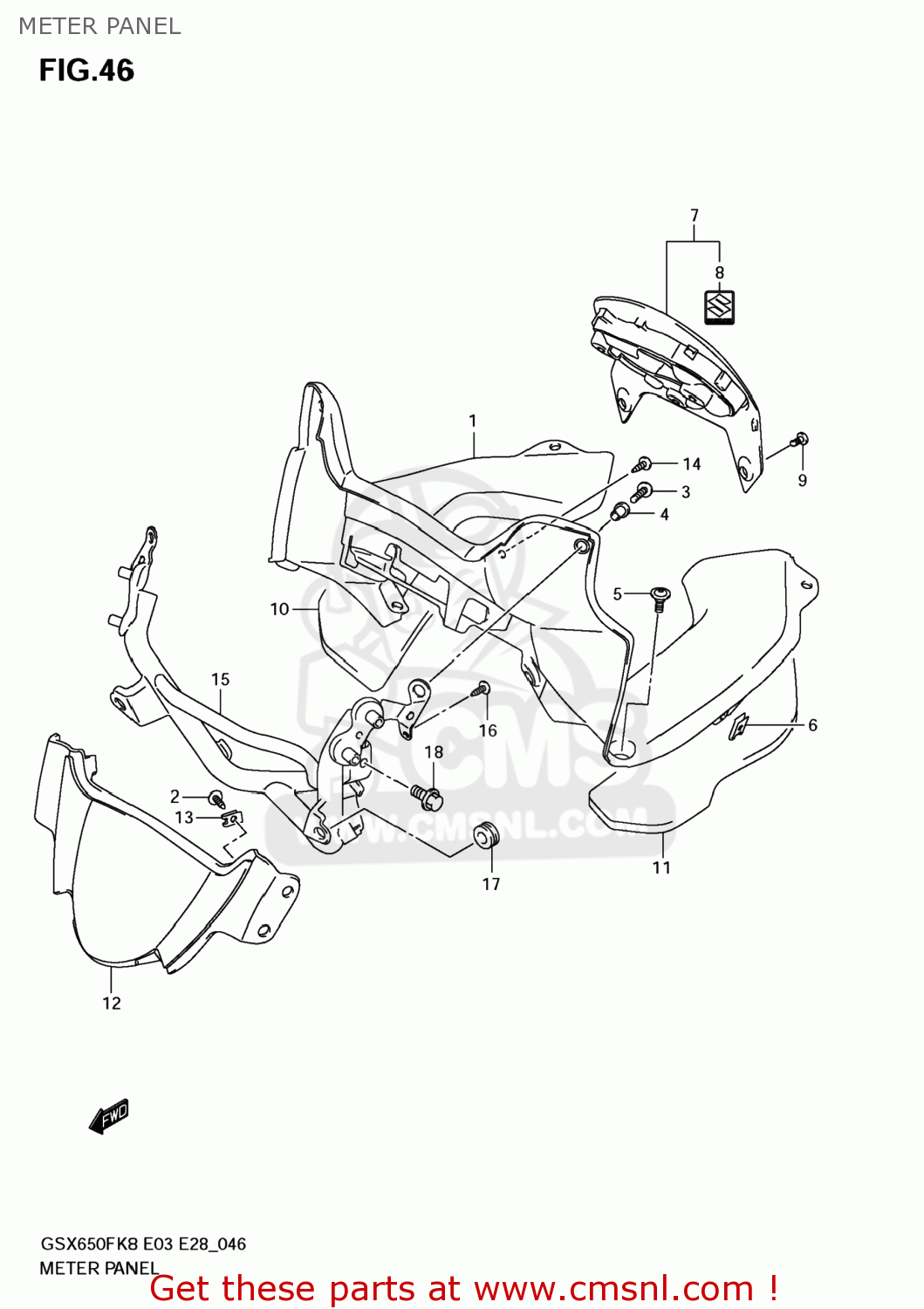

Meter panel diagram GSX650F 2008 (K8) USA (E03)

METER PANEL GSX650F 2008 (K8) USA (E03)

METER PANEL GSX650F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9467117H00
ref: 1

PANEL,METER

€ 101.50

2

035411516B
ref: 2

SCREW

€ 2.00

3

021421520B
ref: 3

SCREW

€ 2.00

4

0915905019
ref: 4

NUT

€ 5.50

5

0913905074
ref: 5

BOLT(5X13)

€ 3.00

6

0914805052
ref: 6

NUT

€ 3.50

7

9464017H00
ref: 7

LID,METER PANEL

€ 45.00

8

6828135F00
ref: 8

EMBLEM,S

€ 13.00

9

0913906114
ref: 9

SCREW(6X28)

€ 5.50

10

9467417H00
ref: 10

CUSHION,PANEL,R

€ 16.50

11

9468417H00
ref: 11

CUSHION,PANEL,L

€ 16.50

12

9467217H00
ref: 12

PANEL,METER FR

€ 27.50

13

0914805038
ref: 13

NUT

€ 2.50

14

035411516B
ref: 14

SCREW

€ 2.00

15

9451017H00
ref: 15

BRACE,COWLING

€ 355.50

16

032410516B
ref: 16

SCREW

€ 1.50

17

0932008028
ref: 17

CUSHION

€ 2.50

18

015500820B
ref: 18

BOLT

€ 3.00
