STARTING MOTOR
GSX650F 2008 (K8) USA (E03)

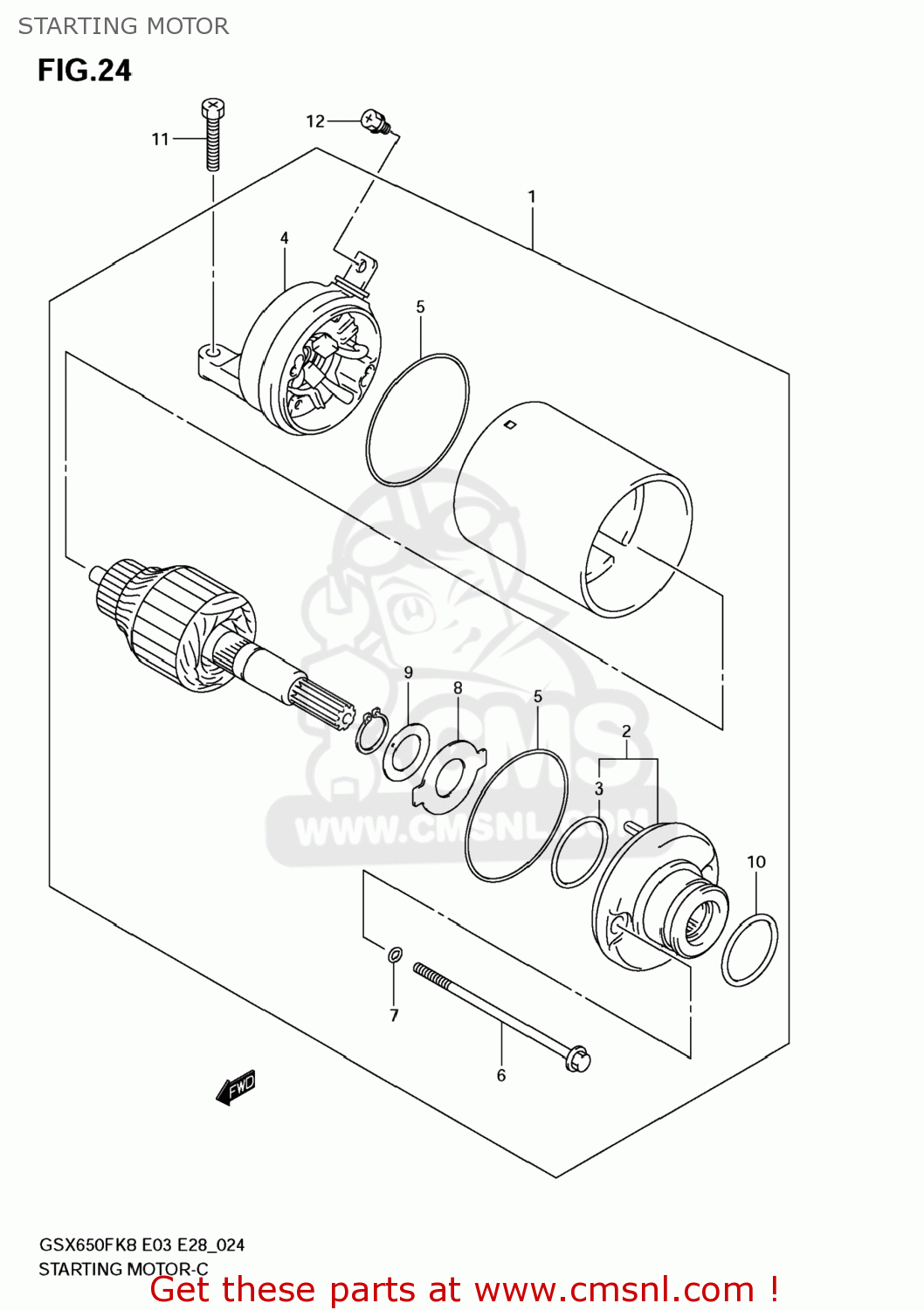

Starting motor diagram GSX650F 2008 (K8) USA (E03)
STARTING MOTOR GSX650F 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110017H00
ref: 1
MOTOR ASSY,STARTING
€ 882.50
2
3115008F00
ref: 2
BRACKET
€ 87.50
3
3115349210
ref: 3
SEAL,OIL
€ 15.00
4
3117534E01
ref: 4
FRAME ASSY,COMMUTATOR END
€ 126.50
5
3126432C10
ref: 5
O RING
€ 9.00
6
3128108F00
ref: 6
BOLT
€ 4.50
7
3115608F00
ref: 7
O RING
€ 3.00
8
3136132C10
ref: 8
PLATE,LOCK
€ 2.50
9
3136138300
ref: 9
SHIM
€ 1.50
10
0928024003
ref: 10
O RING(D:3,ID:24.5)
€ 2.00
11
0910306212
ref: 11
BOLT(6X25)
€ 2.50
12
0913705004
ref: 12
SCREW(5X8)
€ 2.00
