REAR FENDER

GSX650F 2008 (K8) USA (E03)

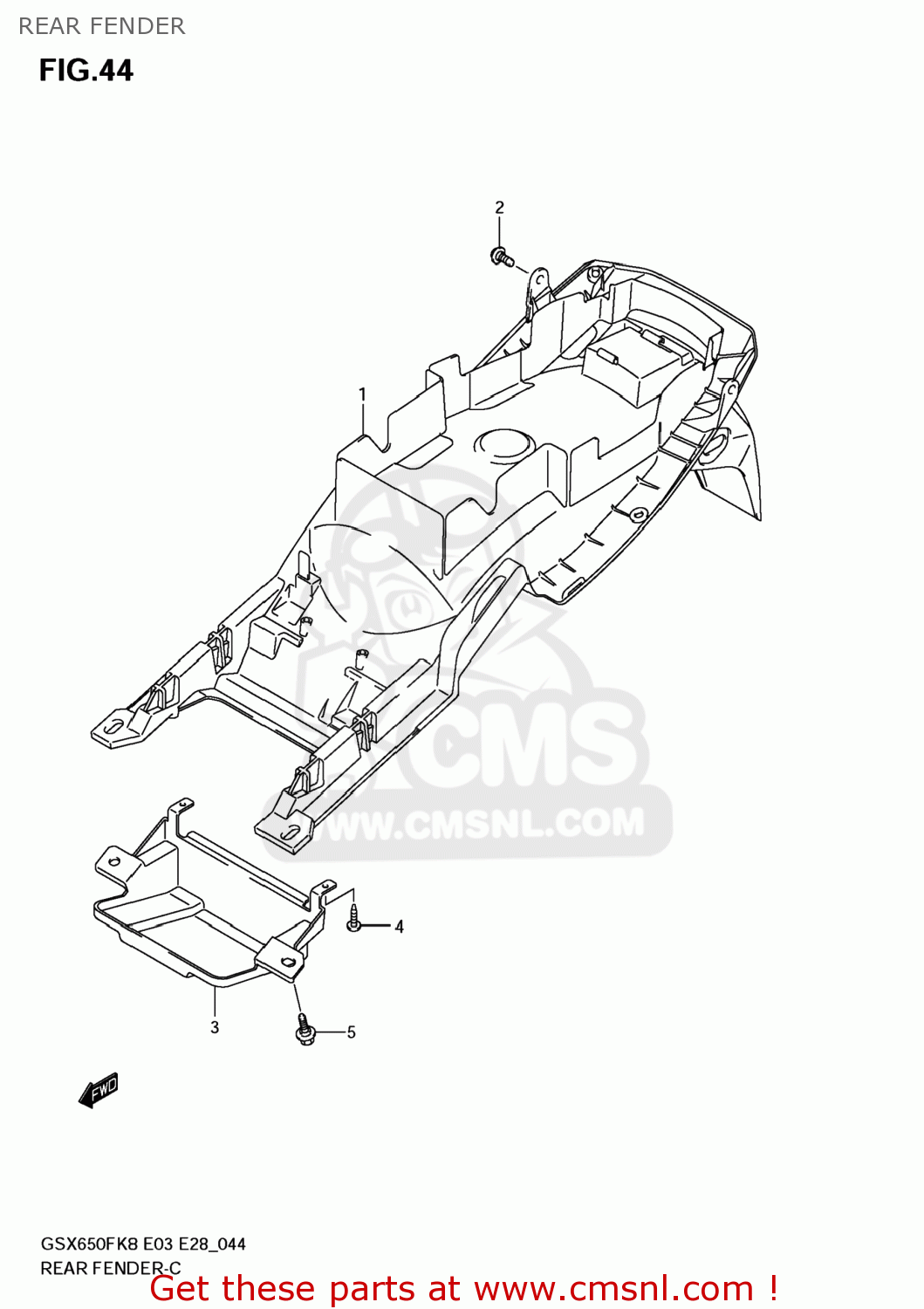

Rear fender diagram GSX650F 2008 (K8) USA (E03)

REAR FENDER GSX650F 2008 (K8) USA (E03)

REAR FENDER GSX650F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311138GB15PK
ref: 1

FENDER,RR

€ 116.00

2

6316143E00
ref: 2

BOLT

€ 3.00

3

5566749G00
ref: 3

COVER

€ 31.00

4

035410516B
ref: 4

SCREW

€ 2.00

5

0911106072
ref: 5

BOLT(6X17.8)

€ 2.00
