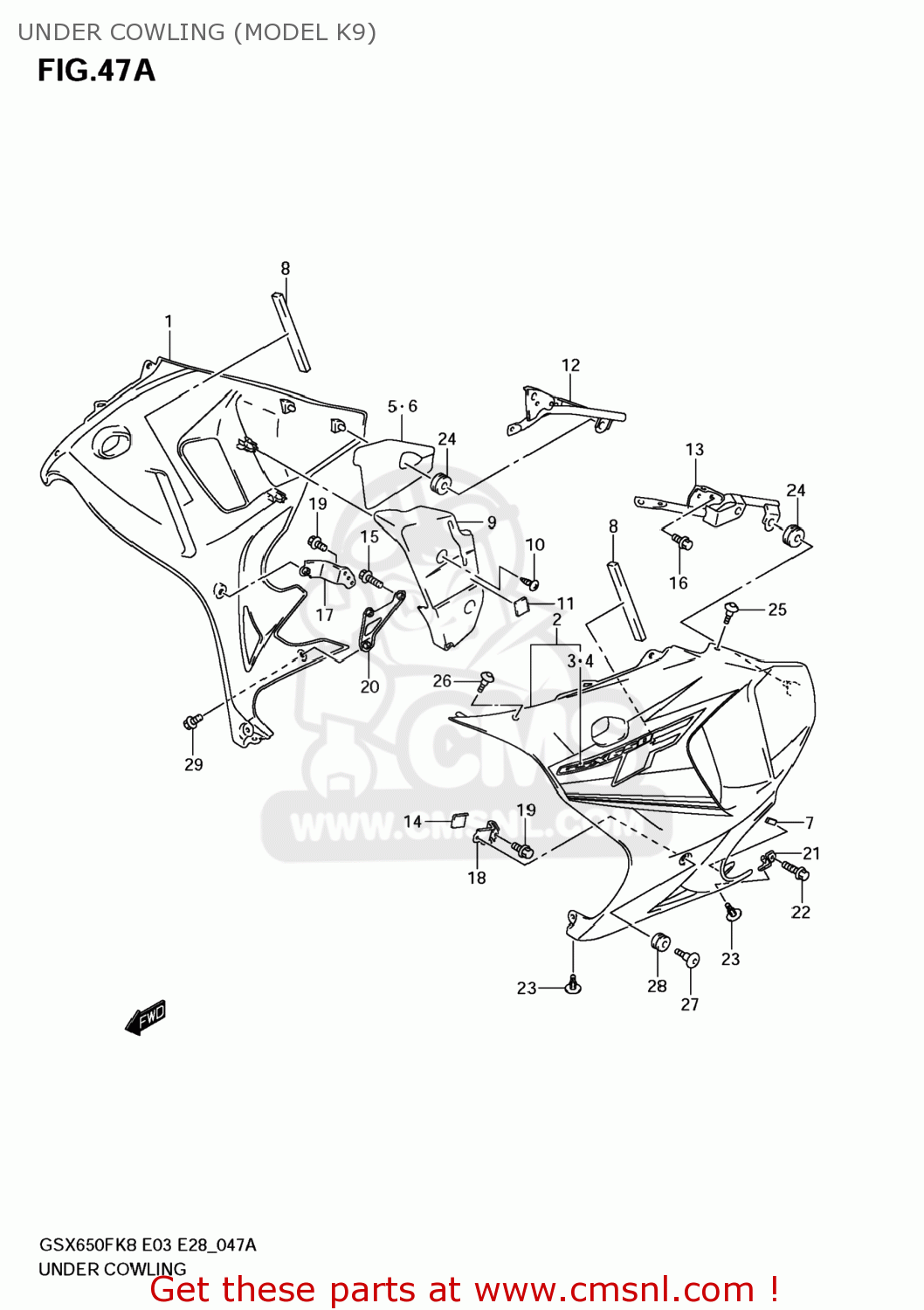

UNDER COWLING (MODEL K9)

ref

part #

description

quantity

1-1

9447017H20EAJ
ref: 1-1

COWLING,UNDER,R

€ 823.00

1-2

9447017H20FKE
ref: 1-2

COWLING,UNDER,R(BLACK)

€ 823.00

1-3

9447017H20GLR
ref: 1-3

COWLING,UNDER,R

€ 823.00

2-1

9448017H20EAJ
ref: 2-1

COWLING,UNDER,L

€ 823.00

2-2

9448017H20FKE
ref: 2-2

COWLING,UNDER,L(BLACK)

€ 823.00

2-3

9448017H20GLR
ref: 2-3

COWLING,UNDER,L

€ 823.00

3-1

6818517H10GRL
ref: 3-1

TAPE,UNDER COWL,R

€ 121.00

3-2

6818517H10GRM
ref: 3-2

TAPE,UNDER COWL,R

€ 121.00

3-3

6818517H10GRN
ref: 3-3

TAPE,UNDER COWL,R

€ 121.00

4-1

6819517H10GRL
ref: 4-1

TAPE,UNDER COWL,L

€ 121.00

4-2

6819517H10GRM
ref: 4-2

TAPE,UNDER COWL,L

€ 121.00

4-3

6819517H10GRN
ref: 4-3

TAPE,UNDER COWL,L

€ 121.00

5

9447217H00
ref: 5

SHIELD,UNDER COWL HEAT,R

€ 14.50

6

9448217H00
ref: 6

SHIELD,UNDER COWL HEAT,L

€ 14.50

7

3365247F00
ref: 7

CUSHION,LICENSE PLATE

€ 2.50

8

9447617H00
ref: 8

CUSHION,UNDER COWLING

€ 4.00

9

9447717H00
ref: 9

PROTECTOR,COWLING UNDER,R

€ 26.50

10

035410512B
ref: 10

SCREW

€ 2.00

11

9447817H00
ref: 11

CUSHION,UNDER COWL ENG,R NO.1

€ 6.00

12

9453017H00
ref: 12

BRACKET,COWLING FITTING,R

€ 49.50

13

9454017H00
ref: 13

BRACKET,COWLING FITTING,L

€ 64.00

14

9447417H00
ref: 14

PROTECTOR,COWLING UNDER

€ 2.00

15

015500620B
ref: 15

BOLT

€ 2.50

16

015500612B
ref: 16

BOLT

€ 2.50

17

9455017H00
ref: 17

BRACKET,UNDER COWLING FR,R

€ 10.00

18

9456017H00
ref: 18

BRACKET,UNDER COWLING FR,L

€ 10.00

19

015500610A
ref: 19

BOLT

€ 2.00

20

9457017H00
ref: 20

BRACKET,UNDER COWLING LWR,R

€ 13.50

21

9458017H00
ref: 21

BRACKET,UNDER COWLING LWR,L

€ 17.50

22

015500620A
ref: 22

BOLT

€ 2.50

23

9447935F00
ref: 23

CLIP

€ 3.50

24

0932008028
ref: 24

CUSHION

€ 2.50

25

0913905077
ref: 25

SCREW(5X16)

€ 3.50

26

0913905064
ref: 26

SCREW(5X13)

€ 2.50

27

0913906126
ref: 27

SCREW(6X20)

€ 4.00

28

0932009016
ref: 28

CUSHION

€ 2.50

29

0913906144
ref: 29

SCREW(6X12)

€ 3.00
