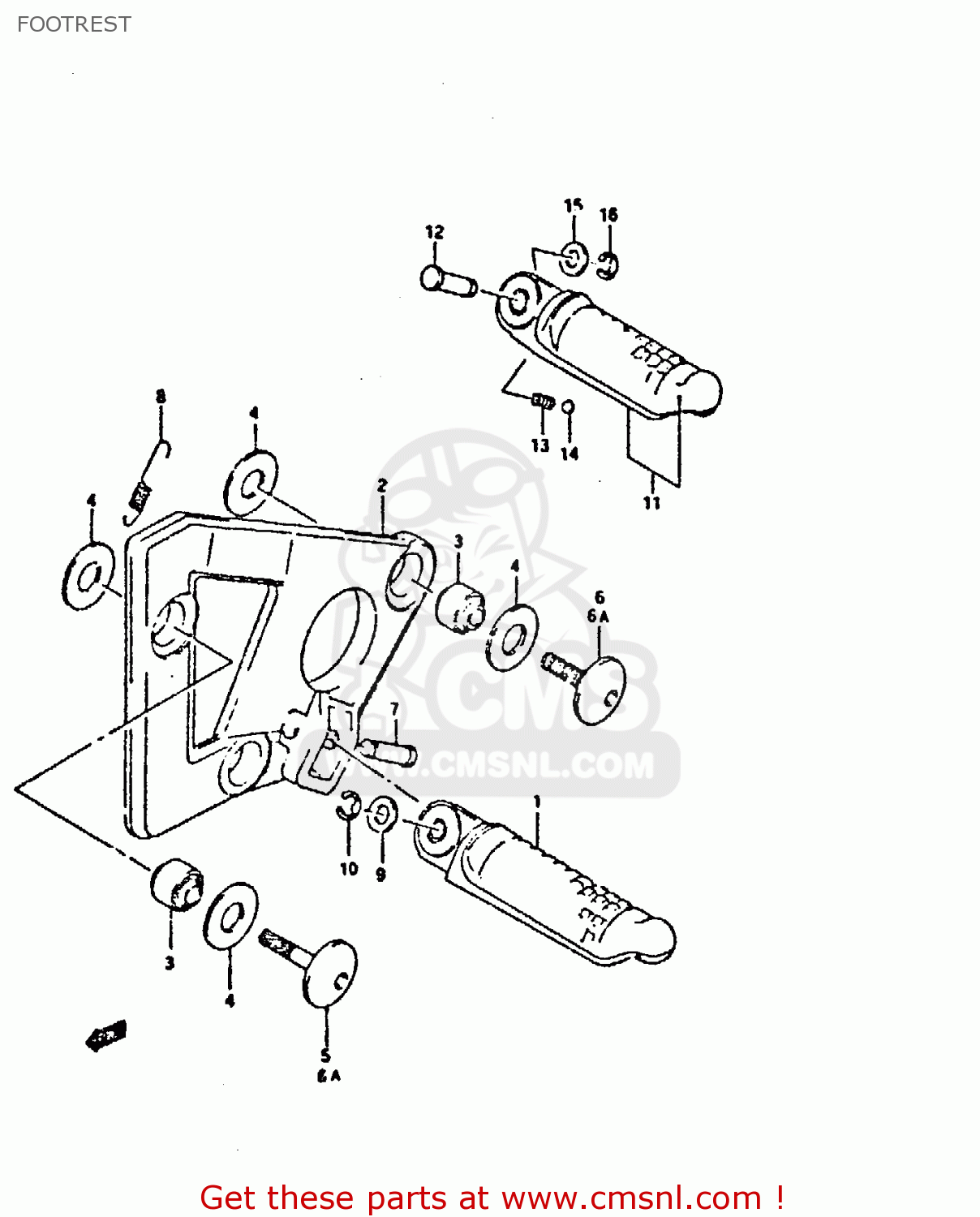

FOOTREST

ref

part #

description

quantity

1-1

4351019C01
ref: 1-1

BAR,FRONT FOOTREST,RIGHT

€ 64.50

1-2

4352019C01
ref: 1-2

BAR,FRONT FOOTREST,LEFT

€ 72.50

2-1

4351720C00
ref: 2-1
MODEL K/L/M/N/P

HOLDER,FRONT FOOTREST

€ 37.00

2-2

4351720C01
ref: 2-2
MODEL R/S

HOLDER,FRONT FOOTREST

€ 37.00

2-3

4352720C00
ref: 2-3
MODEL K/L/M/N/P

HOLDER,FRONT FOOTREST

€ 92.00

2-4

4352720C01
ref: 2-4
MODEL R/S

HOLDER,FR FOOTREST

€ 92.00

3

0931908036
ref: 3

BUSH(12X20X16)

€ 23.50

4

0916112007
ref: 4

WASHER (12X24X1.7)

€ 4.00

5

0910608080
ref: 5
MODEL K/L/M/N/P/R

BOLT L:30

€ 6.00

6

0910608089
ref: 6
MODEL K/L/M/N/P/R

BOLT(8X25)

€ 9.00

6A

0910608080
ref: 6A
MODEL S

BOLT L:30

€ 6.00

7-1

0920808012
ref: 7-1
MODEL K/L/M/N/P/R

PIN

€ 3.00

7-2

0920808010
ref: 7-2
MODEL S

PIN(8X33.2)

€ 3.00

8

0944310037
ref: 8

SPRING

€ 4.50

9-1

0832201087
ref: 9-1
MODEL K/L/M/N/P/R

WASHER

€ 2.00

9-2

0832201083
ref: 9-2
MODEL S

WASHER

€ 1.50

10

0833211063
ref: 10

E.RING

€ 2.00

11-1

4361020C00
ref: 11-1

BAR,PILLION FOOTREST,RIGHT

€ 52.50

11-2

4371020C00
ref: 11-2

BAR,PILLION FOOTREST,LEFT

€ 52.50

12

0920008011
ref: 12

PIN

€ 1.50

13

0944005005
ref: 13

SPRING

€ 1.50

14

0611107004
ref: 14

BALL

€ 1.50

15-1

0832211084
ref: 15-1
MODEL K/L/M/N/P

WASHER

€ 1.50

15-2

0832201083
ref: 15-2
MODEL R/S

WASHER

€ 1.50

16

0833211063
ref: 16

E.RING

€ 2.00
