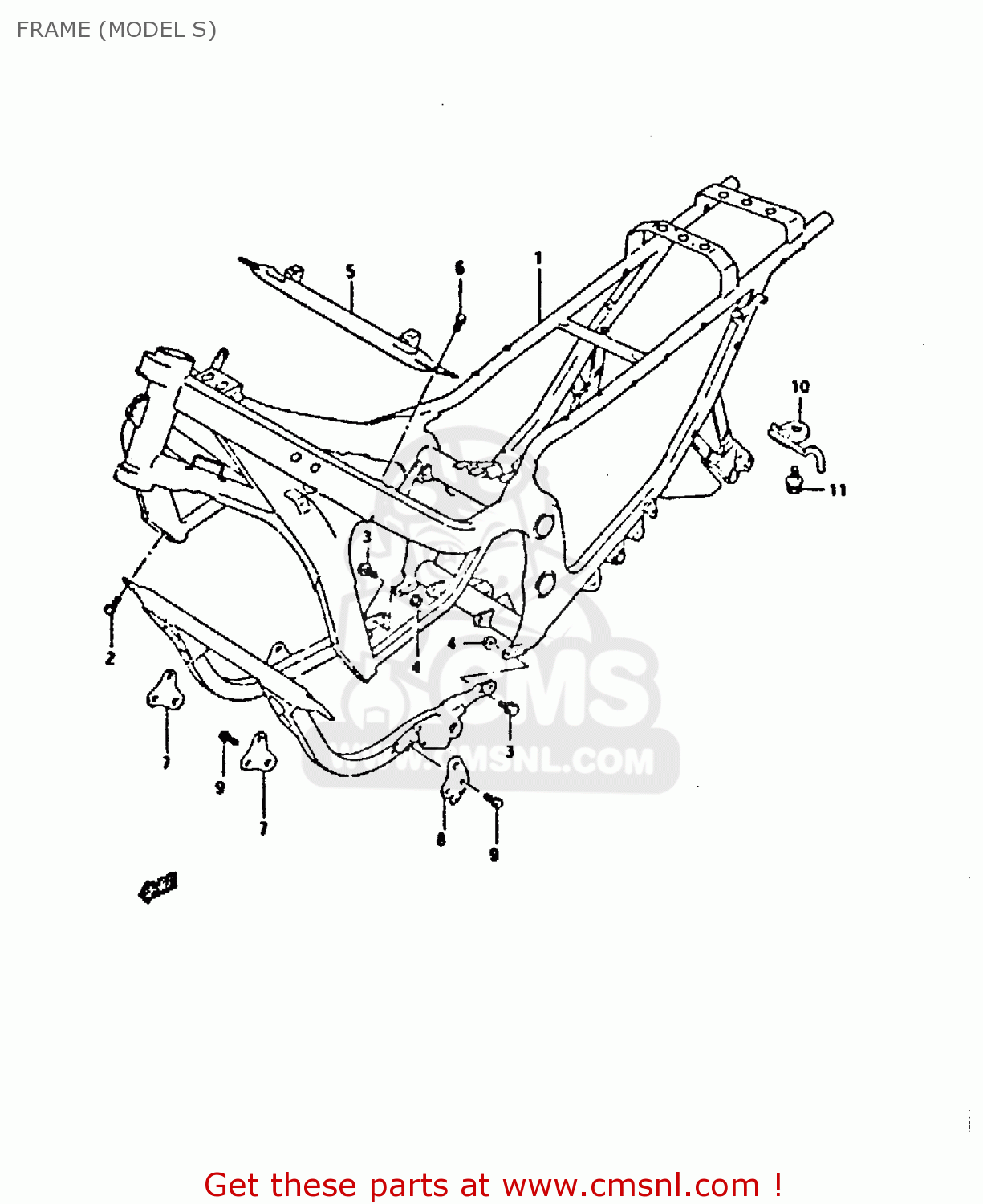

FRAME (MODEL S)

GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

Frame (model s) diagram GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

FRAME (MODEL S) GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
FRAME (MODEL S) GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
FRAME (MODEL S) GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
4110120850019
ref: 1
FRAME SET
€ 1,564.50
2
0157008253
ref: 2
BOLT
€ 2.50
3
0155008303
ref: 3
BOLT
0155008303
€ 3.00
4
0831931085
ref: 4
NUT
€ 2.50
5
4175034C00
ref: 5
TUBE,FRAME BRIDGE NO.2
4175034C00
€ 44.00
6
0910308266
ref: 6
BOLT(8X20)
0910308266
€ 2.50
7
4191119C00019
ref: 7
PLATE,ENG MTG NO.1
€ 5.00
8
4194020C00019
ref: 8
PLATE,ENG MTG NO.2,L
€ 10.00
9
0157008163
ref: 9
BOLT, UPPER
€ 2.00
10-1
4162020C02
ref: 10-1
ROD,GRIP,R
€ 7.00
10-2
4163020C02
ref: 10-2
ROD,GRIP,L
€ 7.50
11
0158008163
ref: 11
BOLT
0158008163
€ 3.00
6
0831931085
ref: 6
NUT
€ 2.50
7
4175034C00
ref: 7
41750-19C00
TUBE,FRAME BRIDGE NO.2
4175034C00
€ 44.00
8-1
0113708165
ref: 8-1
MODEL K
BOLT
€ 2.00
8-2
0157008167
ref: 8-2
MODEL L/M/N/P
BOLT
0157008167
€ 2.50
8-3
0910308266
ref: 8-3
MODEL R
BOLT(8X20)
0910308266
€ 2.50
9-1
4191119C00291
ref: 9-1
MODEL K/L/M/N/P
PLATE,ENGINE MOUNTING
€ 5.00
9-2
4191119C00019
ref: 9-2
MODEL R
PLATE,ENG MTG NO.1
€ 5.00
10-1
4194020C00291
ref: 10-1
MODEL K/L/M/N/P
PLATE,ENGINE MOUNTING
€ 10.00
10-2
4194020C00019
ref: 10-2
MODEL R
PLATE,ENG MTG NO.2,L
€ 10.00
11-1
0113708165
ref: 11-1
MODEL K
BOLT
€ 2.00
11-2
0157008167
ref: 11-2
MODEL L/M/N/P/R
BOLT
0157008167
€ 2.50
12-1
4162020C01
ref: 12-1
41620-20C00
GRIP COMP,FRAME HANDLE
€ 7.00
12-2
4163020C01
ref: 12-2
41630-20C00
ROD,GRIP,LEFT
€ 7.50
13-1
0118708165
ref: 13-1
MODEL M/N/P
BOLT
€ 3.00
13-2
0158008163
ref: 13-2
MODEL R
BOLT
0158008163
€ 3.00
