STAND

GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

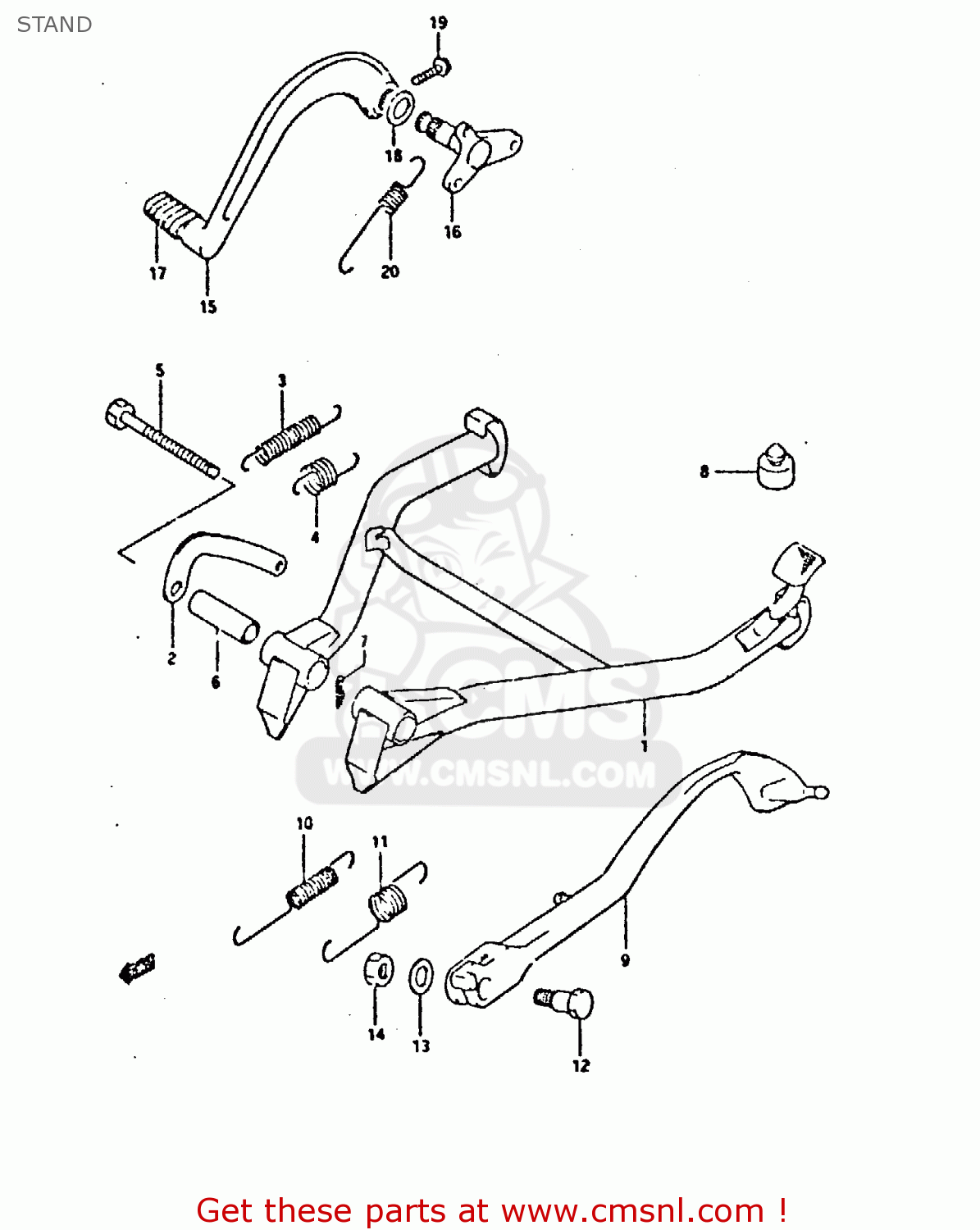

Stand diagram GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

STAND GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
STAND GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
STAND GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
4210019841
ref: 1-1
MODEL K/L/M
STAND,CENTER
€ 190.50
1-2
4210019842
ref: 1-2
MODEL N/P
STAND,CENTER
€ 190.50
1-3
4210019843
ref: 1-3
MODEL R/S
STAND SET,CENTER
4210019843
€ 190.50
2
4225119C00
ref: 2
HOOK,CTR STAND SPRING
4225119C00
€ 5.50
3
0944315039
ref: 3
SPRING
0944315039
€ 7.50
4
0944322009
ref: 4
SPRING
0944322009
€ 18.00
5-1
0911710029
ref: 5-1
MODEL K/L/M/N/P
BOLT(10X63)
0911710029
€ 6.50
5-2
0158010603
ref: 5-2
MODEL R/S
BOLT
€ 3.50
6
0918010040
ref: 6
SPACER(10X16X38.8)
0918010040
€ 3.00
7
0938510005
ref: 7
MODEL K/L/M/N/P
CLIP
0938510005
€ 1.50
8
0932110017
ref: 8
CUSHION
0932110017
€ 5.50
9
4231019C01
ref: 9
STAND,PROP
4231019C01
€ 68.00
10
0944312036
ref: 10
SPRING
0944312036
€ 7.50
11
0944319010
ref: 11
SPRING
0944319010
€ 6.00
12
0911110036
ref: 12
BOLT(10X38)
0911110036
€ 5.50
13
0822112224
ref: 13
SHIM
0822112224
€ 2.00
14-1
0831022105
ref: 14-1
MODEL K/L/M/N/P
NUT
0831022105
€ 2.00
14-2
0914010043
ref: 14-2
MODEL R/S
NUT
0914010043
€ 2.00
15-1
4311019C00
ref: 15-1
MODEL K/L/M/N/P/R
PEDAL,BRAKE
4311019C00
€ 115.00
15-2
4311019C01
ref: 15-2
MODEL S
PEDAL,BRAKE
€ 115.00
16
4312019C00
ref: 16
BOSS,BRAKE ROD
4312019C00
€ 30.00
17
4315104701
ref: 17
RUBBER,BRAKE PEDAL
4315104701
€ 6.00
18
4321204A00
ref: 18
WASHER,BRAKE PEDAL
4321204A00
€ 2.00
19-1
0154706257
ref: 19-1
MODEL K/L/M/N/P/R
BOLT
0154706257
€ 2.50
19-2
0154706253
ref: 19-2
MODEL S
SCREW
0154706253
€ 2.50
20
0944313028
ref: 20
SPRING
0944313028
€ 20.50
