REAR COMBINATION LAMP

GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

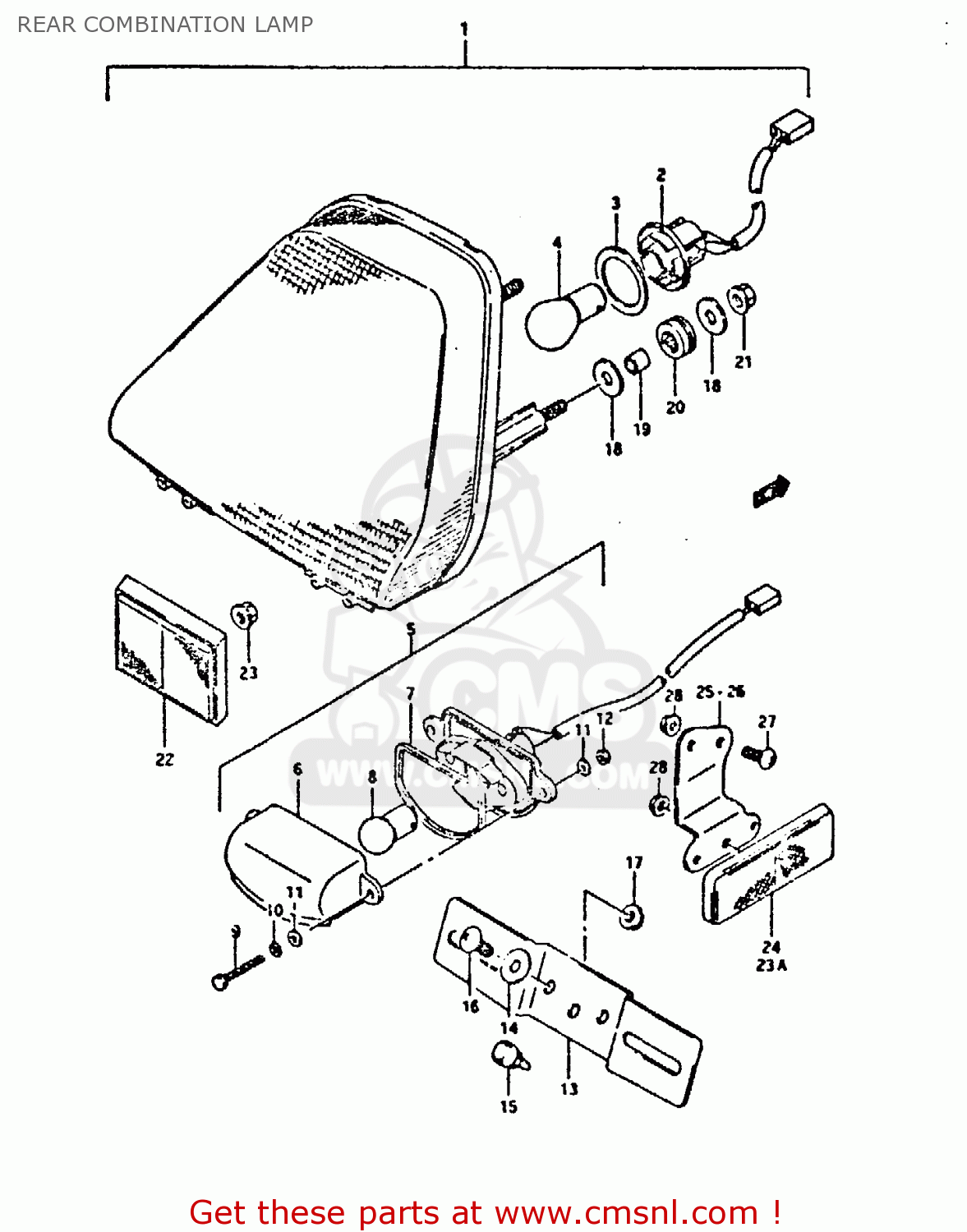

Rear combination lamp diagram GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

REAR COMBINATION LAMP GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
REAR COMBINATION LAMP GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
REAR COMBINATION LAMP GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
3571048B21
ref: 1-1
MODEL K/L/M/N/P/R
LAMP ASSY,RR C
€ 169.00
1-2
3571048C20
ref: 1-2
MODEL S
LAMP ASSY,RR COMBINATION
€ 169.00
1-3
3571048B31
ref: 1-3
E30
LAMP ASSEMBLY,REAR COMBINATION
€ 262.50
2
3571848B20
ref: 2
SOCKET
3571848B20
€ 25.00
3
3576448B20
ref: 3
CUSHION,RUBBER
3576448B20
€ 2.50
4-1
0947112063
ref: 4-1
BULB(12V4W)
0947112063
€ 6.00
4-2
0947112128
ref: 4-2
E30
BULB(12V21/5W,BF141-49642A)
0947112128
€ 6.00
5-1
3591048B20
ref: 5-1
LAMP ASSY,LICENSE
3591048B20
€ 61.00
5-2
3591048B30
ref: 5-2
E30
LAMP ASSEMBLY,LICENSE
3591048B30
€ 67.50
6
3591200A21
ref: 6
LENS,LICENSE LAMP
3591200A21
€ 24.00
7
3591304A00
ref: 7
GASKET,LICESE LAMP (NAS)
3591304A00
€ 4.00
8-1
0947112140
ref: 8-1
BULB(12V5W,BF150-40160A)
€ 4.00
8-2
0947112141
ref: 8-2
E30
BULB(12V8W)
0947112141
€ 7.00
9
0110404256
ref: 9
BOLT
€ 1.50
10
0832121047
ref: 10
WASHER,LOCK 4M
0832121047
€ 2.00
11
0032201047
ref: 11
0032201047
12
0831000047
ref: 12
NUT
0831000047
€ 2.00
13-1
3592744110
ref: 13-1
PLATE,RR LICENSE
3592744110
€ 22.50
13-2
3592748830
ref: 13-2
E30
BRACKET, LICENSE PLATE
€ 0.00
14-1
0916006866
ref: 14-1
MODEL K/L/M/N/P/R
WASHER (6.5*20*1.6)
€ 0.00
14-2
0916006031
ref: 14-2
MODEL S
WASHER (6.3X14X1.6)
€ 2.00
15
0932106023
ref: 15
CUSHION
0932106023
€ 2.00
16-1
0214206164
ref: 16-1
MODEL K/L/M/N/P
SCREW
0214206164
€ 2.50
16-2
0214206163
ref: 16-2
MODEL R
SCREW
0214206163
€ 2.50
16-3
0211206163
ref: 16-3
MODEL S
SCREW 6X16
0211206163
€ 2.00
17-1
0831616064
ref: 17-1
MODEL K/L/M/N/P
NUT 6MM
0831616064
€ 2.50
17-2
0831610063
ref: 17-2
MODEL R/S
NUT
0831610063
€ 2.50
18-1
0916006086
ref: 18-1
MODEL K/L/M/N/P/R
WASHER (6.5X20X1)
€ 2.00
18-2
0916006077
ref: 18-2
MODEL S
WASHER(6.5X20X1.2)
0916006077
€ 2.00
19
0918006044
ref: 19
SPACER (6.1X8X9.5)
0918006044
€ 2.50
20
0932009009
ref: 20
CUSHION
0932009009
€ 5.00
21-1
0831610067
ref: 21-1
MODEL K/L/M/N/P
NUT
0831610067
€ 2.00
21-2
0831610063
ref: 21-2
MODEL R/S
NUT
0831610063
€ 2.50
22
3597048B00
ref: 22
REAR ASSEMBLY,REAR
3597048B00
€ 15.50
23
0831610053
ref: 23
NUT
0831610053
€ 2.50
23A
3597000A21
ref: 23A
E30
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
24
3595043431
ref: 24
E39, MODEL P/R/S E18
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
25-1
3597520C00
ref: 25-1
MODEL K E39
BRACKET
€ 3.00
25-2
3597520C01
ref: 25-2
E30, MODEL L/M/N E39
BRACKET,RR SIDE RR,R
3597520C01
€ 3.00
26-1
3597620C00
ref: 26-1
MODEL K E39
BRACKET
€ 3.00
26-2
3597620C01
ref: 26-2
E30, MODEL L/M/N E39
BRACKET,RR SIDE RR,L
3597620C01
€ 3.00
27-1
0214205124
ref: 27-1
E39, MODEL N/P E30
SCREW, FRONT & REAR
€ 1.50
27-2
0214205123
ref: 27-2
MODEL R/S E18, E30
SCREW 5X12
0214205123
€ 1.50
28-1
0831626055
ref: 28-1
E39, MODEL N/P E30
NUT
0831626055
€ 2.00
28-2
0831000053
ref: 28-2
MODEL R/S E18, E30
NUT
€ 2.50
