WIRING HARNESS (MODEL S)

GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

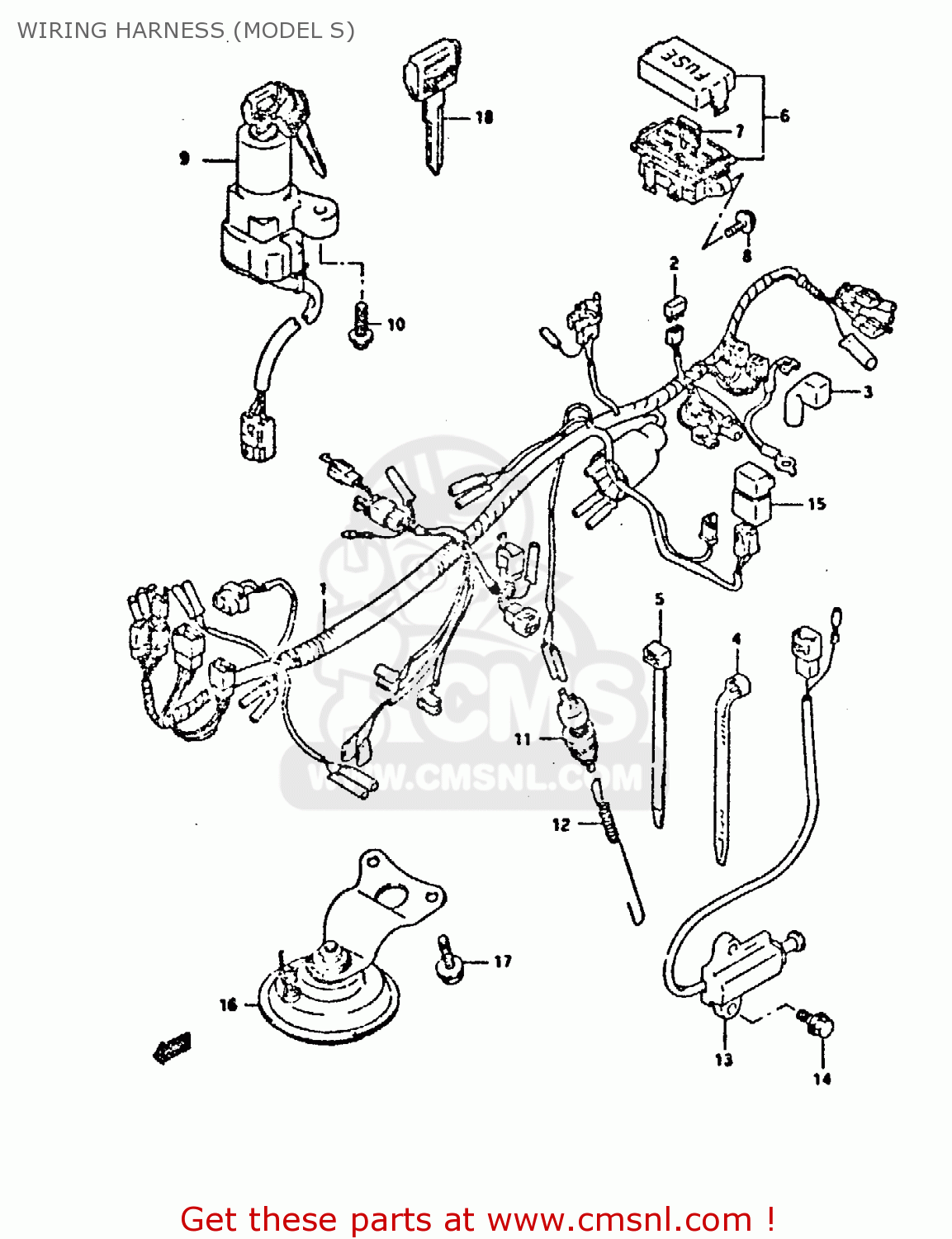

Wiring harness (model s) diagram GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

WIRING HARNESS (MODEL S) GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
WIRING HARNESS (MODEL S) GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
WIRING HARNESS (MODEL S) GSX750F 1989 (K) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
3661020C40
ref: 1
HARNESS,WIRING
€ 277.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3362443500
ref: 3
CAP,BATTERY PLUS TERMINAL
3362443500
€ 3.50
4-1
0940714403
ref: 4-1
CLAMP(L:125)
0940714403
€ 2.50
4-2
0940718403
ref: 4-2
CLAMP L:165
€ 2.50
5
0940710403
ref: 5
CLAMP(L:95)
€ 2.50
6
3674010D10
ref: 6
BOX ASSY,FUSE
3674010D10
€ 58.50
7-1
0948110101
ref: 7-1
FUSE(10A)
0948110101
€ 2.50
7-2
0948125101
ref: 7-2
FUSE (25A)
0948125101
€ 2.50
8
0214206163
ref: 8
SCREW
0214206163
€ 2.50
9-1
3710026D02
ref: 9-1
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
9-2
3710026D11
ref: 9-2
E24
LOCK ASSY,STEERING
€ 103.50
10
0913906026
ref: 10
SCREW(6X18)
0913906026
€ 2.50
11
3774024A00
ref: 11
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
12
0944306005
ref: 12
SPRING
0944306005
€ 6.00
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0155006203
ref: 14
BOLT
0155006203
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16
3850019C01
ref: 16
HORN ASSY
3850019C01
€ 54.00
17
0155006163
ref: 17
BOLT
0155006163
€ 2.50
18
3714626D10
ref: 18
OPT
KEY,BLANK
3714626D10
€ 41.50
13-5
3710026011
ref: 13-5
MODEL R E24
SWITCH ASSY, IGNITION
€ 0.00
13A
0913906026
ref: 13A
MODEL M/N/P/R
SCREW(6X18)
0913906026
€ 2.50
14
3774024A00
ref: 14
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
15
0944306005
ref: 15
SPRING
0944306005
€ 6.00
16
3784020A11
ref: 16
37840-20A10
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
17
0211236205
ref: 17
MODEL K/L/M/N/P
SCREW
€ 2.00
17A
0155006203
ref: 17A
MODEL R
BOLT
0155006203
€ 2.50
18
3874024X50
ref: 18
38740-24B10
RELAY ASSY
3874024X50
€ 37.50
19-1
3850019C00
ref: 19-1
MODEL K/L/M/N
HORN ASSEMBLY
€ 54.00
19-2
3850019C01
ref: 19-2
MODEL P/R
HORN ASSY
3850019C01
€ 54.00
20-1
0111706165
ref: 20-1
MODEL K/L/M/N/P
BOLT
€ 2.50
20-2
0155006163
ref: 20-2
MODEL R
BOLT
0155006163
€ 2.50
21
3685219C01
ref: 21
E34
WIRE, HORN RELAY
€ 0.00
22
3874024X50
ref: 22
E34 38640-06810
RELAY ASSY
3874024X50
€ 37.50
23
3862035301
ref: 23
E34 38621-22200
BRACKET,TURN RELAY
€ 6.00
24
0211236123
ref: 24
E34
BOLT
€ 2.00
25-1
3714603A80
ref: 25-1
OPT, MODEL K/L/M/N/P
KEY,BLANK
€ 41.50
25-2
3714626D10
ref: 25-2
OPT, MODEL R
KEY,BLANK
3714626D10
€ 41.50
