AIR CLEANER

GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

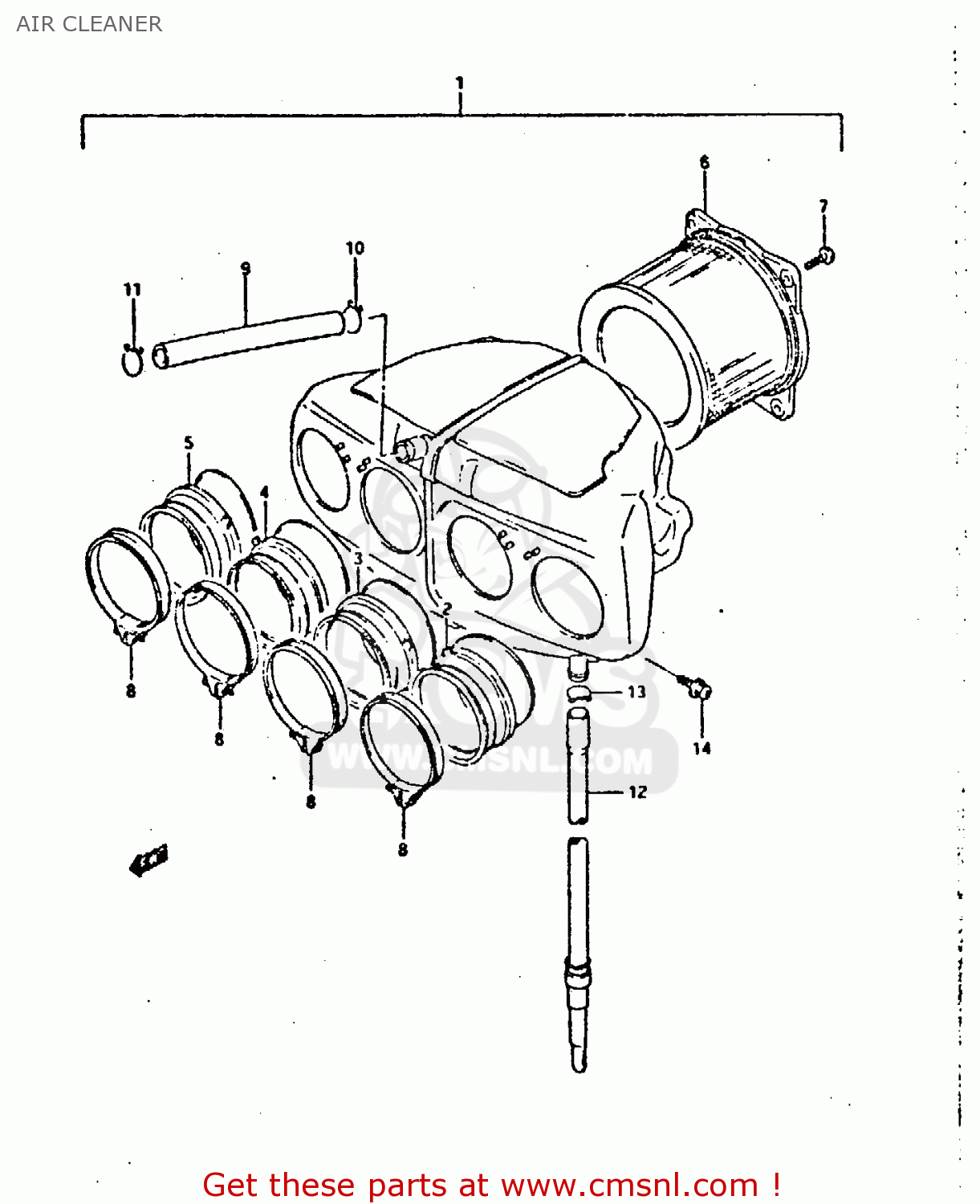

Air cleaner diagram GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

prices are in EUR

ref

part #

description

quantity

1-1

1370020C02
ref: 1-1
13700-20C01

CLEANER ASSEMBLY,AIR

€ 233.50

1-2

1370020C11
ref: 1-2
MODEL L/M/N/P E17 1

CLEANER ASSY, AIR

€ 0.00

1388120C01
ref: 2
13881-20C00

TUBE,OUTLET,L

€ 24.50

1388220C01
ref: 3
13882-20C00

TUBE,OUTLET ML

€ 28.50

1388320C01
ref: 4
13883-20C00

TUBE,OUTLET MR

€ 22.50

1388420C01
ref: 5
13884-20C00

TUBE,OUTLET,R

€ 24.50

6-1

1378020C00
ref: 6-1

FILTER ASSY

€ 43.50

6-2

1378020C10
ref: 6-2
MODEL L/M/N/P E17

FILTER ASSY,AIR CLEANER

€ 58.00

0214205123
ref: 7

SCREW 5X12

€ 1.50

0940266208
ref: 8
13826-20C00

CLAMP

€ 6.50

1385319C00
ref: 9

TUBE,BREATHER

€ 14.00

1382837300
ref: 10

CLIP

€ 3.00

0940114301
ref: 11

CLIP

€ 2.00

1387011458
ref: 12
13870-11477

TUBE,DRAIN

€ 13.50

1382400A00
ref: 13

CLIP

€ 2.50

0211276163
ref: 14

SCREW

€ 2.00
