CRANKCASE

GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

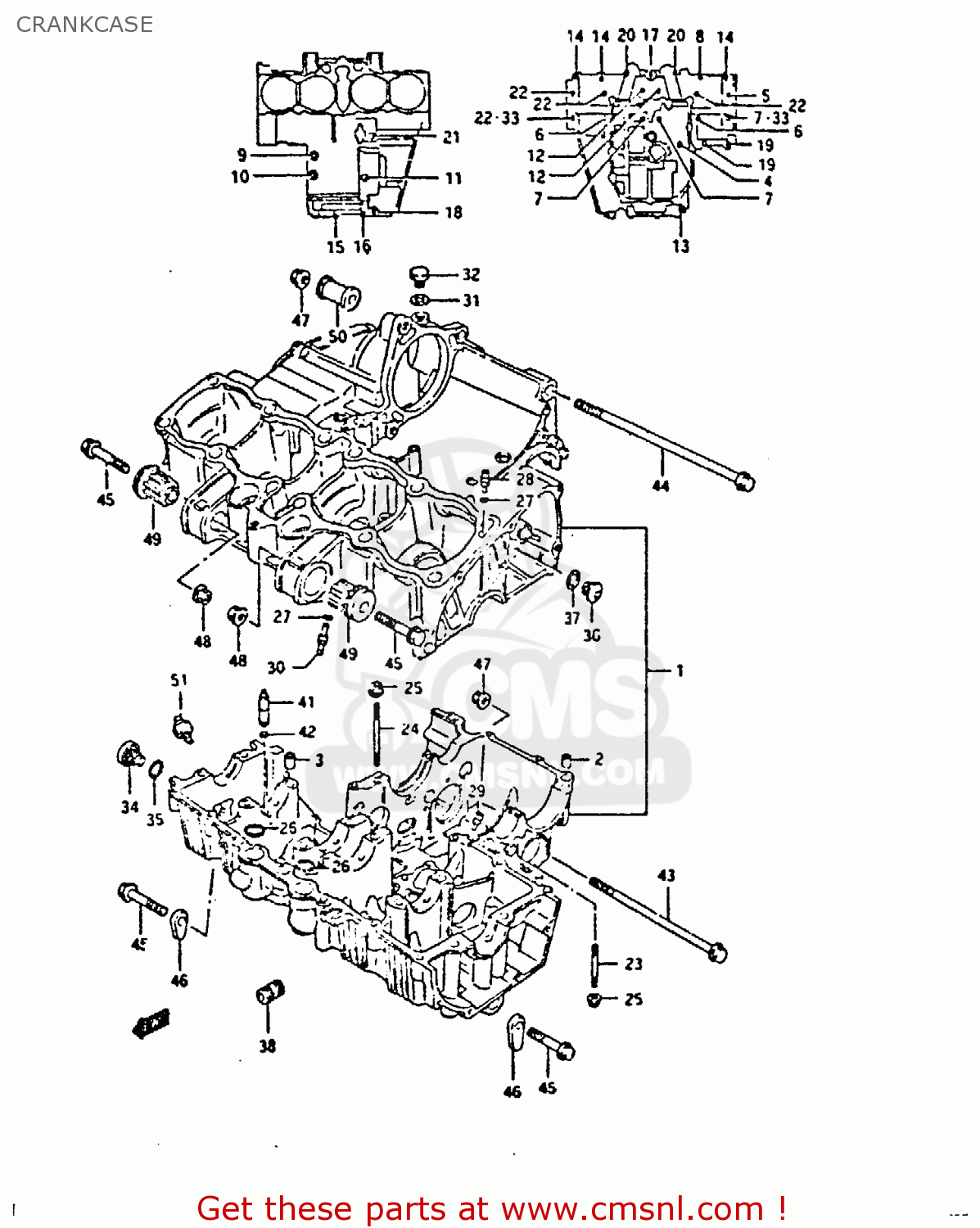

Crankcase diagram GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

CRANKCASE GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
CRANKCASE GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
CRANKCASE GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
1130020893
ref: 1
11300-20891
CRANKCASE SET
€ 2,191.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4-1
0910306067
ref: 4-1
MODEL K/L/M/N/P
BOLT(6X105)
0910306067
€ 3.50
4-2
0910306163
ref: 4-2
MODEL R/S
BOLT(6X105)
0910306163
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8-1
0151706354
ref: 8-1
MODEL K/L/M/N
BOLT 6X35
€ 2.50
8-2
0155006357
ref: 8-2
MODEL P
BOLT
0155006357
€ 2.50
8-3
0155006303
ref: 8-3
MODEL R/S
BOLT
0155006303
€ 2.50
9-1
0713006405
ref: 9-1
MODEL K/L/M/N
BOLT
€ 3.50
9-2
0713006408
ref: 9-2
MODEL P
BOLT
€ 2.50
9-3
0713006403
ref: 9-3
MODEL R/S
BOLT
0713006403
€ 3.50
10-1
0711006505
ref: 10-1
MODEL K/L/M/N
BOLT
€ 3.00
10-2
0713006508
ref: 10-2
MODEL P
BOLT
€ 3.00
10-3
0713006503
ref: 10-3
MODEL R/S
BOLT,CL.COVER
0713006503
€ 3.00
11-1
0711006655
ref: 11-1
MODEL K/L/M/N
BOLT
€ 4.00
11-2
0713006658
ref: 11-2
MODEL P
BOLT
€ 4.00
11-3
0713006653
ref: 11-3
MODEL R/S
BOLT
0713006653
€ 4.00
12-1
0711008655
ref: 12-1
MODEL K/L/M/N
BOLT
€ 3.50
12-2
0713008658
ref: 12-2
MODEL P
BOLT
€ 3.50
12-3
0713008653
ref: 12-3
MODEL R/S
BOLT
€ 3.50
13-1
0151708605
ref: 13-1
MODEL K/L/M/N
BOLT 8X60
€ 3.50
13-2
0155008607
ref: 13-2
MODEL P
BOLT
0155008607
€ 3.50
13-3
0155008603
ref: 13-3
MODEL R/S
BOLT
€ 3.50
14-1
0151706354
ref: 14-1
MODEL K/L/M/N
BOLT 6X35
€ 2.50
14-2
0151706358
ref: 14-2
MODEL P
BOLT 6X35
0151706358
€ 2.50
14-3
0155006353
ref: 14-3
MODEL R/S
BOLT
0155006353
€ 2.50
15-1
0151706404
ref: 15-1
MODEL K/L/M/N
BOLT
0151706404
€ 2.00
15-2
0155006407
ref: 15-2
MODEL P
BOLT
0155006407
€ 2.50
15-3
0155006403
ref: 15-3
MODEL R/S
BOLT
0155006403
€ 2.00
16
0155006407
ref: 16
BOLT
0155006407
€ 2.50
17-1
0151706505
ref: 17-1
MODEL K/L/M/N
BOLT 6X50
0151706505
€ 2.00
17-2
0151706508
ref: 17-2
MODEL P
BOLT ,6X50
€ 2.00
17-3
0155006503
ref: 17-3
MODEL R/S
BOLT
0155006503
€ 2.00
18-1
0151706605
ref: 18-1
MODEL K/L/M/N
BOLT ,6X60
€ 2.50
18-2
0155006607
ref: 18-2
MODEL P
BOLT
0155006607
€ 2.50
18-3
0155006603
ref: 18-3
MODEL R/S
BOLT
0155006603
€ 2.50
19-1
0155006557
ref: 19-1
MODEL K/L/M/N/P
BOLT
0155006557
€ 2.50
19-2
0155006553
ref: 19-2
MODEL R/S
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20-1
0151706705
ref: 20-1
MODEL K/L/M/N
BOLT
€ 2.50
20-2
0151706708
ref: 20-2
MODEL P
BOLT (6X70)
€ 3.00
20-3
0155006703
ref: 20-3
MODEL R/S
BOLT
€ 2.50
21-1
0151706805
ref: 21-1
MODEL K/L/M/N
BOLT
€ 2.50
21-2
0151706808
ref: 21-2
MODEL P
BOLT (6X80)
€ 3.00
21-3
0155006803
ref: 21-3
MODEL R/S
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
0910308105
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25-1
0915906017
ref: 25-1
MODEL K/L/M/N/P
NUT
0915906017
€ 2.50
25-2
0831610063
ref: 25-2
MODEL R/S
NUT
0831610063
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
0949380008
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
34
0924816003
ref: 34
PLUG
0924816003
€ 16.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
36-1
0924814010
ref: 36-1
MODEL K/L 09248-140
PLUG
0924814010
€ 5.00
36-2
0924814005
ref: 36-2
MODEL M/N/P/R/S
PLUG,14X12
0924814005
€ 5.00
37
0916814002
ref: 37
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
38
1659106B00
ref: 38
UNION,OIL STAND
1659106B00
€ 6.00
39
1222848B000E0
ref: 39
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
40-1
1222848B000C0
ref: 40-1
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(RED)
1222848B000C0
€ 7.50
40-2
1222848B000E0
ref: 40-2
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
40-3
1222848B000H0
ref: 40-3
BEARING,CRANK THRUST(BLACK)
1222848B000H0
€ 7.50
41
1643027A00
ref: 41
VALVE ASSEMBLY,PISTON OIL
€ 21.00
42
0928005007
ref: 42
O RING(D:1.2,ID:4.7)
0928005007
€ 2.00
43-1
0910310237
ref: 43-1
MODEL K/L/M/N/P
BOLT(10X130)
0910310237
€ 5.50
43-2
0910310122
ref: 43-2
MODEL R/S
BOLT(10X130)
0910310122
€ 9.50
44
0910310151
ref: 44
BOLT(10X175)
0910310151
€ 14.50
45-1
0198710555
ref: 45-1
MODEL K/L/M/N/P
BOLT
€ 3.50
45-2
0158010553
ref: 45-2
MODEL R/S
BOLT
€ 3.00
46
0915910020
ref: 46
NUT
0915910020
€ 7.50
47-1
0915910044
ref: 47-1
MODEL K/L/M/N/P
NUT (10MM)
€ 4.00
47-2
0915910058
ref: 47-2
MODEL R/S
NUT
0915910058
€ 4.00
48-1
0831616105
ref: 48-1
MODEL K/L/M/N/P
NUT
€ 2.00
48-2
0831610103
ref: 48-2
MODEL R/S
NUT
0831610103
€ 2.00
49
1168106B00
ref: 49
BUSH,ENGINE MOUNTING
1168106B00
€ 26.00
50-1
1161117C00
ref: 50-1
MODEL K 11611-06B01
SPACER,ENGINE MOUNT
1161117C00
€ 10.00
50-2
1161020C00
ref: 50-2
MODEL L/M/N/P/R/S
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
51
3782033000
ref: 51
37820-33200
SWITCH, OIL PRESSURE
€ 0.00
