REAR CUSHION LEVER (SEE NOTE)

GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

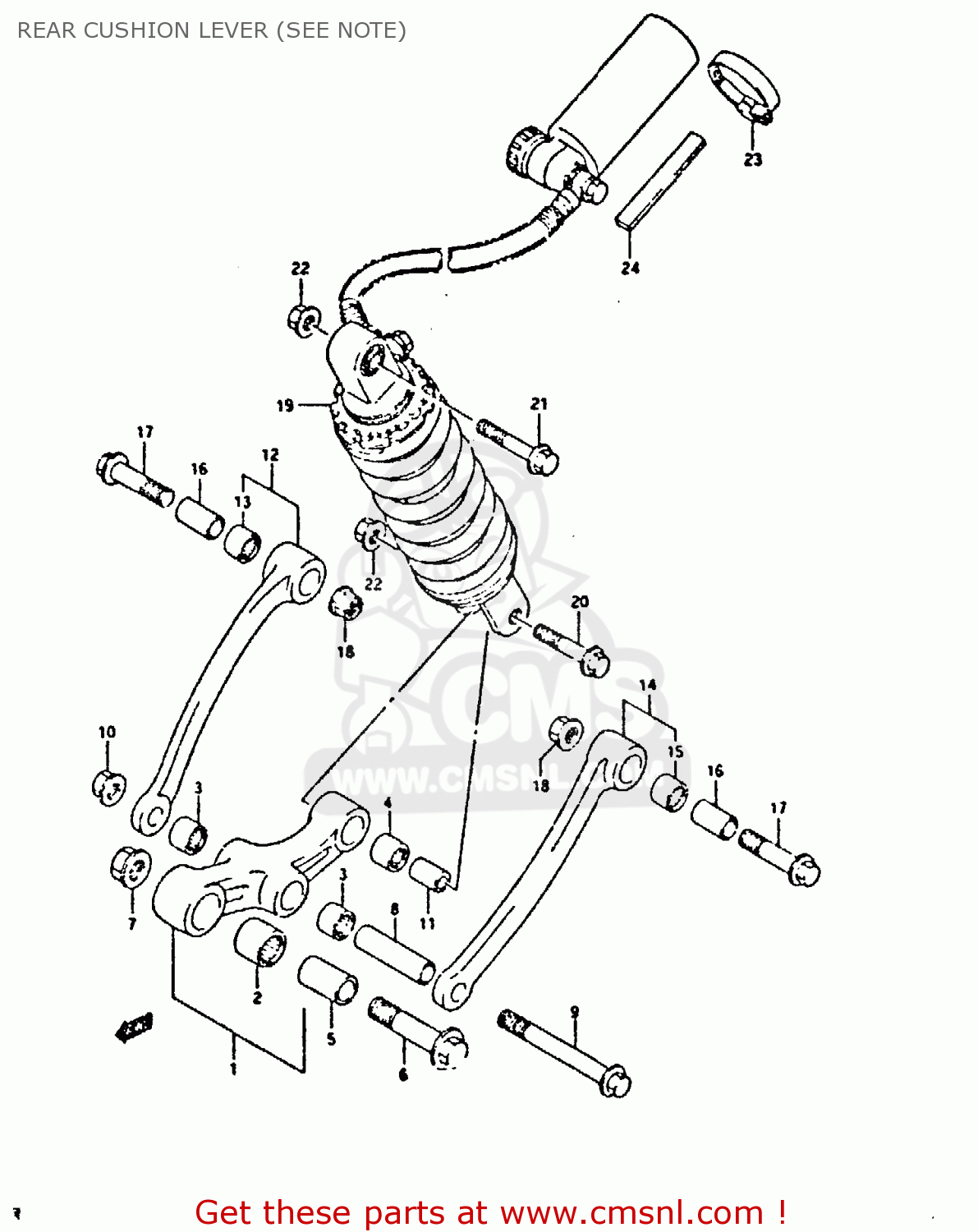

Rear cushion lever (see note) diagram GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

REAR CUSHION LEVER (SEE NOTE) GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
REAR CUSHION LEVER (SEE NOTE) GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
REAR CUSHION LEVER (SEE NOTE) GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
6260019830
ref: 1
LEVER SET,RR CUSHION
€ 575.50
2
0926320070
ref: 2
BEARING(20X27X30)
0926320070
€ 21.00
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
0918014014
ref: 5
SPACER(14X20X34)
0918014014
€ 11.50
6
0910314012
ref: 6
BOLT(14X62)
0910314012
€ 6.00
7
0831931145
ref: 7
NUT 14MM
€ 9.00
8
0918012121
ref: 8
SPACER(12X17X60)
0918012121
€ 12.00
9
0910312034
ref: 9
BOLT(12X96)
0910312034
€ 6.00
10
0831931125
ref: 10
NUT 12MM
€ 3.00
11
6268440A10
ref: 11
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
12
6260120810
ref: 12
ROD SET,REAR CUSHION,RIGHT
€ 131.00
13
0926317034
ref: 13
BEARING(17X24X26)
0926317034
€ 21.50
14
6260120820
ref: 14
ROD SET,REAR CUSHION,LEFT
€ 131.00
15
0926317034
ref: 15
BEARING(17X24X26)
0926317034
€ 21.50
16
0918012120
ref: 16
SPACER(12X17X29)
0918012120
€ 10.00
17
0910312035
ref: 17
BOLT L:52
€ 7.00
18
0831931125
ref: 18
NUT 12MM
€ 3.00
19
6210020C12
ref: 19
ABSORBER,RR SH
€ 1,496.50
20
0910310101
ref: 20
BOLT(10X54)
0910310101
€ 3.00
21
0910310213
ref: 21
BOLT(10X52)
0910310213
€ 4.00
22
0831931105
ref: 22
NUT 10MM
€ 3.00
23
0940250511
ref: 23
CLAMP
0940250511
€ 8.50
24
6233148800
ref: 24
CUSHION, TANK
€ 0.00
24
6233148800
ref: 24
CUSHION, TANK
€ 0.00
26
0831931105
ref: 26
NUT 10MM
€ 3.00
