TRANSMISSION

GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

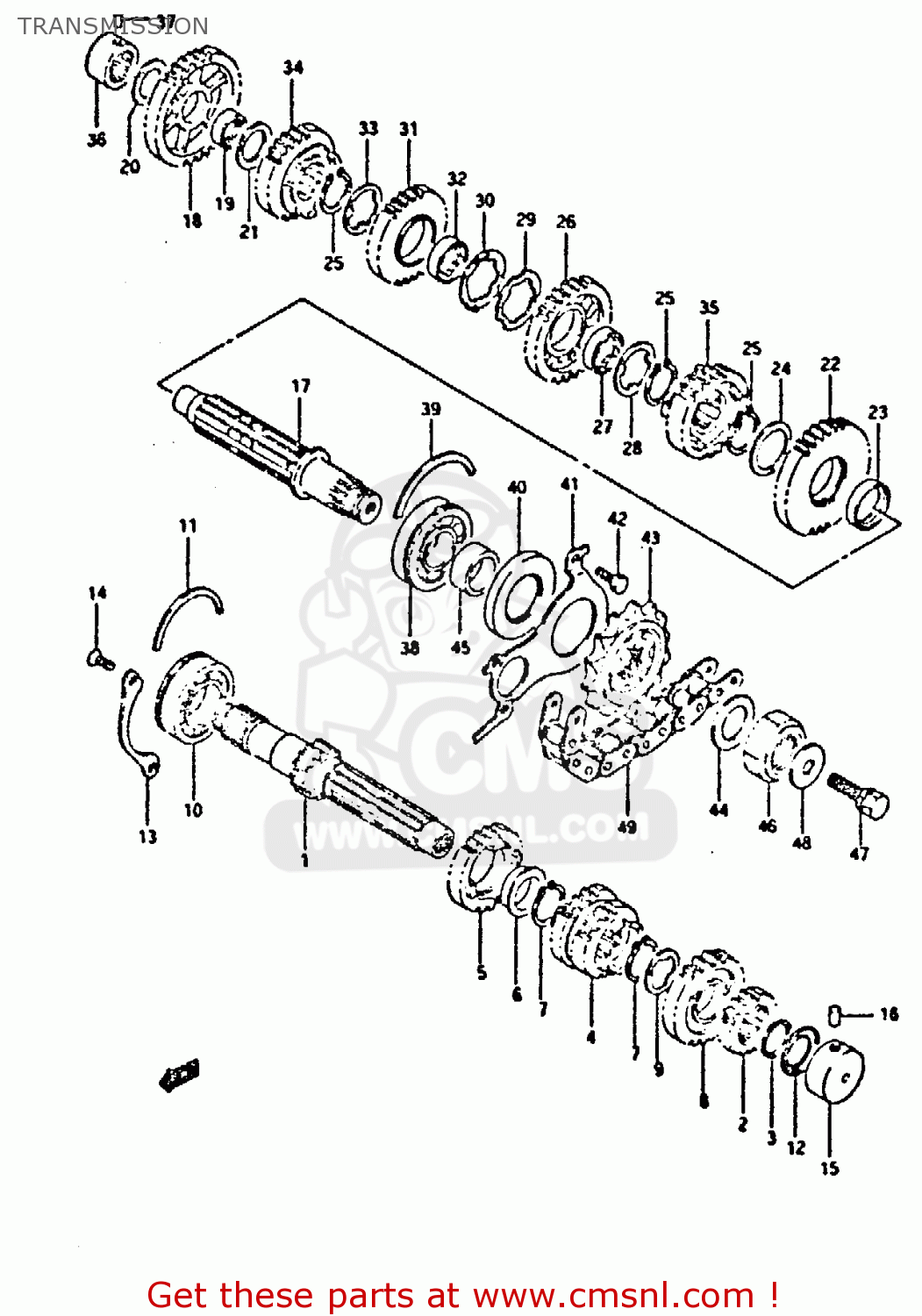

Transmission diagram GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

TRANSMISSION GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
TRANSMISSION GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
TRANSMISSION GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
2412120C00
ref: 1-1
MODEL K/L/M/N
SHAFT,COUNTER
2412120C00
€ 196.00
1-2
2412120C10
ref: 1-2
MODEL P/R/S
SHAFT,COUNTER(NT:12)
2412120C10
€ 196.00
2-1
2422127A01
ref: 2-1
MODEL K/L/M/N
GEAR,2ND DRIVE(NT:16)
2422127A01
€ 93.00
2-2
2422127A10
ref: 2-2
MODEL P/R/S
GEAR,SECOND DRIVE
€ 93.00
3
0938025013
ref: 3
CIRCLIP
0938025013
€ 3.00
4-1
2423127A00
ref: 4-1
MODEL K/L/M/N
GEAR,3RD & 4TH DRIVE(NT:17/20)
2423127A00
€ 162.00
4-2
2423127A10
ref: 4-2
MODEL P/R/S
GEAR,THIRD & FOURTH DRIVE,N
€ 162.00
5
2425127A01
ref: 5
GEAR,5TH DRIVE(NT:22)
2425127A01
€ 91.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
0938025003
€ 3.00
8
2426117C01
ref: 8
GEAR,SIXTH DRIVE (NT:21)
€ 119.50
9
0916725012
ref: 9
WASHER,LOCK
0916725012
€ 3.50
10-1
0926225051
ref: 10-1
MODEL K/L/M/N/P/R
BEARING(25X62X17)
0926225051
€ 59.50
10-2
0926225115
ref: 10-2
MODEL S
BEARING(25X62X17)
€ 54.00
11-1
0939062006
ref: 11-1
MODEL K/L/M/N/P/R
C-RING
0939062006
€ 5.00
11-2
0939062012
ref: 11-2
MODEL S
C RING
0939062012
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
13
2474127A00
ref: 13
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
14-1
0212206167
ref: 14-1
MODEL K/L/M/N/P
SCREW
0212206167
€ 2.00
14-2
0212206163
ref: 14-2
MODEL R/S
SCREW ,6X16
0212206163
€ 2.00
15
0926320049
ref: 15
BEARING(20X34X17.5)
0926320049
€ 58.00
16
0422107129
ref: 16
PIN
0422107129
€ 1.50
17
2413120C00
ref: 17
SHAFT,DRIVE
€ 177.50
18-1
2431119C01
ref: 18-1
MODEL K/L/M/N
GEAR,FIRST DRIVEN
€ 101.50
18-2
2431119C10
ref: 18-2
MODEL P/R/S
GEAR,1ST DRIVEN(NT:37)
2431119C10
€ 101.50
19
0930022008
ref: 19
BUSH(22X26X9)
0930022008
€ 10.50
20
0821120341
ref: 20
WASHER
0821120341
€ 2.00
21
0821122341
ref: 21
WASHER
0821122341
€ 3.00
22-1
2432120C00
ref: 22-1
MODEL K/L/M/N
GEAR,2ND DRIVEN(NT:33)
2432120C00
€ 60.00
22-2
2432120C10
ref: 22-2
MODEL P/R/S
GEAR,SECOND DRIVEN
€ 60.00
23
0930028003
ref: 23
BUSH(28X32X9.5)
0930028003
€ 19.50
24
0821128381
ref: 24
WASHER, THRUST
0821128381
€ 3.50
25
0833131286
ref: 25
CIRCLIP
0833131286
€ 2.50
26-1
2433127A00
ref: 26-1
MODEL K/L/M/N
GEAR,3RD DRIVEN(NT:28)
2433127A00
€ 129.00
26-2
2433127A10
ref: 26-2
MODEL P/R/S
GEAR,THIRD DRIVEN
€ 129.00
27
2433227A00
ref: 27
BUSH
2433227A00
€ 13.50
28
0916728001
ref: 28
WASHER,LOCK
0916728001
€ 3.00
29
0916728002
ref: 29
WASHER,LOCK
0916728002
€ 3.00
30
0916928001
ref: 30
WASHER
0916928001
€ 3.00
31-1
2434127A00
ref: 31-1
MODEL M @r24341-27A0
GEAR,FOURTH DRIVEN
€ 80.00
31-2
2434127A01
ref: 31-2
MODEL N/P/R/S
GEAR,4TH DRIVEN(NT:28)
2434127A01
€ 80.00
32
2433227A00
ref: 32
BUSH
2433227A00
€ 13.50
33
0916728001
ref: 33
WASHER,LOCK
0916728001
€ 3.00
34
2435127A00
ref: 34
GEAR,5TH DRIVEN(NT:27)
2435127A00
€ 117.00
35
2436120C00
ref: 35
GEAR,SIXTH DRIVEN (NT:23)
2436120C00
€ 124.00
36
0926320040
ref: 36
BEARING(20X34X20)
0926320040
€ 42.50
37
0422107209
ref: 37
PIN
0422107209
€ 1.50
38-1
0926225105
ref: 38-1
MODEL K/L/M/N/P/R
BEARING(25X62X17)
0926225105
€ 59.50
38-2
0926225115
ref: 38-2
MODEL S
BEARING(25X62X17)
€ 54.00
39-1
0939062006
ref: 39-1
MODEL K/L/M/N/P/R
C-RING
0939062006
€ 5.00
39-2
0939062012
ref: 39-2
MODEL S
C RING
0939062012
€ 5.00
40
0928334005
ref: 40
SEAL,OIL(34X62X6)
0928334005
€ 14.50
41
2475127A01
ref: 41
RETAINER,DRIVE SHAFT OIL SEAL
2475127A01
€ 8.00
42-1
0150006107
ref: 42-1
MODEL K/L/M/N/P
BOLT
0150006107
€ 2.00
42-2
0150006123
ref: 42-2
MODEL R/S
BOLT
0150006123
€ 2.00
43
2751017C00
ref: 43
SPROCKET,ENGINE (NT:15)
€ 67.00
44
0821125402
ref: 44
WASHER,THRUST
0821125402
€ 3.00
45
0918025091
ref: 45
SPACER(25X34X17.5)
0918025091
€ 16.00
46
0915920004
ref: 46
NUT
0915920004
€ 12.00
47-1
0114706168
ref: 47-1
MODEL K/L/M/N/P
BOLT
€ 2.50
47-2
0157006163
ref: 47-2
MODEL R
BOLT
0157006163
€ 2.50
48
0821206222
ref: 48
WASHER
0821206222
€ 1.50
49
2760017C20118
ref: 49
27600-20C00-118
CHAIN ASSEMBLY,DRIVE
€ 243.00
