CLUTCH

GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

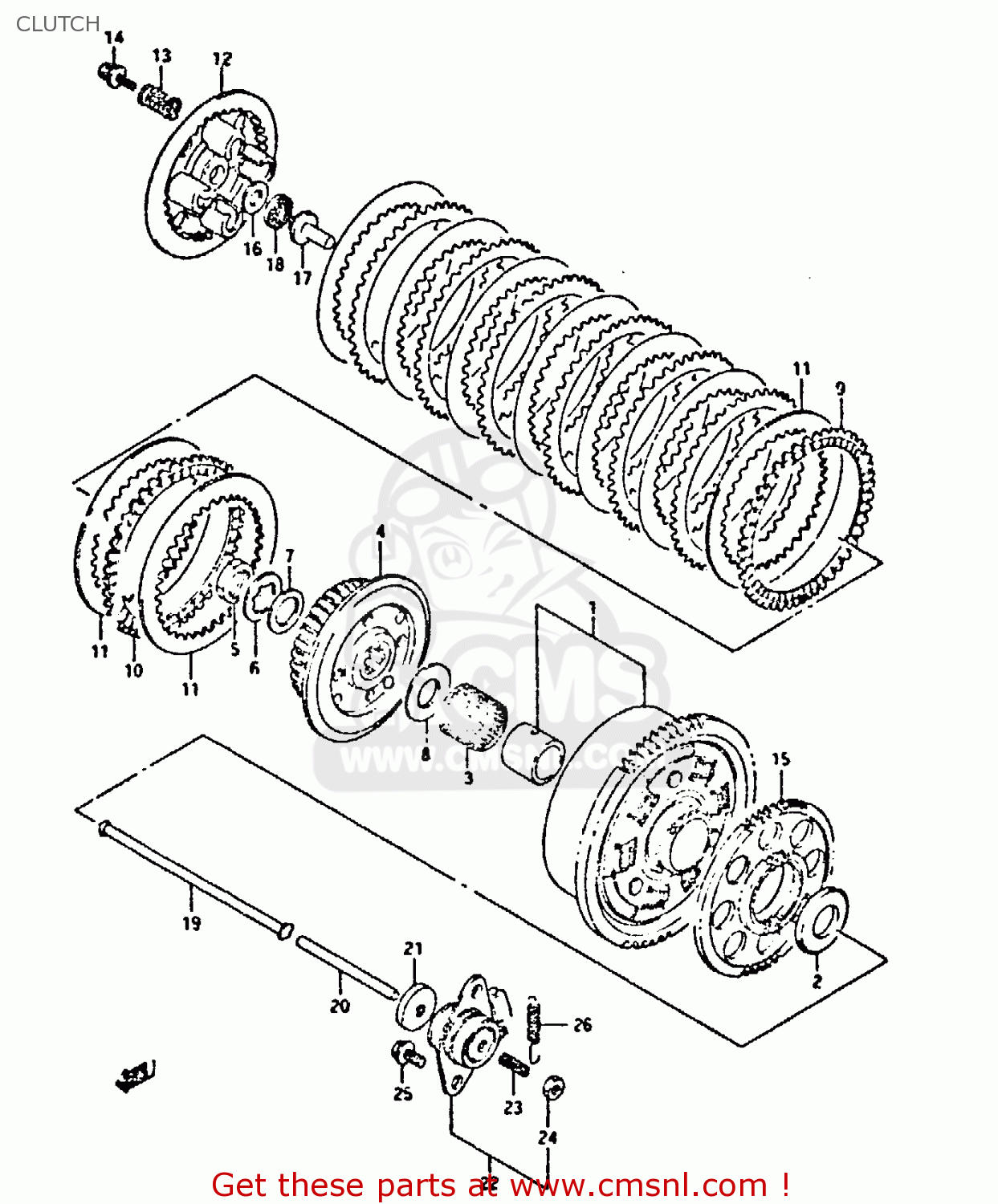

Clutch diagram GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

CLUTCH GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
CLUTCH GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
CLUTCH GSX750F 1990 (L) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
2120017832
ref: 1-1
MODEL K/L/M/N/P 212
GEAR ASSEMBLY,PRIMARY DRIVE
€ 341.00
1-2
2120017834
ref: 1-2
MODEL R/S
GEAR ASSEMBLY,PRIMARY DRIVE
€ 341.00
2
0916025067
ref: 2
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4-1
2141017C01
ref: 4-1
MODEL K/L/M/N/P
HUB,CLUTCH SLEEVE
2141017C01
€ 121.50
4-2
2141007000
ref: 4-2
MODEL R/S
HUB, SLEEVE
€ 0.00
5
0914024012
ref: 5
NUT
0914024012
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7
0916424006
ref: 7
WASHER
0916424006
€ 4.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
0916025056
€ 9.50
9
2144120C00
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144120C00
€ 23.50
10
2144217C00
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144217C00
€ 19.00
11
2145117C00
ref: 11
PLATE,CLUTCH DRIVEN (NAS)
2145117C00
€ 9.50
12
2146217C01
ref: 12
DISC,CLUTCH PRESSURE
2146217C01
€ 73.50
13
0944020018
ref: 13
SPRING
0944020018
€ 6.00
14
0911606016
ref: 14
BOLT
€ 2.50
15-1
2272117C00
ref: 15-1
MODEL K/L/M/N/P @r22
GEAR,GENERATOR DRIVE
€ 118.50
15-2
2272117C01
ref: 15-2
MODEL R/S
GEAR,GENERATOR DRIVE
€ 118.50
16-1
0916015015
ref: 16-1
MODEL K/L/M/N/P
WASHER
€ 4.00
16-2
0916015045
ref: 16-2
MODEL R/S
WASHER(15.5X28X1)
0916015045
€ 4.00
17
2312107A00
ref: 17
PIECE,CLUTCH PUSH
2312107A00
€ 18.50
18
0926315003
ref: 18
BEARING(15X28X2)
0926315003
€ 7.00
19
2311020C00
ref: 19
ROD,CLUTCH PUSH,R
2311020C00
€ 23.00
20
2311131301
ref: 20
ROD,CLUTCH PUSH,L
2311131301
€ 14.50
21
0928506015
ref: 21
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
22
2320020C00
ref: 22
SCREW ASSY,CLUTCH RELEASE
2320020C00
€ 74.50
23
0913406010
ref: 23
SCREW(6X25)
0913406010
€ 3.00
24
0831000067
ref: 24
NUT
0831000067
€ 2.50
25-1
0155006167
ref: 25-1
MODEL K/L/M/N/P
BOLT
0155006167
€ 1.50
25-2
0155006163
ref: 25-2
MODEL R/S
BOLT
0155006163
€ 2.50
26
0944307038
ref: 26
SPRING
0944307038
€ 4.00
