CAM SHAFT - VALVE

GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

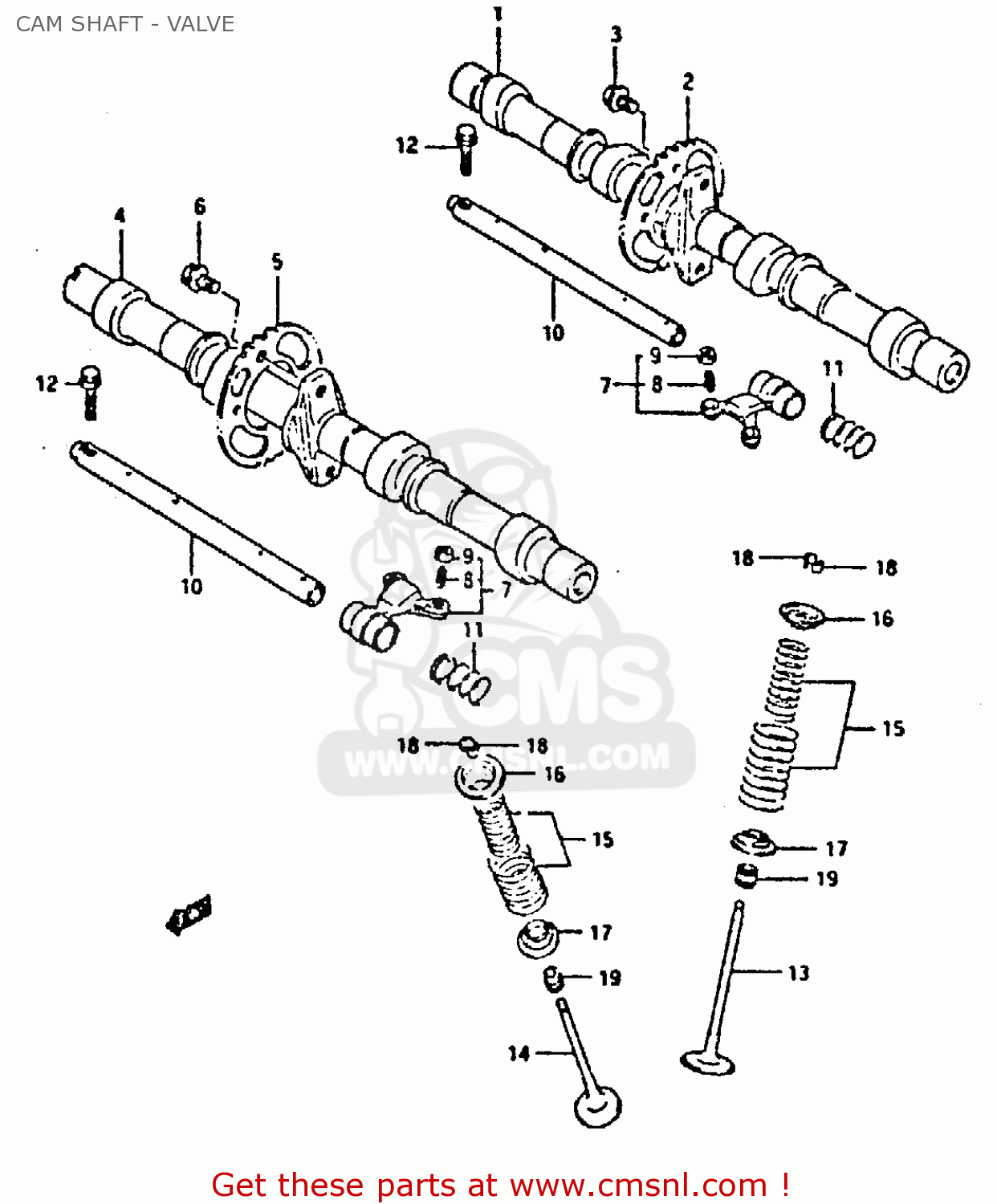

Cam shaft - valve diagram GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

prices are in EUR

ref

part #

description

quantity

1271128A10
ref: 1

CAMSHAFT,INTAKE

€ 251.00

1274117C01
ref: 2

SPROCKET,CAMSHAFT

€ 21.50

0910307001
ref: 3

BOLT(7X11)

€ 2.00

1272128A10
ref: 4

CAMSHAFT,EXHAUST

€ 297.50

1274117C01
ref: 5

SPROCKET,CAMSHAFT

€ 21.50

0910307001
ref: 6

BOLT(7X11)

€ 2.00

7-1

1284017C01
ref: 7-1
MODEL K @r12840-27A0

ARM,VALVE ROCKER

€ 49.50

7-2

1284027A00
ref: 7-2
MODEL L/M/N/P @r1284

ARM,VALVE ROCKER

€ 49.50

7-3

1284027A01
ref: 7-3
MODEL R/S

ARM,VALVE ROCKER

€ 49.50

1284249201
ref: 8
12842-49210

SCREW,TAPPET ADJUSTING

€ 5.50

1284327A00
ref: 9

NUT,TAPPET ADJUSTING

€ 3.00

1286127A00
ref: 10

SHAFT,VALVE ROCKER ARM

€ 31.00

0944013014
ref: 11

SPRING

€ 2.50

0155006303
ref: 12

BOLT

€ 2.50

1291117C02
ref: 13

VALVE,INTAKE

€ 29.50

1291217C00
ref: 14

VALVE,EXHAUST

€ 57.50

1292017C00
ref: 15

SPRING SET,VALVE

€ 15.50

1293117C00
ref: 16

RETAINER,VALVE SPRING

€ 7.00

1293317C00
ref: 17

SEAT,VALVE SPRING

€ 6.50

1293227A00
ref: 18

COTTER VALVE

€ 2.50

0928905011
ref: 19

SEAL,OIL(5X10X9.7)

€ 6.00
