SIGNAL GENERATOR

GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

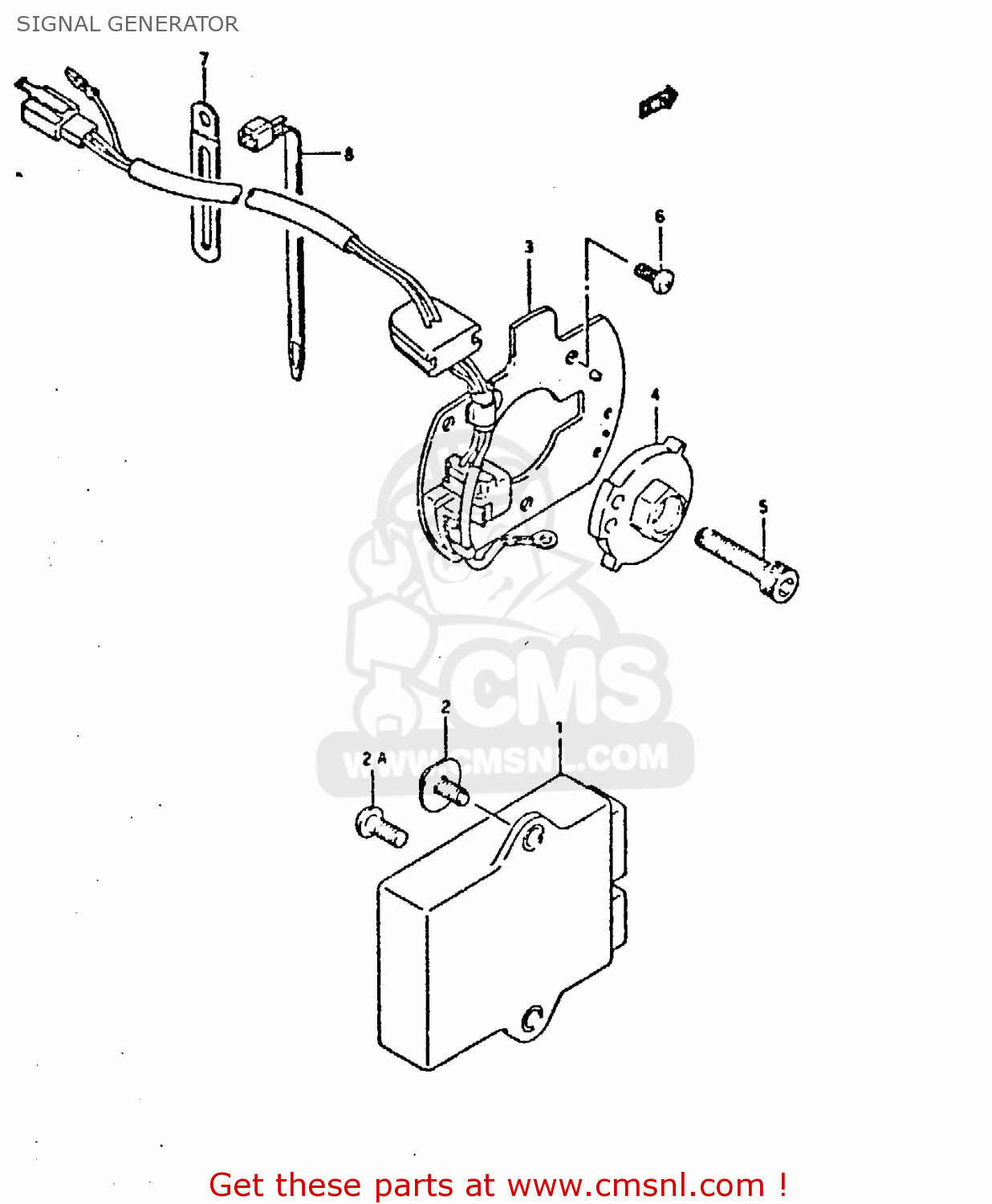

Signal generator diagram GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

prices are in EUR

ref

part #

description

quantity

1-1

3290020C10
ref: 1-1

IGNITER

€ 620.50

1-2

3290020C10
ref: 1-2
MODEL K/L/M/N/P E22

IGNITER

€ 620.50

1-3

3290020C20
ref: 1-3
MODEL R/S E22

IGNITOR ASSY

€ 620.50

0211216126
ref: 2
MODEL K/L/M/N/P

SCREW

€ 2.00

0214206123
ref: 2A
MODEL R/S

SCREW 6X12

€ 2.00

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C00
ref: 4

ROTOR,SIGNAL

€ 182.00

5-1

0711008306
ref: 5-1
MODEL K/L/M/N/P

BOLT

€ 3.00

5-2

0713008303
ref: 5-2
MODEL R/S

BOLT

€ 3.00

6-1

0211205107
ref: 6-1
MODEL K/L/M/N/P

SCREW

€ 2.00

6-2

0211205103
ref: 6-2
MODEL R/S

SCREW

€ 2.00

0940408403
ref: 7

CLAMP

€ 3.50

0940714403
ref: 8

CLAMP(L:125)

€ 2.50
