FRONT MASTER CYLINDER

GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

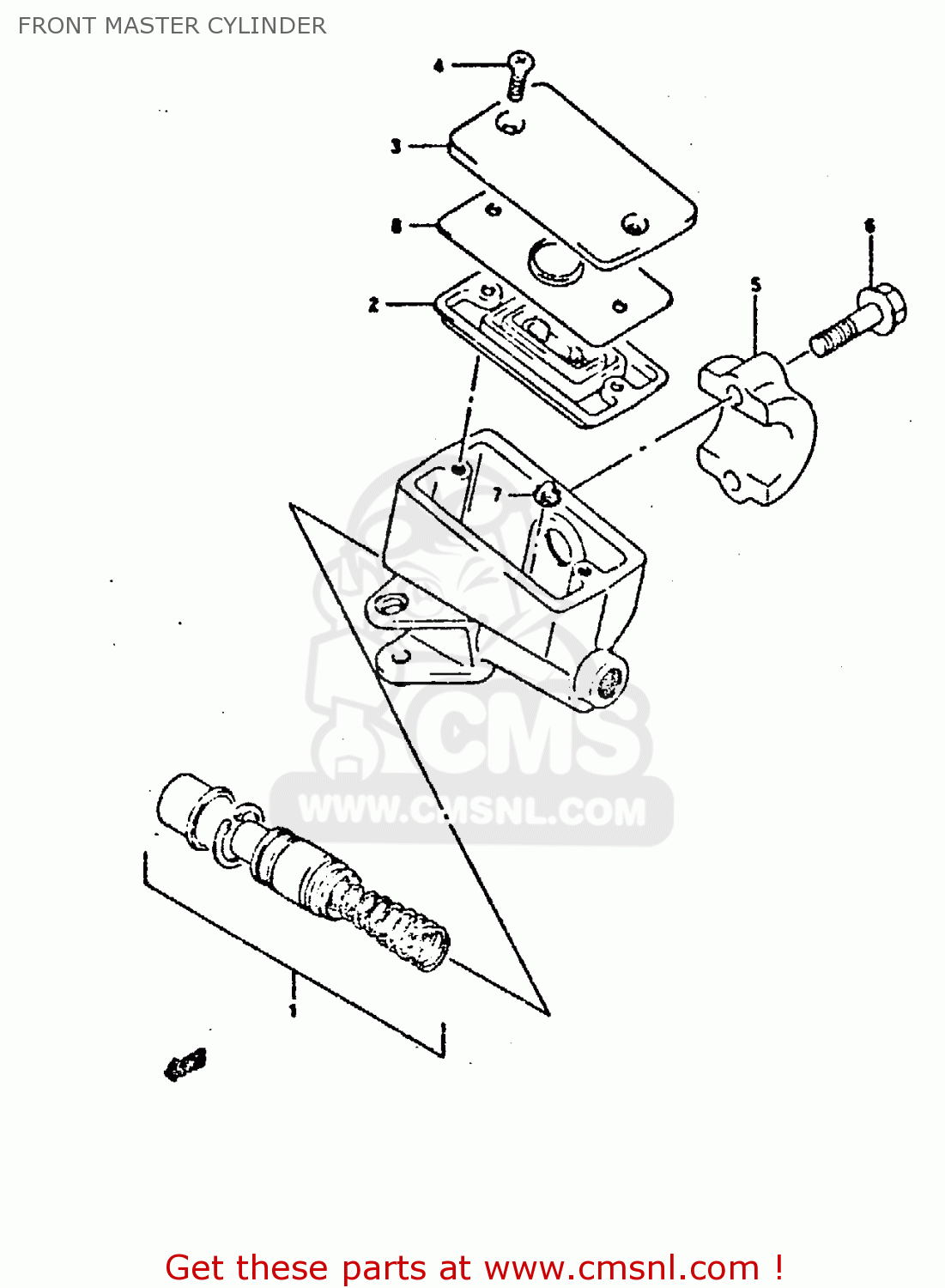

Front master cylinder diagram GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

prices are in EUR

ref

part #

description

quantity

5960020C10
ref: 0

CYLINDER ASSY,FR MASTER

€ 262.50

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

5966749460
ref: 2

5966749460

3-1

5966934C00
ref: 3-1
MODEL K/L/M/N/P @r59

CAP

€ 30.00

3-2

5966941C00
ref: 3-2
MODEL R/S

CAP

€ 30.00

6968949300
ref: 4

SCREW

€ 1.50

5967119B00
ref: 5

HOLDER

€ 18.50

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

5966448B00
ref: 7

PROTECTOR

€ 8.00

5966841C00
ref: 8
MODEL R/S

PLATE,DIAPHRAGM

€ 8.00
