STEERING STEM

GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

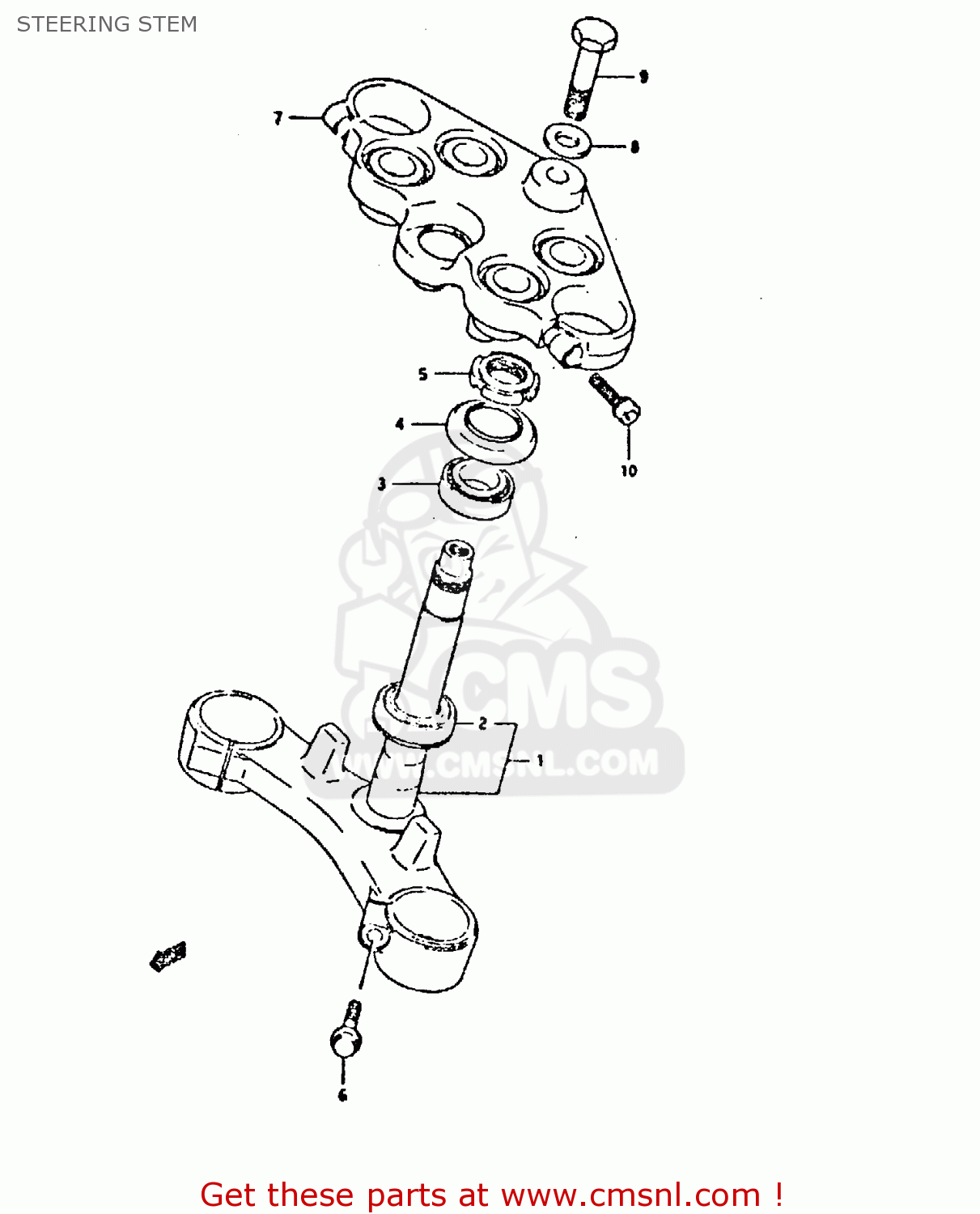

Steering stem diagram GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

prices are in EUR

ref

part #

description

quantity

1-1

5141019C01
ref: 1-1
MODEL K

STEM,STEERING

€ 391.00

1-2

5141019C02
ref: 1-2
MODEL L/M/N/P/R/S

STEM,STEERING

€ 391.00

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

0926525008
ref: 3

TAPER,ROLLER BEARING

€ 48.50

4-1

5164349001
ref: 4-1
MODEL K/L/M/N/P

DUST SEAL,STEERING,UPPER

€ 7.50

4-2

5164349002
ref: 4-2
MODEL R/S

SEAL,STEERING UPR DUST

€ 7.50

5163128000
ref: 5

NUT,STEERING STEM(25X44X10)

€ 12.50

6-1

0151710405
ref: 6-1
MODEL K/L/M/N/P/R

BOLT 10X40

€ 4.00

6-2

0155010403
ref: 6-2
MODEL S

BOLT

€ 4.00

5131120C00
ref: 7

HEAD,STEERING STEM

€ 251.50

5135643530
ref: 8

WASHER,STEERING STEM

€ 4.00

5135220C00
ref: 9

BOLT

€ 16.50

10-1

0711008305
ref: 10-1
MODEL K/L/M/N/P/R

BOLT, REAR (8X30)

€ 3.00

10-2

0713008303
ref: 10-2
MODEL S

BOLT

€ 3.00
