REAR SWINGING ARM

GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

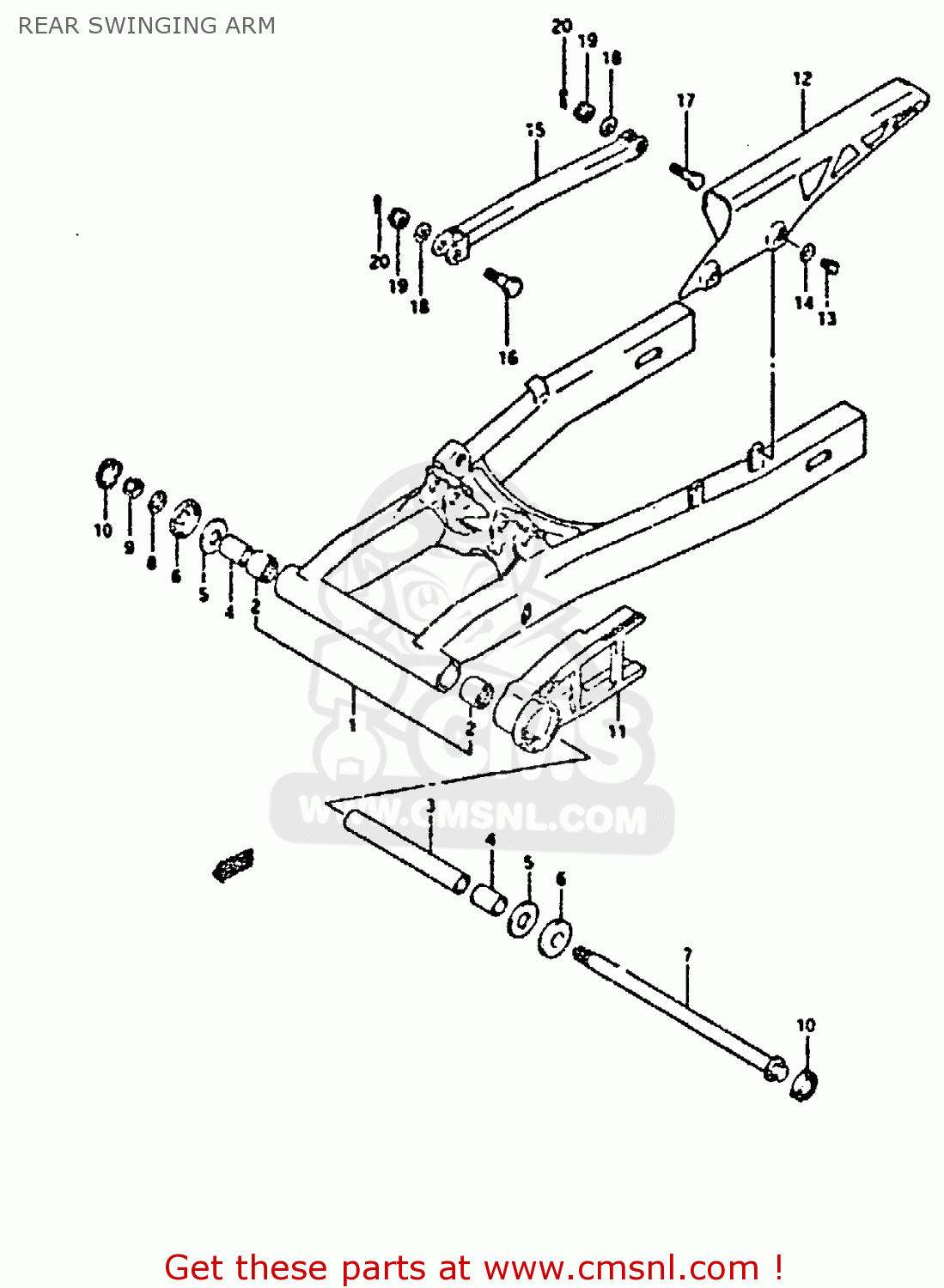

Rear swinging arm diagram GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53

REAR SWINGING ARM GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53
REAR SWINGING ARM GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53
REAR SWINGING ARM GSX750F 1992 (N) (E01 E02 04 15 16 17 18 21 22 24 25 30 34 39 53
prices are in EUR
ref
part #
description
quantity
1
6100020C0113L
ref: 1
SWING ARM ASSEMBLY,REAR
€ 487.00
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
6128220C00
ref: 3
SPACER,RR SWGARM PIVOT CTR
6128220C00
€ 15.50
4
6125138B00
ref: 4
SPACER,RR SWGARM PIVOT
6125138B00
€ 14.00
5
0821116341
ref: 5
WASHER
0821116341
€ 2.00
6
6126232410
ref: 6
COVER,RR SWGARM DUST SEAL
6126232410
€ 10.00
7
6121120C00
ref: 7
SHAFT,REAR SWING ARM PIVOT
€ 35.00
8
0916014015
ref: 8
WASHER(14X27X3)
0916014015
€ 4.00
9-1
0915914013
ref: 9-1
MODEL K/L/M/N/P
NUT
0915914013
€ 8.50
9-2
0915914019
ref: 9-2
MODEL R/S
NUT
0915914019
€ 8.50
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
6122243400
€ 4.00
11
6127320C00
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
6127320C00
€ 24.50
12
6131027A01
ref: 12
CASE,CHAIN
6131027A01
€ 48.00
13-1
0151706105
ref: 13-1
MODEL K
BOLT
€ 2.50
13-2
0214206104
ref: 13-2
MODEL L/M/N/P
SCREW
0214206104
€ 2.00
13-3
0214206123
ref: 13-3
MODEL R/S
SCREW 6X12
0214206123
€ 2.00
14
0916906026
ref: 14
WASHER
0916906026
€ 2.00
15-1
6431020C00291
ref: 15-1
MODEL K/L
TORQUE LINK,REAR
€ 23.00
15-2
6431020C0013L
ref: 15-2
MODEL M/N
TORQUE LINK,REAR
6431020C0013L
€ 23.00
15-3
6431020C00019
ref: 15-3
MODEL P/R/S
TORQUE LINK,REAR (BLACK)
€ 23.00
16
0911110016
ref: 16
BOLT(10X41)
0911110016
€ 6.50
17
0910110036
ref: 17
BOLT(10X35)
0910110036
€ 4.50
18
0916010069
ref: 18
WASHER (10X18X3.2)
€ 2.00
19-1
0831441108
ref: 19-1
MODEL K/L/M/N/P
NUT
0831441108
€ 2.50
19-2
0831440103
ref: 19-2
MODEL R/S
NUT
0831440103
€ 2.50
20
0411120208
ref: 20
PIN 20X20
0411120208
€ 1.50
