FRAME COVER (MODEL S)

GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

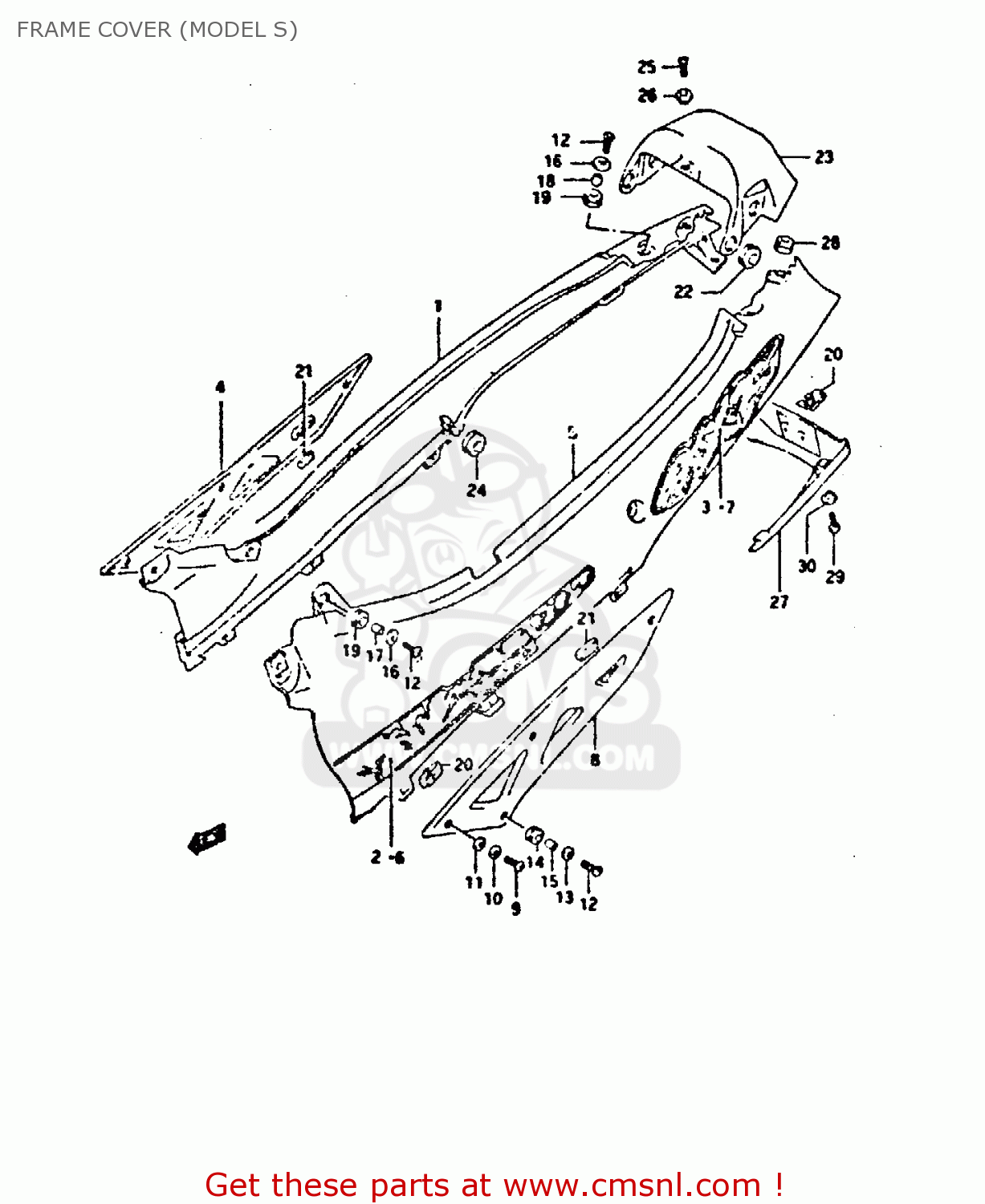

Frame cover (model s) diagram GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

FRAME COVER (MODEL S) GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRAME COVER (MODEL S) GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRAME COVER (MODEL S) GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4711021C7019A
ref: 1-1
COVER,FRAME,R(RED)
€ 243.00
1-2
4711021C7033J
ref: 1-2
COVER COMP,FRAME,RIGHT
€ 329.50
2-1
6813521C00D4R
ref: 2-1
FOR 19A
TAPE,FRAME COVER,RIGHT
€ 33.50
2-2
6813521C00D4P
ref: 2-2
FOR 33J
TAPE,FRAME COVER,R
€ 30.00
3-1
6813121C10D4T
ref: 3-1
FOR 19A
EMBLEM, LH
€ 19.50
3-2
6813121C10D4S
ref: 3-2
FOR 33J
EMBLEM, LH
€ 19.50
4
4713120C00
ref: 4
COVER,FRAME LWR,R
€ 72.00
5-1
4721021C7019A
ref: 5-1
COVER COMP,FRAME,LEFT
€ 243.00
5-2
4721021C7033J
ref: 5-2
COVER COMP,FRAME,LEFT
€ 281.50
6-1
6814521C00D4R
ref: 6-1
FOR 19A
TAPE,FRAME COVER,LEFT
€ 33.50
6-2
6814521C00D4P
ref: 6-2
FOR 33J
TAPE,FRAME COVER,LEFT
€ 30.00
7-1
6813121C10D4T
ref: 7-1
FOR 19A
EMBLEM, LH
€ 19.50
7-2
6813121C10D4S
ref: 7-2
FOR 33J
EMBLEM, LH
€ 19.50
8
4723120C00
ref: 8
COVER,FRAME LWR,L
€ 66.50
9
0912006005
ref: 9
SCREW(6X16)
0912006005
€ 2.50
10
0916006003
ref: 10
WASHER (6.7X16X1.8)
€ 2.00
11
0916105016
ref: 11
WASHER (5.5X16X1)
€ 2.00
12
0913906030
ref: 12
SCREW(6X16)
0913906030
€ 3.50
13
0916006054
ref: 13
WASHER(6.5X22X1.6)
0916006054
€ 2.00
14
0932008013
ref: 14
CUSHION
0932008013
€ 4.00
15
0918006092
ref: 15
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
16
0916006057
ref: 16
WASHER
€ 2.00
17
0918006011
ref: 17
SPACER (6.1X9X9)
0918006011
€ 2.00
18
0918006038
ref: 18
SPACER(6.1X9X7.5)
0918006038
€ 2.00
19
0932009016
ref: 19
CUSHION
0932009016
€ 2.50
20
4715319C01
ref: 20
PLATE,FRAME COVER
4715319C01
€ 4.00
21
4716120C00
ref: 21
CUSHION,FRAME COVER LWR
€ 3.00
22
0930816006
ref: 22
GROMMET
0930816006
€ 3.00
23-1
4731120C0119A
ref: 23-1
COVER,FRAME CTR
€ 36.00
23-2
4731120C0133J
ref: 23-2
COVER,FRAME CTR
€ 40.00
24
0932008018
ref: 24
CUSHION
0932008018
€ 4.00
25
0214206103
ref: 25
SCREW 6X10
0214206103
€ 2.00
26
0916906037
ref: 26
WASHER
0916906037
€ 6.50
27
4732120C00
ref: 27
COVER,FRAME RR
4732120C00
€ 23.00
28
9443326800
ref: 28
CUSHION, REAR BOX
€ 0.00
29
0214206163
ref: 29
SCREW
0214206163
€ 2.50
30
0916906037
ref: 30
WASHER
0916906037
€ 6.50
27-2
4731120C0119A
ref: 27-2
MODEL R
COVER,FRAME CTR
€ 36.00
27-3
4731120C0133J
ref: 27-3
COVER,FRAME CTR
€ 40.00
28
0932008018
ref: 28
CUSHION
0932008018
€ 4.00
29
0214206103
ref: 29
SCREW 6X10
0214206103
€ 2.00
30
0916906037
ref: 30
WASHER
0916906037
€ 6.50
31
4732120C00
ref: 31
COVER,FRAME RR
4732120C00
€ 23.00
32
9443326800
ref: 32
CUSHION, REAR BOX
€ 0.00
33-1
0214206164
ref: 33-1
MODEL P
SCREW
0214206164
€ 2.50
33-2
0214206163
ref: 33-2
MODEL R
SCREW
0214206163
€ 2.50
34
0916906037
ref: 34
WASHER
0916906037
€ 6.50
23-4
4731021C000FP
ref: 23-4
FOR 22R
COVER,FRAME CN
€ 36.00
23-5
4731021C001MW
ref: 23-5
E30
COVER,FRAME,CENTER
€ 36.00
24-1
6827134A0013L
ref: 24-1
FOR 19A, 33J
EMBLEM,SUZUKI
6827134A0013L
€ 3.50
24-2
6827134A0020G
ref: 24-2
FOR 0FP
EMBLEM,FRAME COVER CTR
6827134A0020G
€ 7.00
24-3
6827134A000FP
ref: 24-3
E30
EMBLEM,FRAME COVER,CENTER
€ 3.00
25
0932008018
ref: 25
CUSHION
0932008018
€ 4.00
26
0214206103
ref: 26
SCREW 6X10
0214206103
€ 2.00
27
0916906037
ref: 27
WASHER
0916906037
€ 6.50
28
4732120C00
ref: 28
COVER,FRAME RR
4732120C00
€ 23.00
29
9443326B00
ref: 29
CUSHION
9443326B00
€ 4.00
30
0214206164
ref: 30
SCREW
0214206164
€ 2.50
31
0916906037
ref: 31
WASHER
0916906037
€ 6.50
31-6
4731020C0133J
ref: 31-6
MODEL L, FOR 3WC
COVER COMP,FRAME,CENTER
€ 44.50
31-7
4731020C0120H
ref: 31-7
MODEL L, FOR 3CH
COVER COMP,FRAME,CENTER
€ 36.50
32-1
6827134A00742
ref: 32-1
FOR 24V, 33J, 20H
EMBLEM
6827134A00742
€ 3.50
32-2
6827134A00019
ref: 32-2
FOR 0FP, 28V
EMBLEM
€ 7.00
33
0932008018
ref: 33
CUSHION
0932008018
€ 4.00
34
0214206103
ref: 34
SCREW 6X10
0214206103
€ 2.00
35
0916906037
ref: 35
WASHER
0916906037
€ 6.50
36
4732120C00
ref: 36
COVER,FRAME RR
4732120C00
€ 23.00
37
9443326B00
ref: 37
CUSHION
9443326B00
€ 4.00
38
0214206164
ref: 38
SCREW
0214206164
€ 2.50
39
0916906037
ref: 39
WASHER
0916906037
€ 6.50
