INSTALLATION PARTS

GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

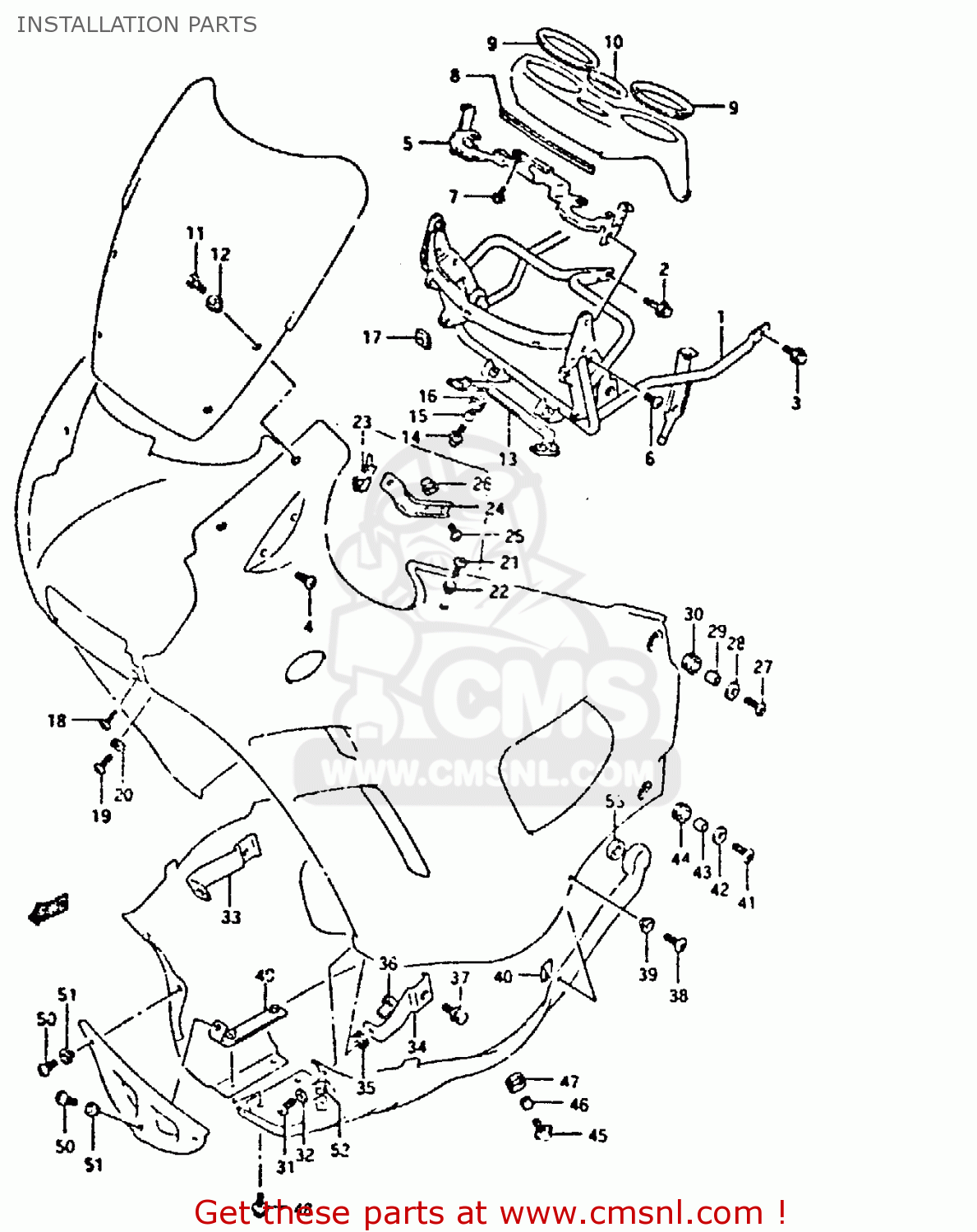

Installation parts diagram GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

INSTALLATION PARTS GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
INSTALLATION PARTS GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
INSTALLATION PARTS GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9451020C00
ref: 1-1
MODEL N/P/R
BRACE,COWLING
9451020C00
€ 128.50
1-2
9451020C10
ref: 1-2
MODEL N/P/R E18, E39
BRACE,COWLING
€ 145.50
1-3
9451020C20
ref: 1-3
MODEL S
BRACE,COWLING
9451020C20
€ 128.50
1-4
9451020C30
ref: 1-4
MODEL S E18
BRACE,COWLING
€ 145.50
2-1
0151708205
ref: 2-1
MODEL N
BOLT
€ 3.00
2-2
0151708207
ref: 2-2
MODEL P
BOLT
€ 3.00
2-3
0910308266
ref: 2-3
MODEL R/S
BOLT(8X20)
0910308266
€ 2.50
3-1
0151706125
ref: 3-1
MODEL N
BOLT 6X12
0151706125
€ 2.50
3-2
0151706128
ref: 3-2
MODEL P
BOLT
€ 2.50
3-3
0155006123
ref: 3-3
MODEL R/S
BOLT
0155006123
€ 2.50
4-1
0214206127
ref: 4-1
MODEL N/P
SCREW 6X12
0214206127
€ 1.50
4-2
0214206123
ref: 4-2
MODEL R/S
SCREW 6X12
0214206123
€ 2.00
5
9452020C00
ref: 5
PLATE,METER FITING
9452020C00
€ 30.50
6-1
0214206125
ref: 6-1
MODEL N
SCREW 6X12
0214206125
€ 2.00
6-2
0214206127
ref: 6-2
MODEL P
SCREW 6X12
0214206127
€ 1.50
6-3
0214206123
ref: 6-3
MODEL R/S
SCREW 6X12
0214206123
€ 2.00
7-1
0354105085
ref: 7-1
MODEL N/P
SCREW 5X8
€ 2.00
7-2
0354105083
ref: 7-2
MODEL R/S
SCREW 5X8
0354105083
€ 2.00
8
9452719C00
ref: 8
MOLDING,METER COVER
9452719C00
€ 3.00
9
9442620C00
ref: 9
CUSHION,SPEEDOMETER
9442620C00
€ 5.50
10
9442720C00
ref: 10
CUSHION,FUEL METER
9442720C00
€ 4.00
11
0913905022
ref: 11
SCREW
0913905022
€ 2.50
12
0916105010
ref: 12
WASHER(5.2X11X1)
0916105010
€ 2.00
13
9446019C00
ref: 13
PLATE,COWL CTR PANEL
9446019C00
€ 12.00
14
0913606081
ref: 14
SCREW(6X20)
0913606081
€ 3.00
15
0918006167
ref: 15
SPACER (6,8X10X9.4)
0918006167
€ 2.50
16
0932010015
ref: 16
CUSHION
0932010015
€ 2.50
17
9463819C00
ref: 17
CUSHION,SCREEN
€ 2.50
18-1
0214205128
ref: 18-1
MODEL N/P
SCREW
0214205128
€ 1.50
18-2
0214205123
ref: 18-2
MODEL R/S
SCREW 5X12
0214205123
€ 1.50
19
0913906029
ref: 19
SCREW(6X25)
0913906029
€ 5.00
20
0916006036
ref: 20
WASHER(6.5X18X1.5)
0916006036
€ 1.50
21
0913906030
ref: 21
SCREW(6X16)
0913906030
€ 3.50
22
0916106021
ref: 22
WASHER(6.3X16X1.5)
0916106021
€ 2.50
23
9456019C00
ref: 23
BRACKET,COWLING UPR,R
9456019C00
€ 40.50
24
9457019C00
ref: 24
BRACKET,COWLING UPR,L
9457019C00
€ 40.50
25-1
0912506055
ref: 25-1
MODEL N
SCREW(6X25)
0912506055
€ 3.00
25-2
0912506038
ref: 25-2
MODEL P
SCREW
0912506038
€ 3.00
25-3
0214206253
ref: 25-3
MODEL R/S
SCREW
0214206253
€ 1.50
26
9457319C00
ref: 26
NUT,COWLING SIDE BRKT
9457319C00
€ 8.00
27
0913906029
ref: 27
SCREW(6X25)
0913906029
€ 5.00
28
0916006036
ref: 28
WASHER(6.5X18X1.5)
0916006036
€ 1.50
29
0918006011
ref: 29
SPACER (6.1X9X9)
0918006011
€ 2.00
30
0932009016
ref: 30
CUSHION
0932009016
€ 2.50
31
0913906042
ref: 31
SCREW(6X30)
0913906042
€ 7.50
32
0916006036
ref: 32
WASHER(6.5X18X1.5)
0916006036
€ 1.50
33
9453119C00
ref: 33
BRACKET,COWLING LWR,R
9453119C00
€ 8.00
34
9453219C00
ref: 34
BRACKET,COWLING LWR,L
9453219C00
€ 6.00
35
0932010015
ref: 35
CUSHION
0932010015
€ 2.50
36
9459019C00
ref: 36
NUT,COWLING,FR
9459019C00
€ 8.00
37-1
0113706165
ref: 37-1
MODEL N
BOLT
€ 2.50
37-2
0113706167
ref: 37-2
MODLE P
BOLT
€ 2.50
37-3
0157006163
ref: 37-3
MODEL R/S
BOLT
0157006163
€ 2.50
38
0913905025
ref: 38
SCREW(5X14)
0913905025
€ 2.00
39
0916105017
ref: 39
WASHER(5.2X14X1.5)
0916105017
€ 3.00
40
9448432B00
ref: 40
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
41
0913906029
ref: 41
SCREW(6X25)
0913906029
€ 5.00
42
0916006036
ref: 42
WASHER(6.5X18X1.5)
0916006036
€ 1.50
43
0918006116
ref: 43
SPACER(6.1X8X14.5)
0918006116
€ 2.00
44
0932009016
ref: 44
CUSHION
0932009016
€ 2.50
45
0913606081
ref: 45
SCREW(6X20)
0913606081
€ 3.00
46
0918006011
ref: 46
SPACER (6.1X9X9)
0918006011
€ 2.00
47
0932009016
ref: 47
CUSHION
0932009016
€ 2.50
48-1
0214215165
ref: 48-1
MODEL N
SCREW, LOWER
0214215165
€ 2.50
48-2
0214215168
ref: 48-2
MODEL P
SCREW, LOWER
€ 1.50
48-3
0214205163
ref: 48-3
MODEL R/S
SCREW
0214205163
€ 2.50
49
9458019C00
ref: 49
BRACKET,FR UNDER COWL
9458019C00
€ 6.50
50-1
0214205164
ref: 50-1
MODEL N
SCREW
0214205164
€ 2.50
50-2
0214205167
ref: 50-2
MODEL P
SCREW
0214205167
€ 1.50
50-3
0214205163
ref: 50-3
MODEL R/S
SCREW
0214205163
€ 2.50
51
0916105017
ref: 51
WASHER(5.2X14X1.5)
0916105017
€ 3.00
52
9448432B00
ref: 52
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
53
9463920C00
ref: 53
CUSHION,UNDER COWLING RR
9463920C00
€ 2.50
