SEAT (MODEL S)

GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

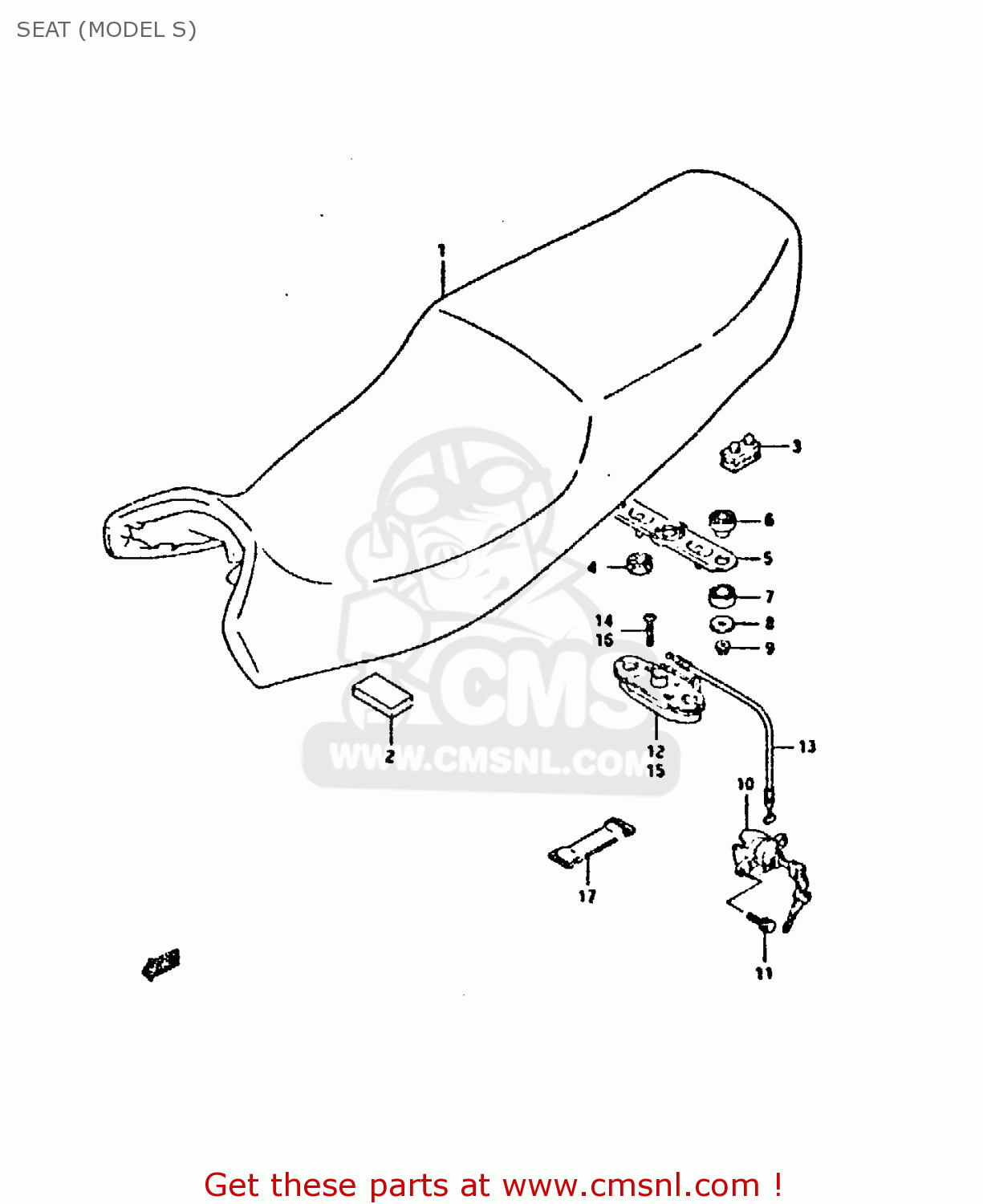

Seat (model s) diagram GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

SEAT (MODEL S) GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
SEAT (MODEL S) GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
SEAT (MODEL S) GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510020C2158R
ref: 1-1
FOR 19A
SEAT ASSY
€ 391.50
1-2
4510020C216WT
ref: 1-2
FOR 33J
SEAT SET
€ 289.00
2
9498229400
ref: 2
CUSHION(30X60X10)
9498229400
€ 1.50
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
4
4521313601
ref: 4
CUSHION,SEAT LOCK(10X22X6)
4521313601
€ 1.50
5
4521048B20
ref: 5
STRIKER,SEAT LOCK
4521048B20
€ 14.50
6
0932010038
ref: 6
CUSHION
0932010038
€ 4.00
7
0932014017
ref: 7
CUSHION
0932014017
€ 3.00
8
0821206201
ref: 8
WASHER
0821206201
€ 1.50
9
0831620063
ref: 9
NUT
0831620063
€ 2.00
10
4570019840
ref: 10
LOCK SET,SEAT
4570019840
€ 59.50
11
0157006163
ref: 11
BOLT
0157006163
€ 2.50
12
4522020A01
ref: 12
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
13
4528020C00
ref: 13
CABLE,SEAT LOCK
4528020C00
€ 13.00
14
0212206303
ref: 14
SCREW
0212206303
€ 2.00
15
4522006C00
ref: 15
BRACKET,SEAT SUPPORT FR
€ 29.00
16
0212206203
ref: 16
SCREW
0212206203
€ 2.00
17
0946200034
ref: 17
BAND
0946200034
€ 4.50
10
0821206201
ref: 10
WASHER
0821206201
€ 1.50
11
0831620063
ref: 11
NUT
0831620063
€ 2.00
12-1
4570019C00KEY
ref: 12-1
MODEL K/L
LOCK SET,SEAT
4570019C00KEY
€ 59.50
12-2
4570019840
ref: 12-2
MODEL M/N/P/R
LOCK SET,SEAT
4570019840
€ 59.50
13-1
0113706165
ref: 13-1
MODEL K/L/M/N
BOLT
€ 2.50
13-2
0157006167
ref: 13-2
MODEL P/R
BOLT
0157006167
€ 2.50
14-1
4522020A00
ref: 14-1
MODEL K/L/M/N
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
14-2
4522020A01
ref: 14-2
MODEL P/R
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
15
4528020C00
ref: 15
CABLE,SEAT LOCK
4528020C00
€ 13.00
16-1
0212206305
ref: 16-1
MODEL K/L/M/N/P
SCREW
€ 2.00
16-2
0212206303
ref: 16-2
MODEL R
SCREW
0212206303
€ 2.00
17
4522006C00
ref: 17
MODEL P/R
BRACKET,SEAT SUPPORT FR
€ 29.00
18
0212206203
ref: 18
MODEL P/R
SCREW
0212206203
€ 2.00
19
1196782000
ref: 19
E2
LABEL,ASBESTOS WARNING
€ 2.00
